H.2.2 CDM-760 CID Configuration – Front Panel Operation
See Chapter 6. FRONT PANEL OPERATION for in-depth information about the
function and operation of the CDM-760 front panel.
Feature Description Function
Chapter 6
Sect.
1 LED Indicators The LEDs indicate, in a summary fashion, the status of the modem. 6.1.1
2 Keypad
The keypad comprises six individual keyswitches. The keys have a
positive ‘click’ action that provides tactile feedback. Enter data via the
keypad. Data, prompts, and messages are displayed on the VFD.
6.1.2
3
Vacuum
Fluorescent
Display (VFD)
The VFD is an active display showing two lines of 24 characters each.
It produces a blue light with adjustable brightness. Nested menus
display all available options and prompt you to carry out a required
action.
6.1.3

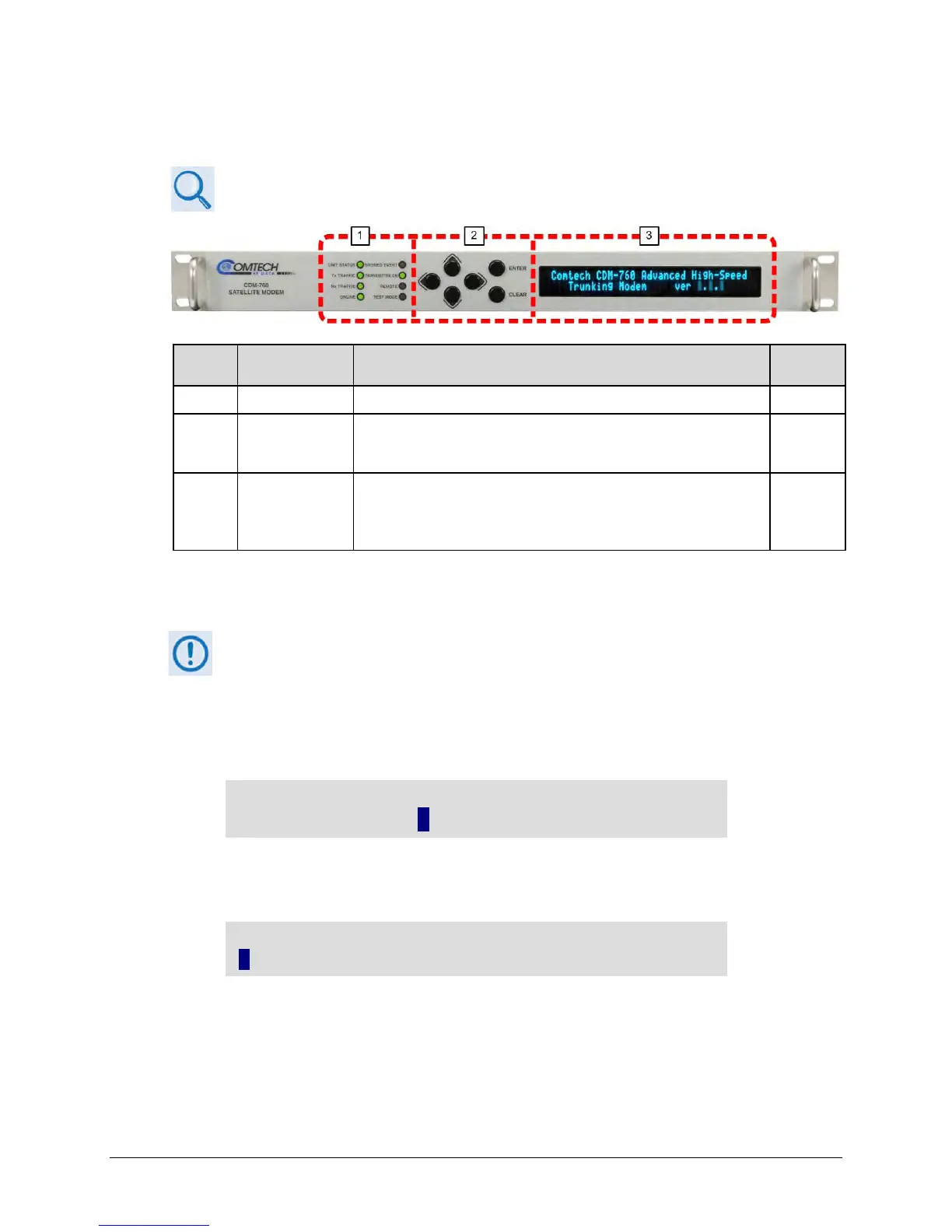

Figure H-1. CDM-760 Front Panel Features
Do these steps:
Typical for all screens, the flashing solid block indicates the cursor position.
1. Access the CDM-760 front panel Carrier ID operations screen:
a. From the front panel main (SELECT:) menu, use the
◄ ►arrow keys to select the Utility
menu branch. Press ENTER to proceed:
SELECT: Configuration Monitor Test
Store/Ld Utility ODU FAST ()
b. From the Utilities: screen, use the
◄ ► arrow keys to select CID. Press ENTER to
proceed:
Utilities: Set-RTC Display EventLog
UID LED 1:1 1:N Circuit-ID Firmware
2. On the top line of the CID screen, use the  arrow keys to set the modem’s physical
location in latitude and longitude:
a. Use the   arrow keys to navigate to Lat. Press ENTER to proceed. The cursor jumps to
the first alphanumeric character to edit:
