C.2 Optional PIIC Modules
C.2.1 G.703 E3/T3/STS-1 PIIC Module (CEFD P/N PL-0000795)

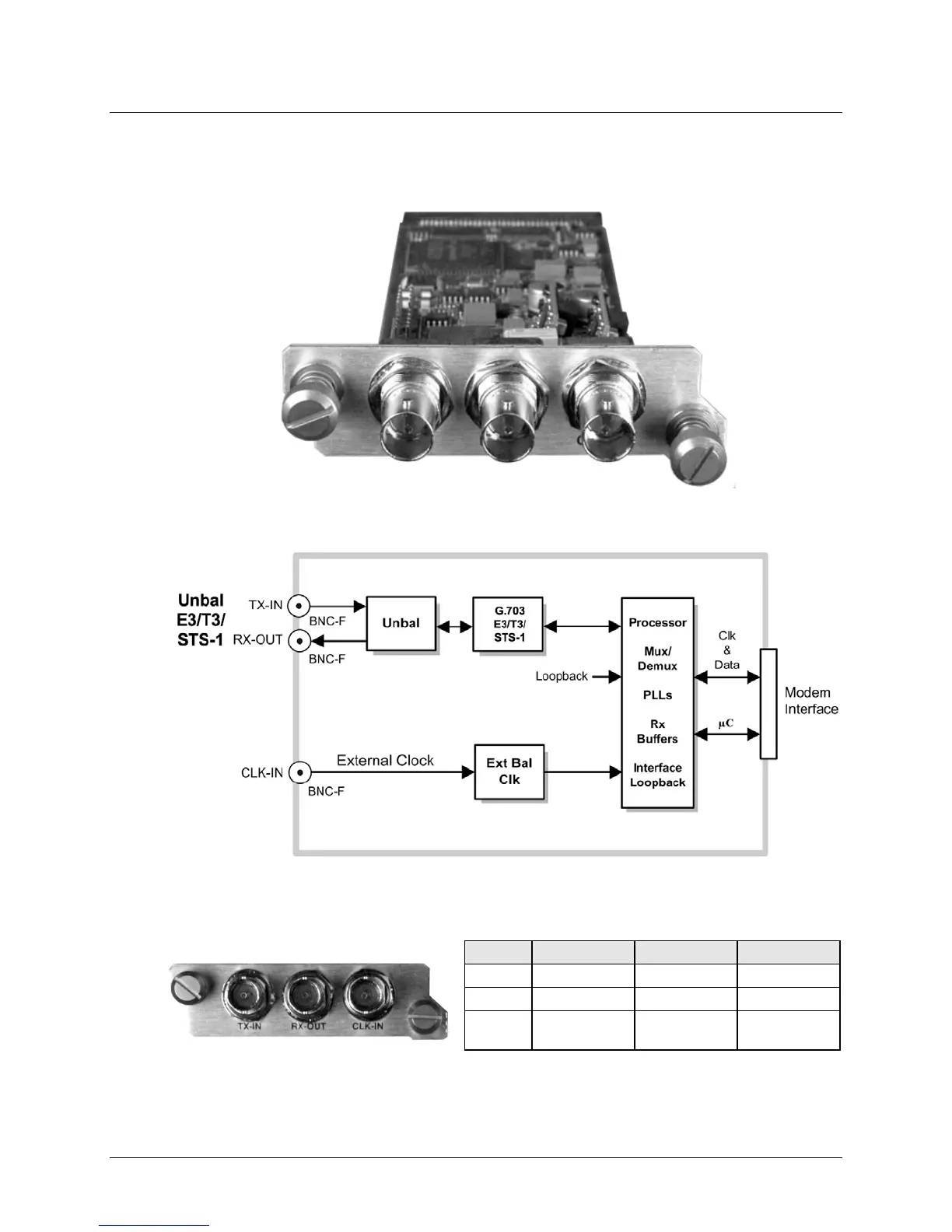

Figure C-3. G.703 E3/T3/STS-1 PIIC Module
Figure C-4. G.703 E3/T3/STS-1 PIIC Module Block Diagram
Name
Connector Type
Description
Direction (I/O)
TX-IN
BNC
Data In
I
RX-OUT
BNC
Data Out
O
CLK-IN BNC
External Clock
Input
I
Figure C-5. G.703 E3/T3/STS-1 PIIC Module Panel Connectors
