7.4.4.4.6.6 Status | Traffic Statistics | WAN
Use this page to review the activity on the CDM-760 between various FPGAs and the Packet
Processor. These item are used primarily for debugging internal modem routing and traffic flow
issues.

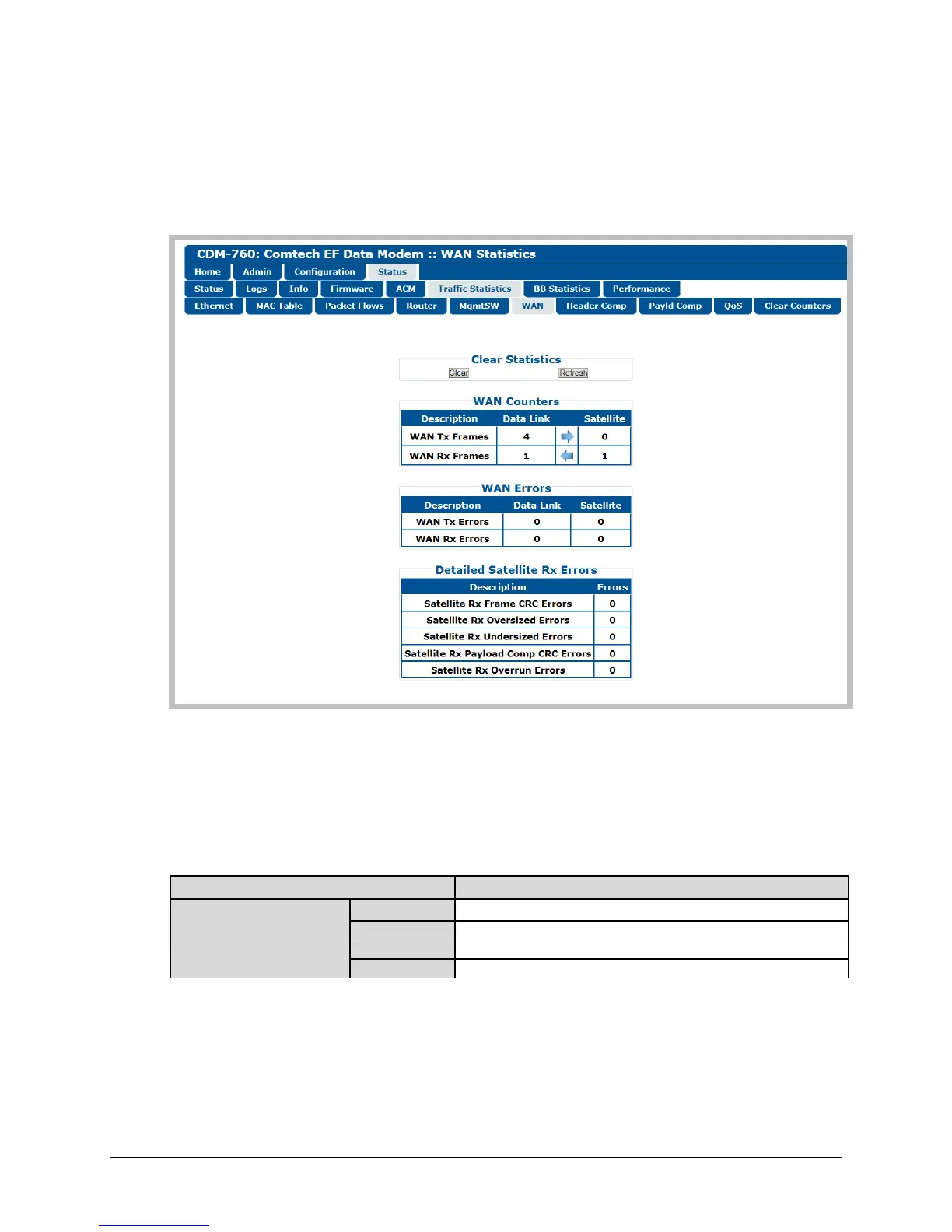

Figure 7-40. Status | Traffic Statistics | WAN Page
Clear Statistics
• Click [Clear] to clear/reset the WAN statistics buffers.
• Click [Refresh] to update the page with the latest available statistics.
WAN Counters
Item
Description
WAN Tx Frames (packets)
Data Link
Packets from Packet Processor to Packet Processor FPGA.
Satellite
Packets from Packet Processor FPGA to framer FPGA.
WAN Tx Frames (packets)
Data Link
Packets from Packet Processor FPGA to Packet Processor.
Satellite
Packets from framer FPGA to Packet Processor FPGA.
