3.2.3.4 Optional High-Speed Packet Processor Connections
Appendix F. OPTIONAL HIGH-SPEED PACKET PROCESSOR

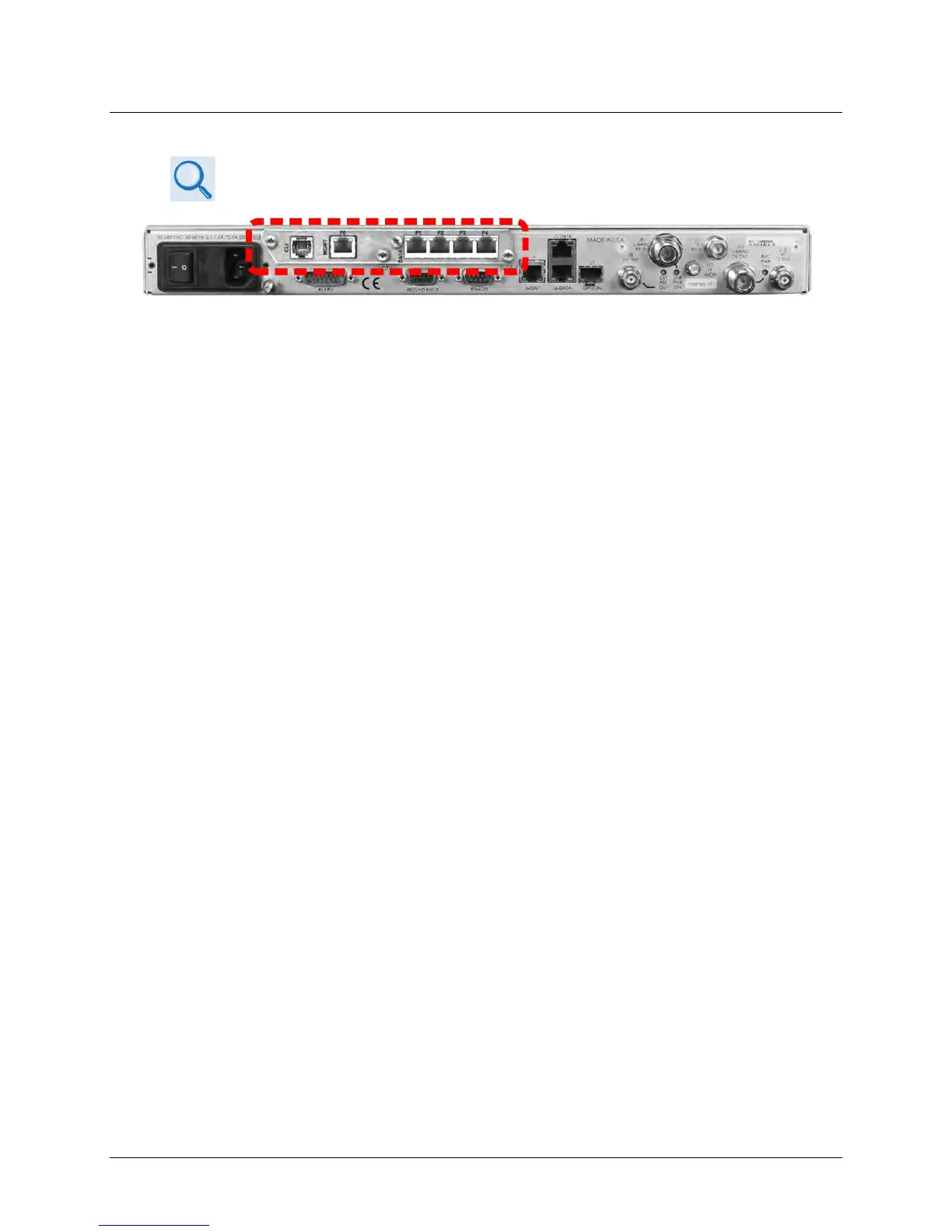

Figure 3-7. Optional High-Speed Packet Processor
You may order the CDM-760 factory-equipped with the optional High-Speed Packet Processor
card. It is also available as a field upgrade using CEFD Kit KT-0020958. The card installs into the
modem rear panel chassis space otherwise occupied by the PIICs (Figure 3-7). This option
provides (from left):
• (1X) CLI (Command Line Interface) RJ-11 port for implementing factory commands.
• (1X) P0 | MGMT RJ-45 Gigabit Ethernet routed interface/management port.
• (4X) P1 | DATA through P4 | DATA RJ-45 Gigabit Ethernet bridged interface ports.
