Appendix F Revision 4
CDM-760 Advanced High-Speed Trunking Modem MN-CDM760
F–12
F.2.3 CDM-760 Configuration – HTTP (Web Server) Interface
See Chapter 7. ETHERNET INTERFACE OPERATION for in-depth information about
the function and operation of the CDM-760 HTTP Interface.
YOU MAY PROCEED WITH ETHERNET-BASED REMOTE PRODUCT MANAGEMENT
(WEB SERVER OR SNMP) UNDER THE ASSUMPTIONS THAT:
• The CDM-760 is operating with the latest version firmware files.
• The CDM-760 is connected to a user-supplied, Windows-based PC, and:
o The PC Ethernet port is connected to the High-Speed Packet Processor P0 |
MGMT RJ-45 10/100/1000 BaseT Ethernet port with a user-supplied hub,
switch, or direct Ethernet cable connection.
o The User PC is running a compatible web browser (for operation of the
HTTP Interface).
• The CDM-760 Management IP Address has been noted using the CDM-760
Serial Interface or CDM-760 Front Panel.

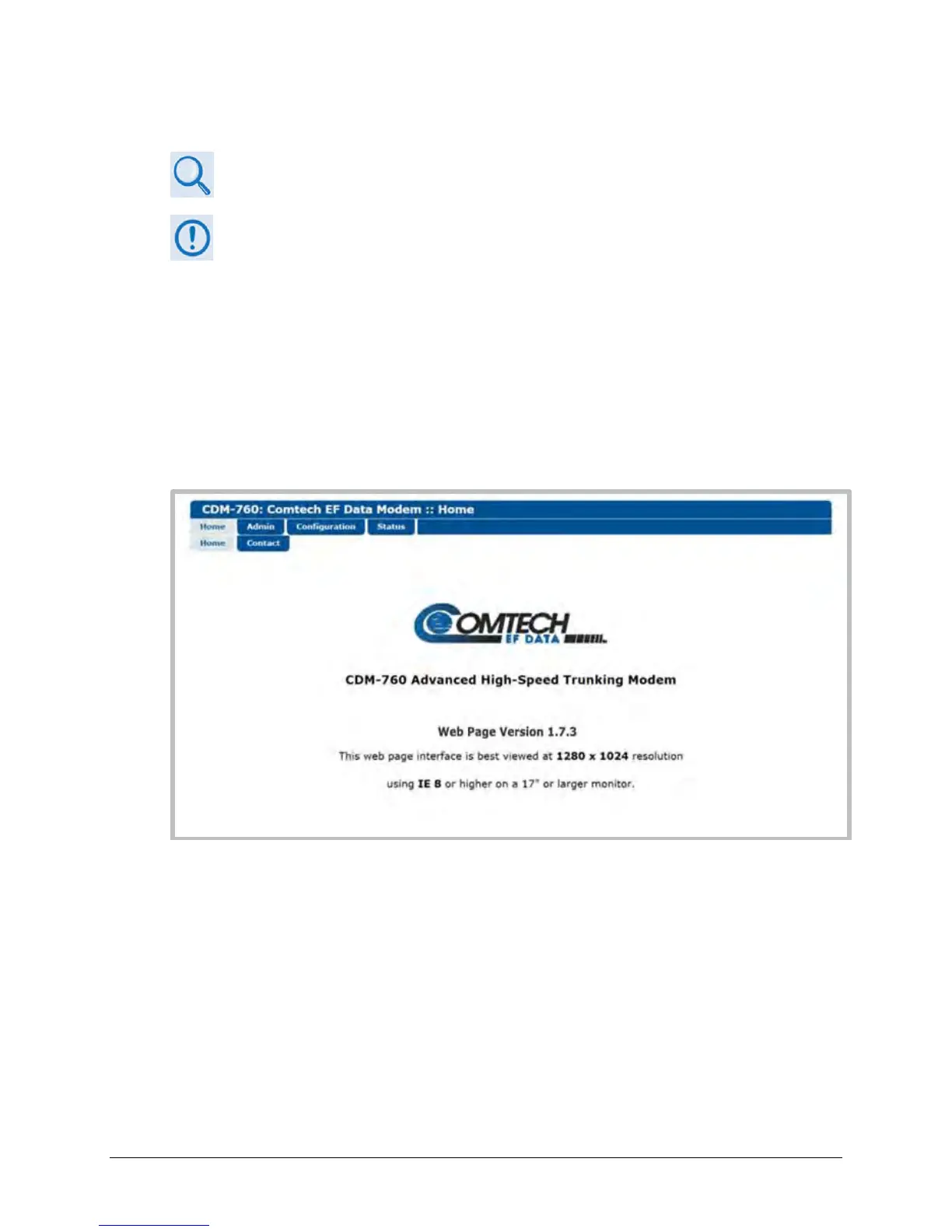

Figure F-3. CDM-760 HTTP (Web Server) Interface Example (Home Page Shown)
