Comtech EF Data CDM-760 - Copper PIIC Module Kit (CEFD P;N KT-0000255

Appendix C Revision 4
CDM-760 Advanced High-Speed Trunking Modem MN-CDM760
C–7
C.2.3 STM-1 Copper PIIC Module Kit (CEFD P/N KT-0000255)
KT-000255 STM-1 Copper PIIC Module Kit
ITEM
QTY
CEFD P/N
DESCRIPTION
1
1
PL-0001067
PIIC Module
2
1
IC-0000686
SFP STM-1 155 Mbps Copper Transceiver Module
3
1
CA-0000967
Cable Assembly (NOT SHOWN)

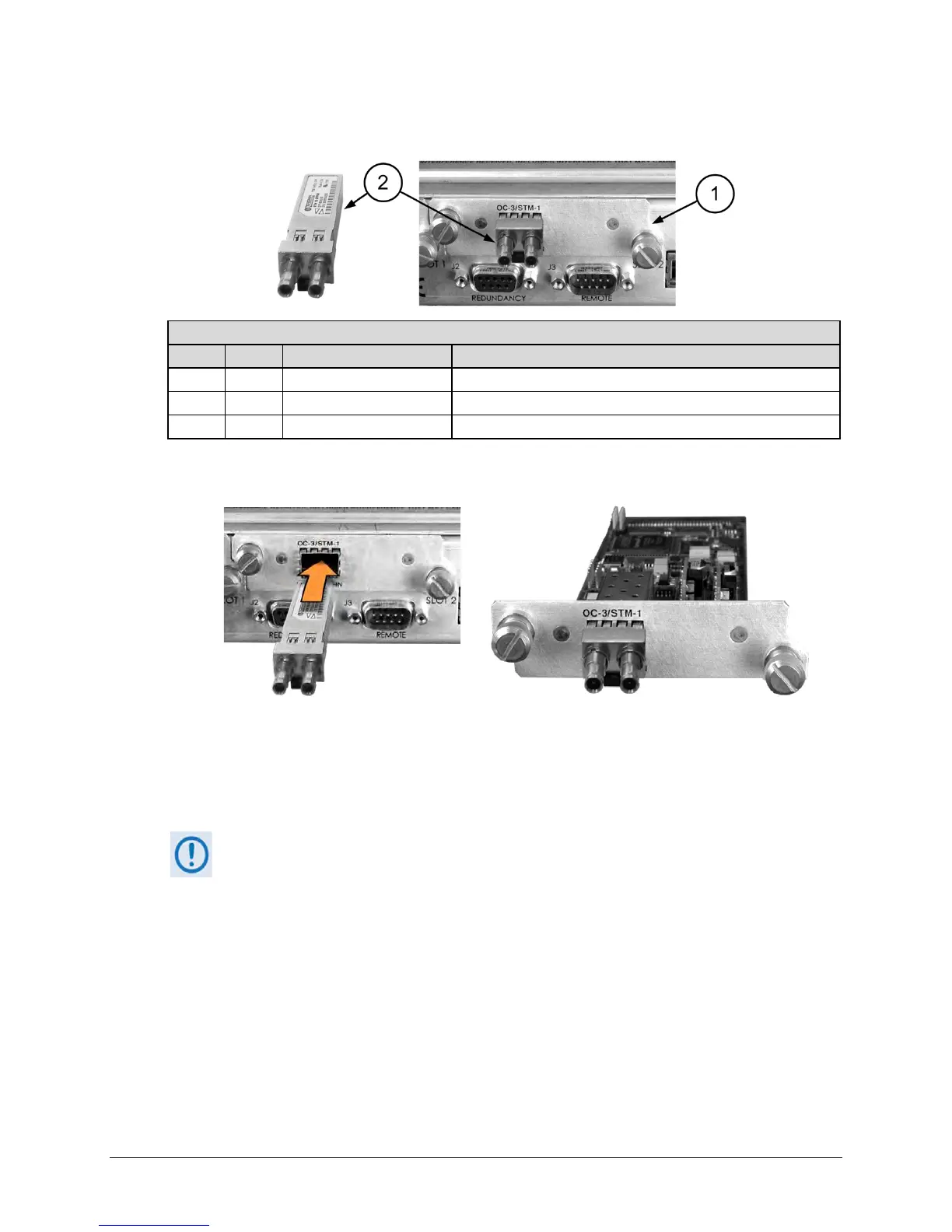

Figure C-8. STM-1 Copper PIIC Module Kit (CEFD P/N KT-0000255)
Figure C-9. STM-1 Copper PIIC Module – SFP Installation
Use the STM-1 Copper PIIC module in either of the CDM-760 rear panel interface option slots.
The PIIC module features an SFP (Small Form Factor Pluggable) docking cage that accepts the
Comtech EF Data SFP STM-1 transceiver module (Figure C-7).
User-supplied standard modules (SFP Multi-Source Agreement (MSA) SFF-8074i and
SFF-8472 Rev. 9.3) may be used, but Comtech EF Data does not guarantee
interoperability.
See Figure C-2 for installation of a PIIC module into an available PIIC interface slot.
