7.4.4.4.6.5 Status | Traffic Statistics | MgmtSW (Managed Switch)
Use this page to review the overall packet count transmitted and received by the LAN (Managed
Switch DATA ports P1 through P4) and the WAN (P0 | MGMT).

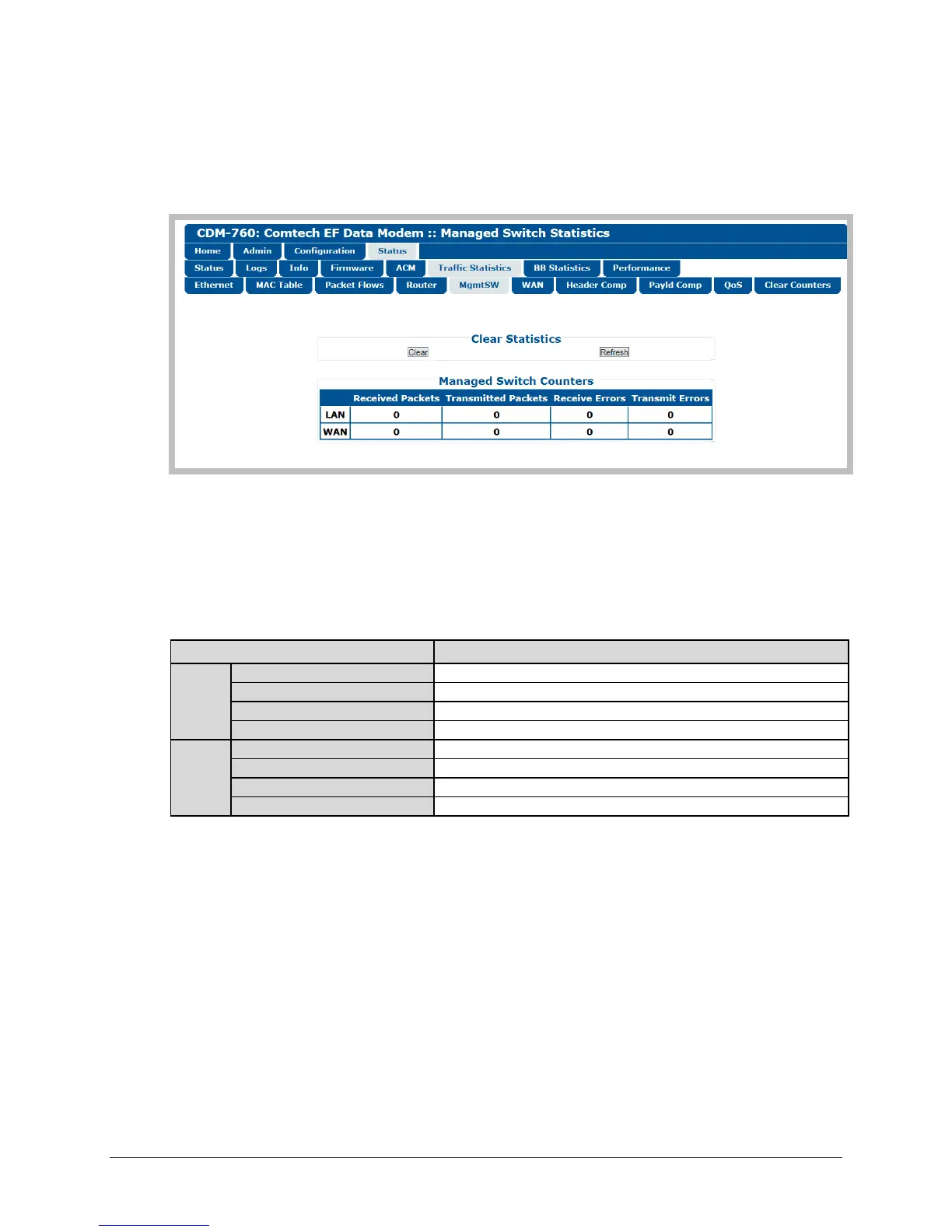

Figure 7-39. Status | Traffic Statistics | MgmtSW Page
Clear Statistics
• Click [Clear] to clear/reset the Managed Switch statistics buffers.
• Click [Refresh] to update the page with the latest available statistics.
Managed Switch Counters
Item Description
LAN
Received Packets
Total number of packets from the LAN to ports (P1 – P4).
Transmitted Packets
Total number of packets from ports (P1 – P4) to the LAN.
Receive Errors
Total number of packets received on ports (P1 – P4) in error.
Transmit Errors
Total number of packets sent on (P1 – P4) in error.
WAN
Received Packets
Total number of packets received from the WAN.
Transmitted Packets
Total number of packets transmitted to the WAN.
Receive Errors
Total number of packets sent over the WAN in error.
Transmit Errors
Total number of packets sent over the WAN in error.
