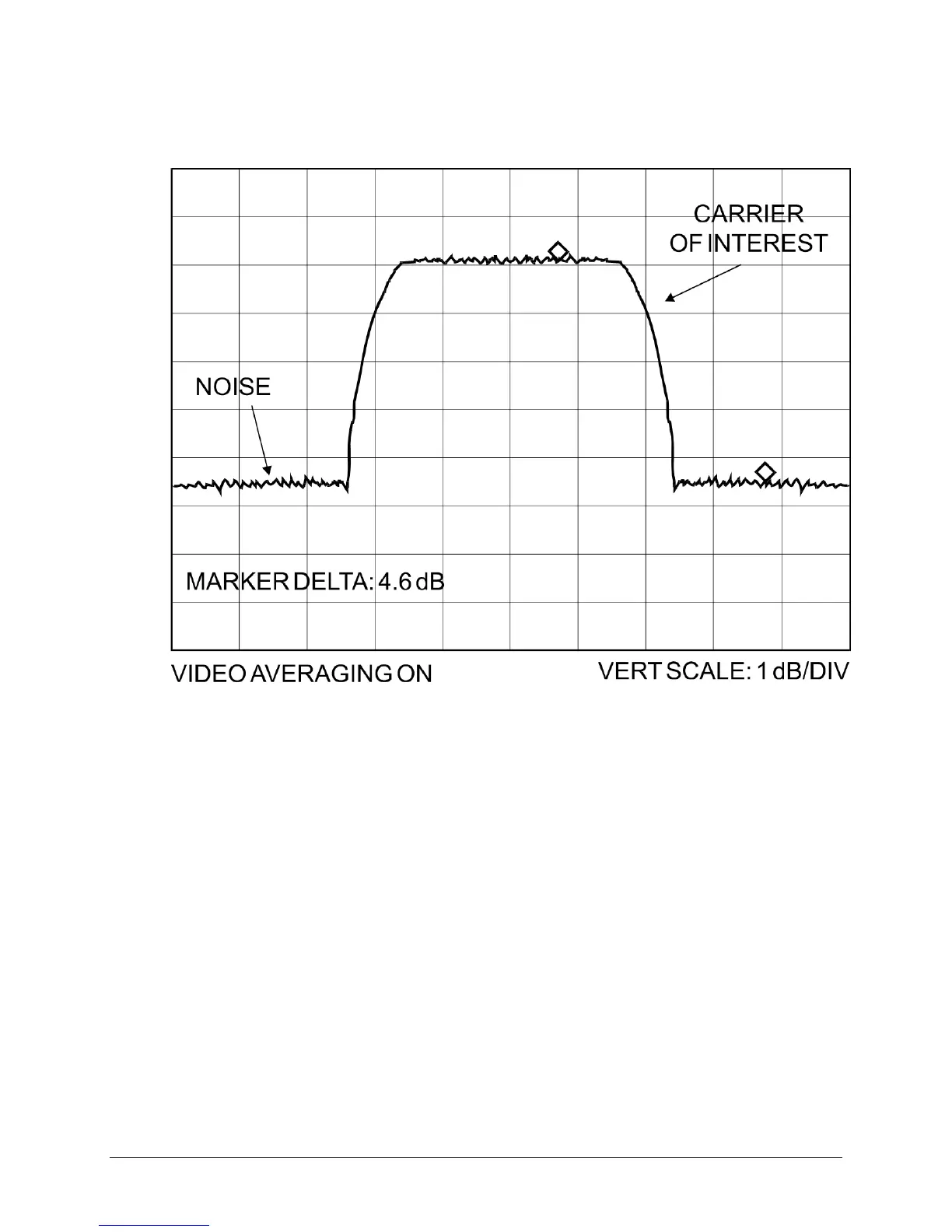

Example: In the diagram that follows, the (Co+No)/No measured is 4.6 dB. If Rate 1/2 QPSK is
used, this corresponds to an Es/No of approximately 2.8 dB (DVB-S2).
The relationship used to derive the table values (the only simple way for DVB-S2) is as follows:
Es/No = C/N = 10log
10
(10
((Co + No)/ 10)
-1)
where:
Es/No and(Co+No)/No are expressed in dB.
