Ø Pull the HDD drawer unit out carefully.

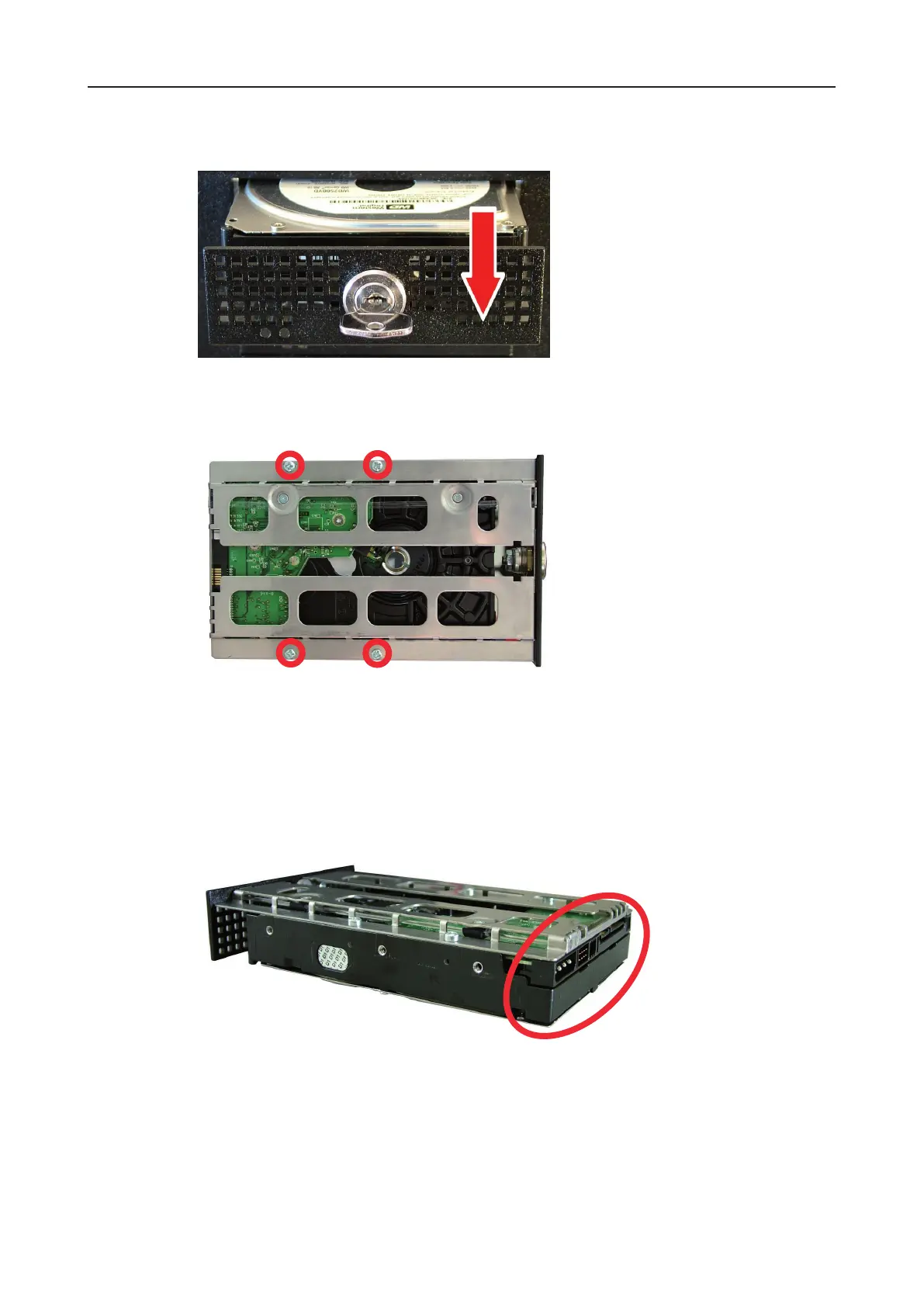

Fig. 20-3: Remove the HDD drawer unit
Ø Undo the 4 screws on the underside of the HDD drawer unit.
Fig. 20-4: Screws loosen
Ø Remove the defective HDD.
Ø Secure the HDD drawer unit to the new HDD.
Ø Use only the original screws supplied.
Ø Ensure that the HDD and HDD drawer unit are ush at the rear.
Fig. 20-5: Flush connection
