Ø Insert the HDD drawer unit into the guide rail.

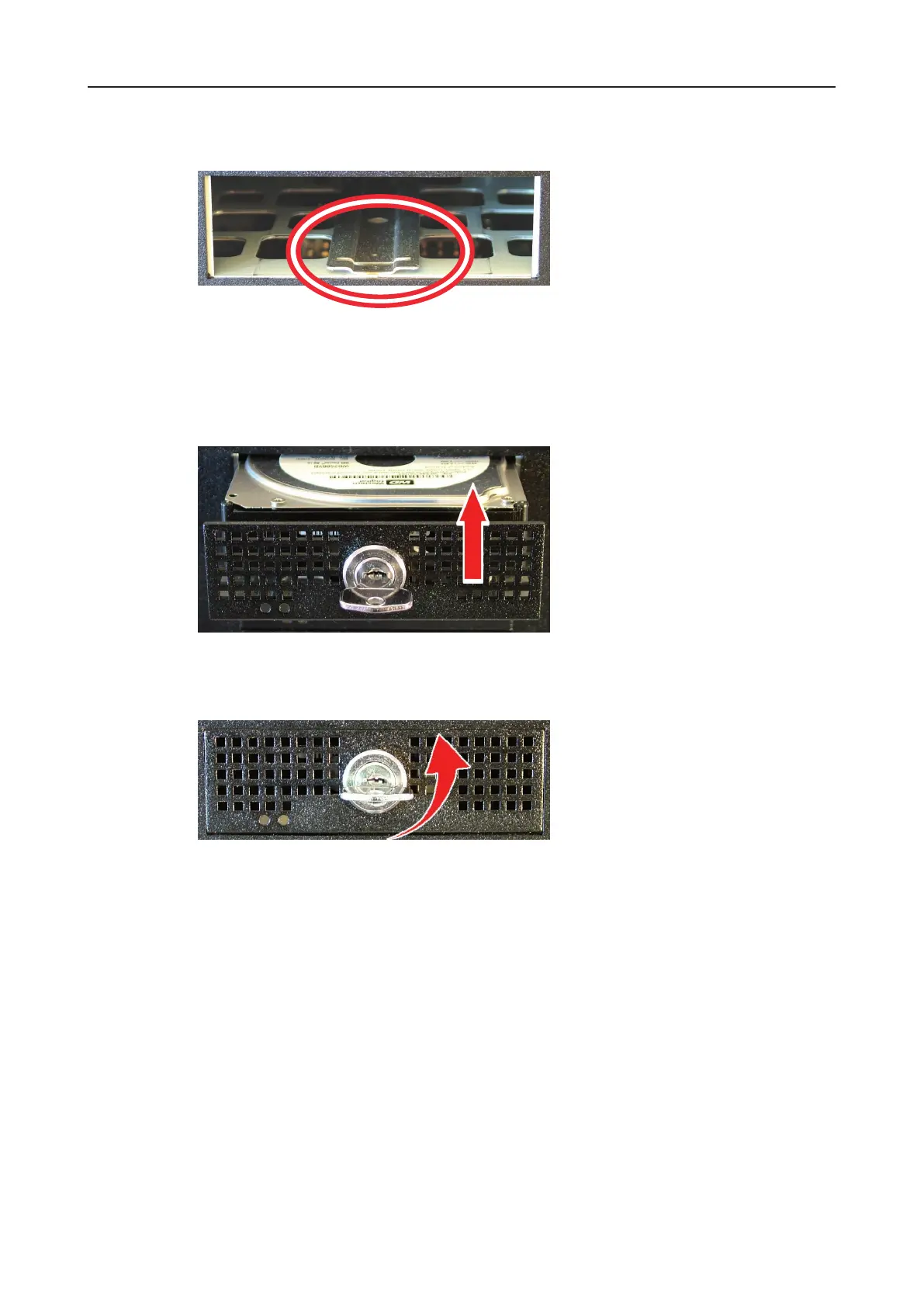

Fig. 20-6: Guide rail
Ø Slide the HDD drawer unit carefully into the housing.
Ø Ensure that you slide it straight.
Ø Do not use any force.
Fig. 20-7: Close the HDD drawer unit
Ø Lock the HDD drawer unit using the wrench.
Fig. 20-8: Lock the HDD drawer unit
Ø The front cover on the HDD drawer unit must be ush with the edge of the housing.
Ø Reconnect the mains plug.
Ø Start the recorder.
If you have satised all the conditions, the HDD will be initialized when the recorder is started.
After this it will be ready for use and the recording process will continue.
