BARCODE SETTINGS TABLE
PRODUCT REFERENCE GUIDE
113
Code n Definition
Enable
Select the Enable check box to activate the selected barcode. De-select the Enable check box
to disable the selected barcode. When the check box has been selected, configuration and
code type options are displayed.

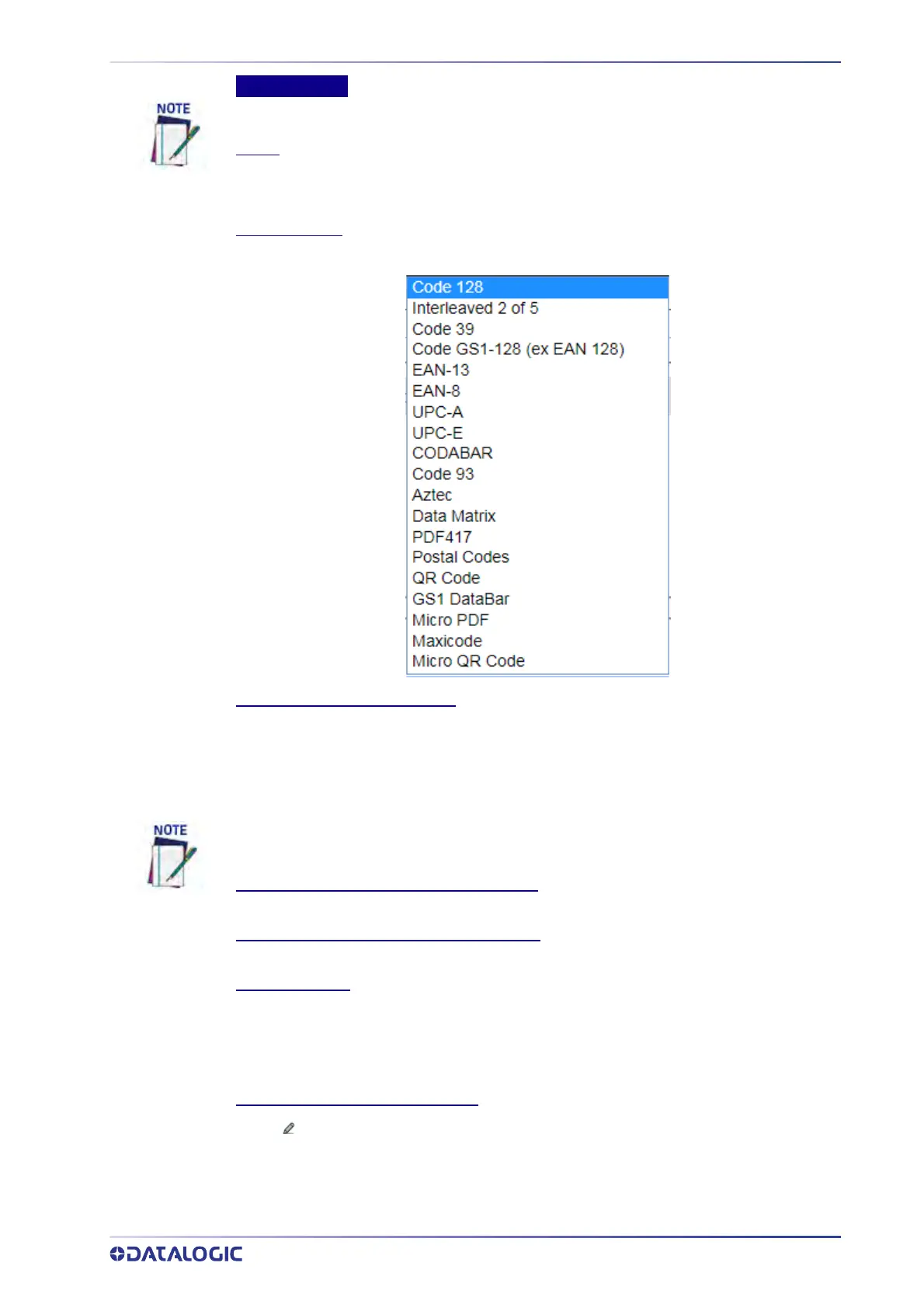

Code Symbology
Select a barcode symbology from those available in the Code Symbology drop-down list.
Add On (EAN and UPC Codes only)
Select No Add On, 2 digits Add On, or 5 digits Add On from the Add On drop-down list.
No Add On
2 digits Add On:
Adds this many digits as a supplement to the barcode
5 digits Add On: Adds this many digits as a supplement to the barcode
Minimum Length (Not shown on EAN and UPC)
Enter the minimum character length for the selected barcode.
Maximum Length (Not shown on EAN and UPC)
Enter the maximum character length for the selected barcode.
Match String Rule
Select Disable, Match, or Do Not Match from the drop-down list. This parameter defines the
matching rule, according to which a code can be transmitted.
•
Match: All codes matching the Pattern Match String will be transmitted
•
Do Not Match: All codes not matching the Pattern Match String will be transmitted
Pattern Match String (max. 200 chars)
Click to activate the “The Text Entry Tool” on page 81 and create a pattern match string.
A Pattern Match String allows the user to check for a sequence of characters in a group of
barcodes. The string can be made up of a sequence of alpha numeric characters combined with
Regular Expression Syntax.
The regular expression algorithms allow checking for conditional barcode information based
Input fields will vary depending on the selected symbology
EAN is the acronym for International Article Number, previously known as European
Article Number.
