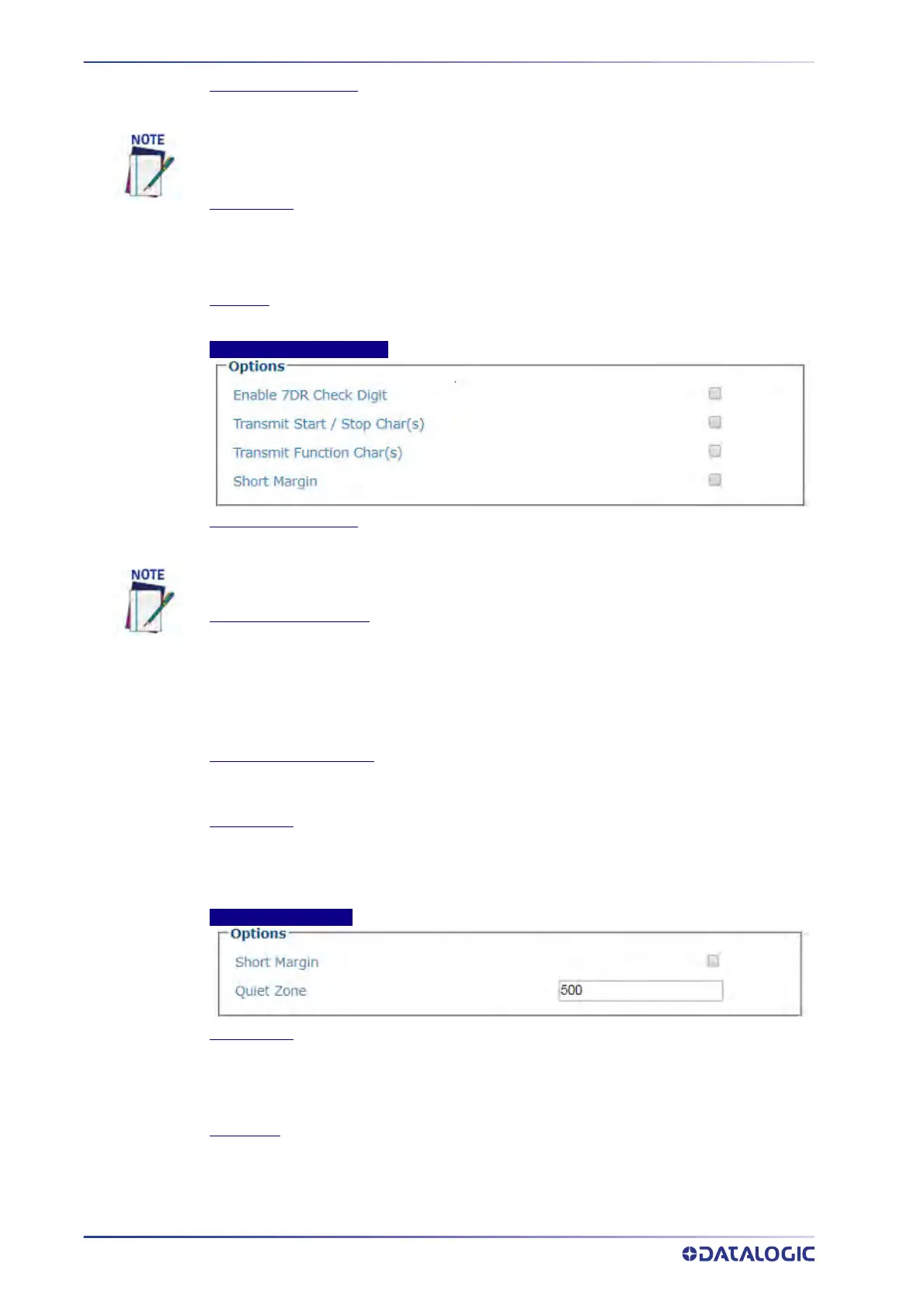

116 AV500/AV900 2D CAMERA
Enable 7DR Check Digit
Select the check box to enable 7DR Check Digit.
Short Margin
Select the check box to enable. Available for Code 128, Code GS1-128, Interleaved 2 of 5, Code
39, Code GS1-128, EAN, UPC, CODABAR, and Code 39. This options allows the bar code to have
an illegal quiet zone on one side of the bar code. If selected this could increase the processing
time.
Full ASCII
Select the check box to enable full ASCII. This pertains to Code 39 only.
Code GS1-128 (ex EAN 128)
Enable 7DR Check Digit
Select the check box to enable 7DR Check Digit.
Transmit Start/Stop Char
Select Disabled, Lower Case, or Upper Case from the drop-down list. This parameter is
available only for Codabar code symbologies. It allows transmitting the code start character:
•
Disabled: The character is not selected;
•
Lower Case: The character is transmitted in lower case;
•
Upper Case: The character is transmitted in upper case.
Transmit Function Char(s)
Select the check box to enable transmission of functional characters. A functional character is a
non-printable character that is found in the GS1 bar code.
Short Margin
Select the check box to enable. Available for Code 128, Code GS1-128, Interleaved 2 of 5, Code
39, Code GS1-128, EAN, UPC, CODABAR, and Code 39. This options allows the bar code to have
an illegal quiet zone on one side of the bar code. If selected this could increase the processing
time.
EAN-13, EAN-8, UPC-A
Short Margin
Select the check box to enable. Available for Code 128, Code GS1-128, Interleaved 2 of 5, Code
39, Code GS1-128, EAN, UPC, CODABAR, and Code 39. This options allows the bar code to have
an illegal quiet zone on one side of the bar code. If selected this could increase the processing
time.
Quiet Zone
Specify the quiet zone in the field provided. This defines the minimum quiet zone (white
margins) measured in narrowest module width. This option may be symbology dependent. The
quiet zone is expressed as a percentage of module, 500 = 500% of the module = 5 times the
module.
The 7DR Check Digit is not use with all code symbologies.
The 7DR Check Digit is not use with all code symbologies.
