DEVICE SETTINGS | CAMERA #N | MOUNTING
PRODUCT REFERENCE GUIDE 175
installations according to the code reading on the conveyor: Top, Right, Left, etc. This
parameter acts on the software reading algorithms and on the position and height sensors
configuration.
Vertical Inversion
Select Disable or Enable from the drop-down list.
This parameter (when enabled) allows inverting or mirroring the image sent by the camera.
This function is used to set the object movement with respect to the camera mounting position
(i.e. camera position = Top Back). It is used to change a reversed (mirrored) image to proper
orientation for OCR applications or video coding.
Horizontal Inversion
Select Disable or Enable from the drop-down list.
This parameter (when enabled) allows inverting or mirroring the image sent by the camera.
This function is used to set the object movement with respect to the camera mounting position
(i.e. camera position = Top Back). It is used to change a reversed (mirrored) image to proper
orientation for OCR applications or video coding.
Left/Right Offset (Y)
Enter the camera offset from the Y-axis (across the conveyor). 0 = centered on Y. This defines
the center of the cropped image.

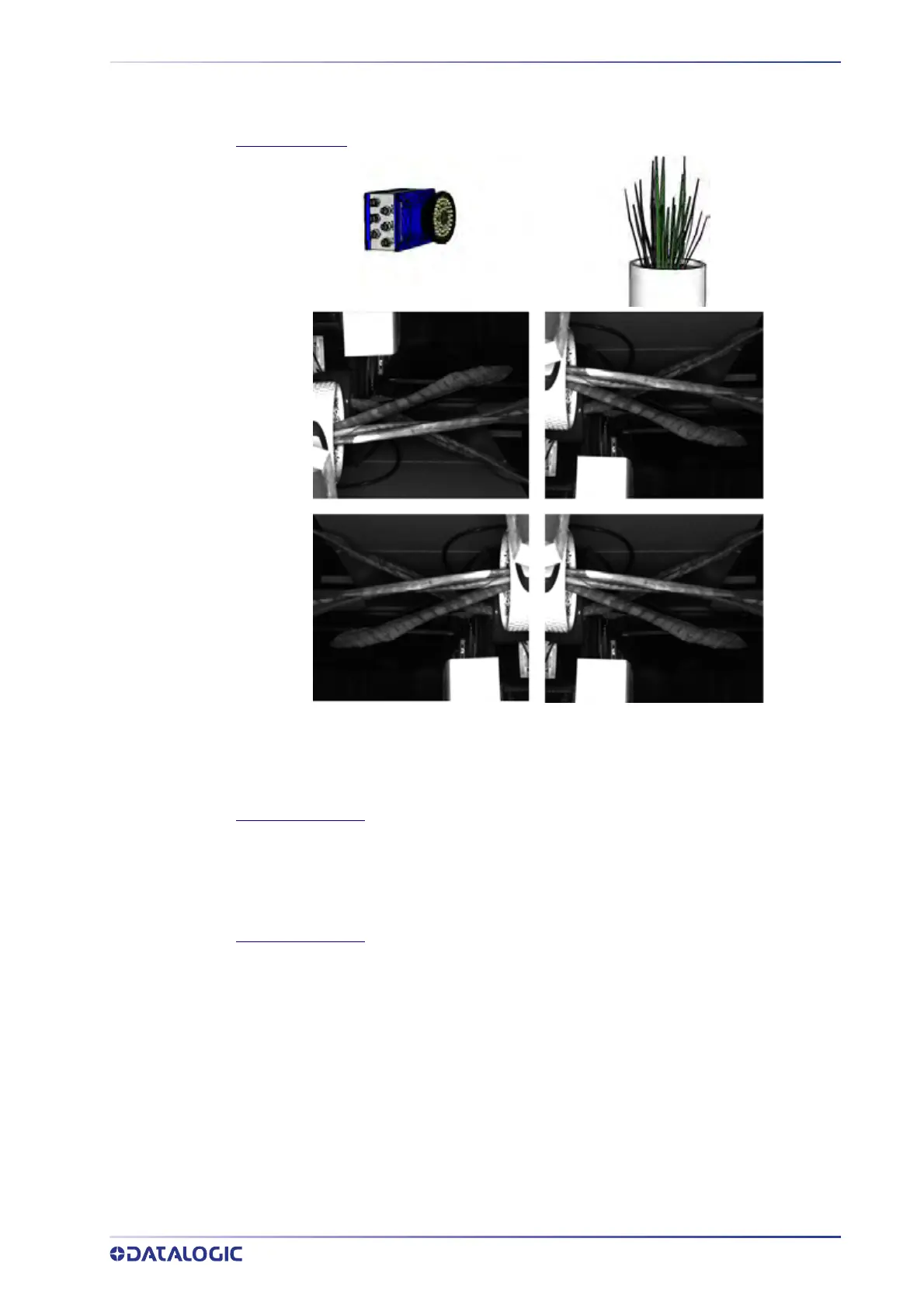

Camera in Relation to Plant
Vertical Inversion Disabled
Vertical Inversion Enabled
Horizontal Inversion Disabled
Horizontal Inversion Enabled
