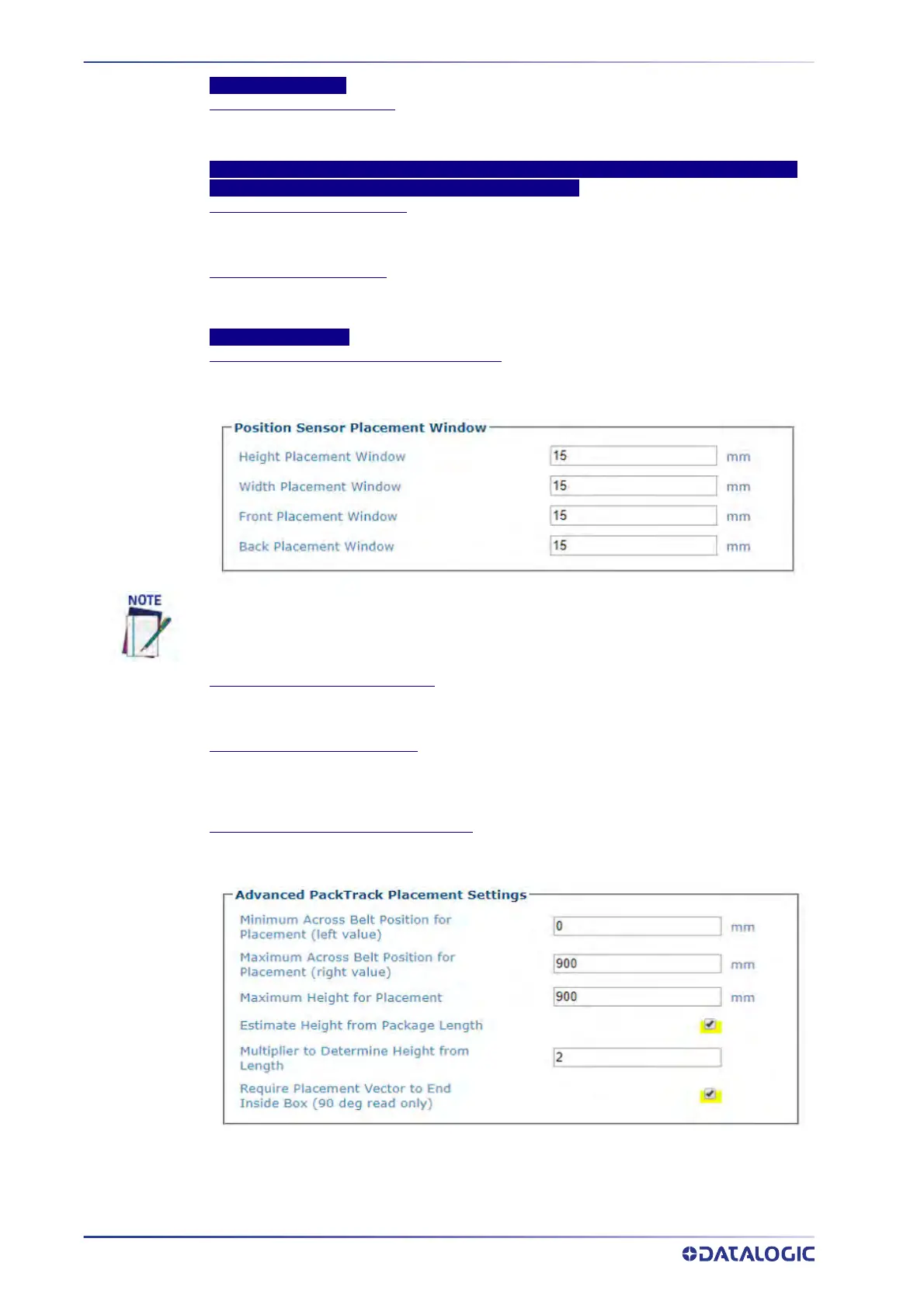

176 AV500/AV900 2D CAMERA
PackTrack Calibration
PackTrack Calibration Wizard
Click to open the PackTrack Calibration Wizard (see “PackTrack Calibration Wizard” on
page 179). This is used during initial calibration only.
Calibration Parameters (these are automatically completed when the PackTrack Calibration
Wizard has been run). These parameters are not editable.
Near/Far Calibration Complete
Indicates whether the Mounting Wizard was successfully executed to learn the PackTrack
Calibration.
Near/Far Calibration Height
Indicates the height (or offset from the far working distance) where the Mounting Wizard
learned the PackTrack Calibration.
PackTrack Parameters
Use Position Sensor Data for Label Placement
Click the check-box to enable the use of Position Sensor Data for PackTrack Label Placement
and several parameters are revealed.
When “Use Position Sensor Data for Label Placement” is Enabled, you define an “extra
window” around the box dimensions for PackTrack label assignment.
Height / Width Placement Window
Enter an amount of mm or inches that define the extra window around box dimensions for
PackTrack label assignment.
Front / Back Placement WIndow
Enter an amount of mm or inches that define the extra window applied at the front and back of
the package for PackTrack label assignment. These are similar to the “extends” that can be
applied when not using Position Sensor Data.
Used Advanced Label Placement Settings
Click the check-box to enable Advanced Label Placement Settings and several other parameters
are revealed.
This option is only available if a position sensor has been selected in Operating Mode.
