DEVICE SETTINGS | CAMERA #N | IMAGING
PRODUCT REFERENCE GUIDE
187

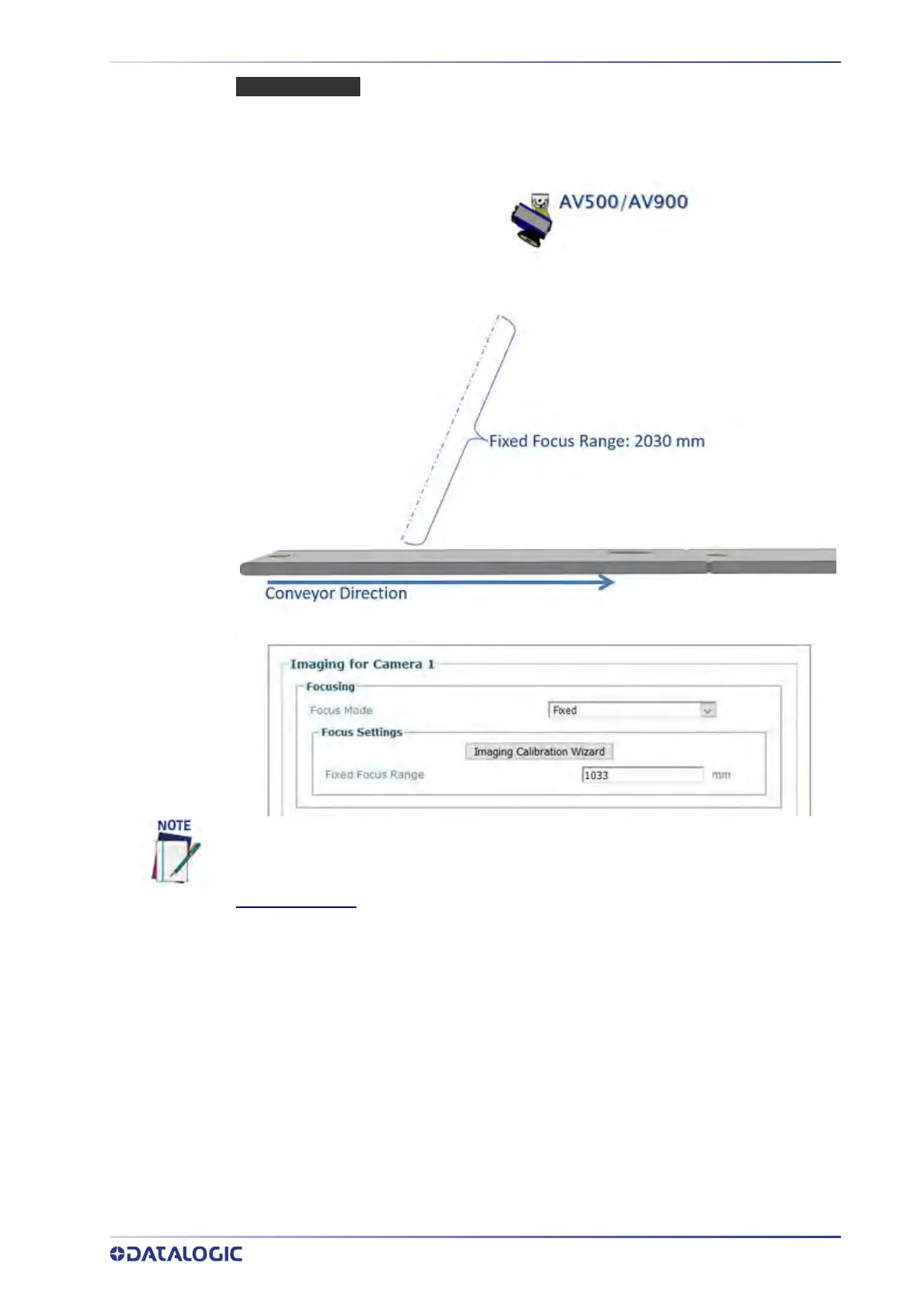

FIXED FOCUS MODE
When Fixed Focus mode is selected, enter the fixed focus range in the field provided. This
parameter indicates the fixed focus range used when a position sensor is not used. The
possible values are from the minimum to the far range.
Fixed Focus Range
This distance must be less than the Far Working Distance set in the Device
settings>camera>mounting>Mounting Calibration Wizard parameters.
The Depth Of Field (DOF) is dependent on the x dimension of the bar code (the narrow-
est part of a barcode's symbology). The camera focus should be set to the middle of the
application’s DOF.
