AH500 Module Manual
4-28

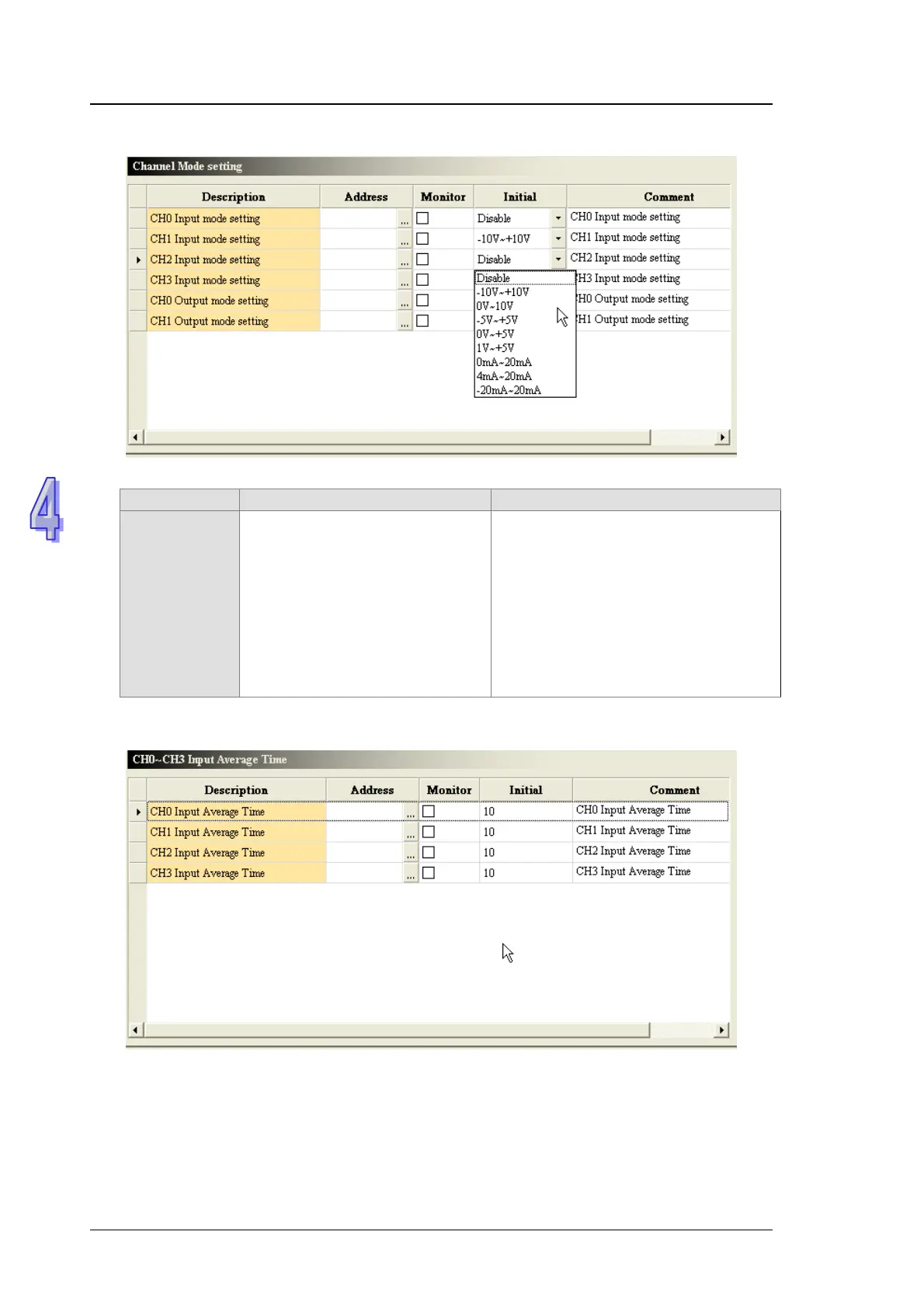

(1) The input modes of the channels, and the output modes of the channels
AH06XA-5A Input channel Output channel
Description
0: The channel is disabled.
1: -10 V~10 V
2: 0 V~10 V
3: -5 V~5 V
4: 0 V~5 V
5: 1 V~5 V
6: 0 mA ~20 mA
7: 4 mA~20 mA
8: -20 mA~20 mA
0: The channel is disabled.
1: -10 V~10 V
2: 0 V~10 V
3: -5 V~5 V
4: 0 V~5 V
5: 1 V~5 V
6: 0 mA~20 mA
7: 4 mA~20 mA
(2) The number of values averaged
