Delta AH500 - Dimensions of AH04 HC-5 A; Specifications for AH04 HC-5 A

AH500 Module Manual
7-4
Item Specifications
Type
General count
Circular count
RESET input
Input
(differential
signal)
CH0: X0.0+ and X0.0-
CH1: X0.1+ and X0.1-
Signal level
5~24 V DC
Maximum
current
15 mA
Comparison
output
Output type
Channel 0: The high-speed pulse output Y0.8 is a transistor
whose collector is an open collector.
Channel 1: The high-speed pulse output Y0.9 is a transistor
whose collector is an open collector.
Signal level
24 V DC
Maximum
current
15 mA

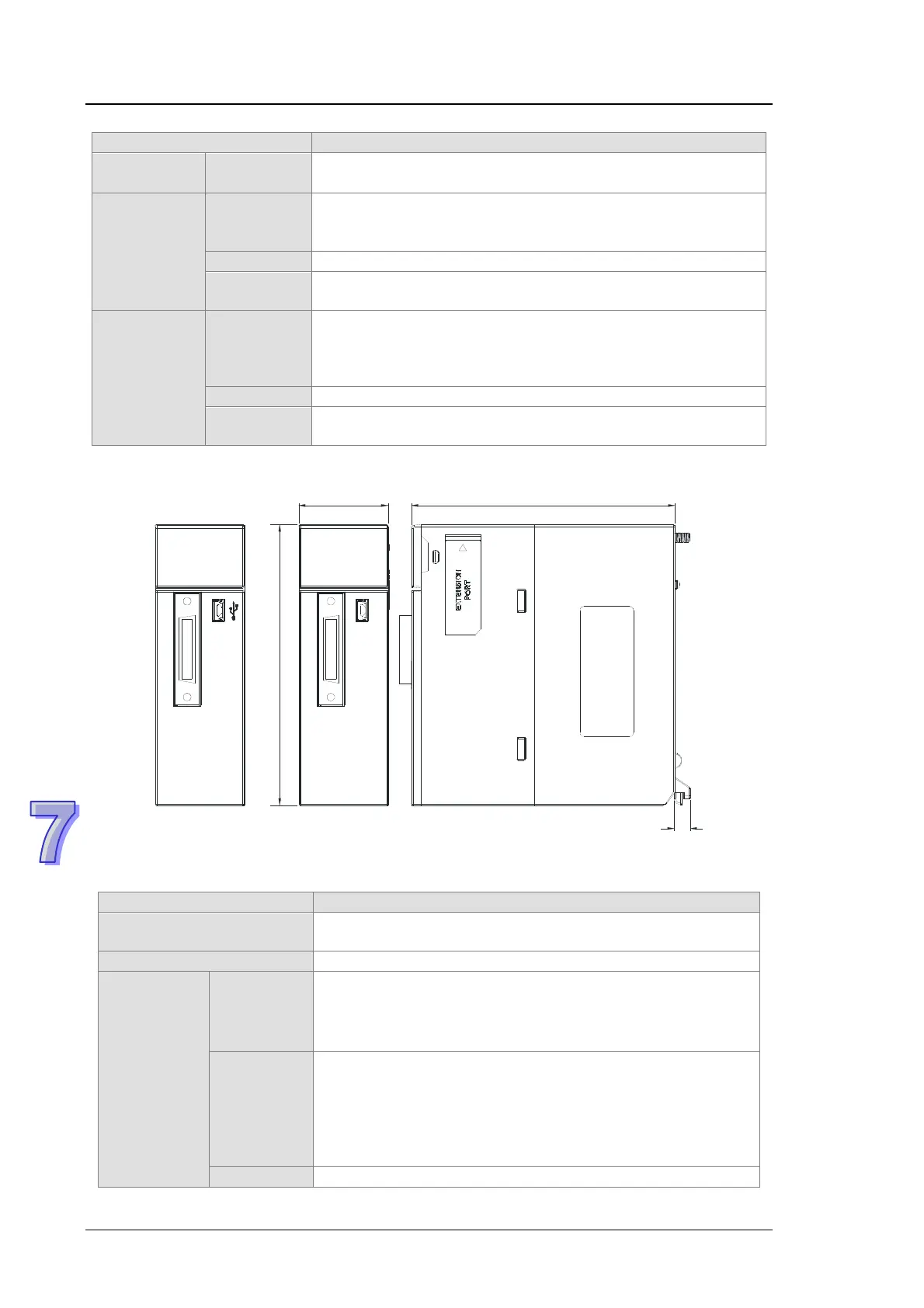

7.2.3 Dimensions of AH04HC-5A
04HC
CN1
ERROR
RUN
110
35
6
103
Unit: mm
7.2.4 Specifications for AH04HC-5A
Item Specifications
Connector
A connector made with great precision is used. It has to be
connected to an external terminal module.
Number of channels
4 channels
Input signal
Input
(differential
signal)
Channel 0: X0.8+, X0.8-, X0.9+, and X0.9-
Channel 1: X0.10+, X0.10-, X0.11+, and X0.11-
Channel 2: X0.12+, X0.12-, X0.13+, and X0.13-
Channel 3: X0.14+, X0.14-, X0.15+, and X0.15-
Pulse format
Pulse/Direction (one phase and one input)
Counting up/Counting up (one phase and two inputs)
One time the frequency of A/B-phase inputs (two phases and
two inputs)
Four times the frequency of A/B-phase inputs (two phases and
two inputs)
Signal level
5~24 V DC
