Chapter 11 DeviceNet Remote I/O Module AHRTU-DNET
11-59
3. Ensure that the baud rates of AH10DNET-5A and AHRTU-DNET-5A are same.
Module
Station address
Baud rate
AH10DNET-5A
3
500 kbps
AHRTU-DNET-5A
1
500 kbps
4. Add 24 V network power between V+ and V- and the 120 ohm terminal resistor between CAN_H
and CAN_L.
11.5.2 Using DeviceNet Builder to Configure the Network
11.5.2.1 Building and Starting the Communication Channel Driver 1 in
COMMGR

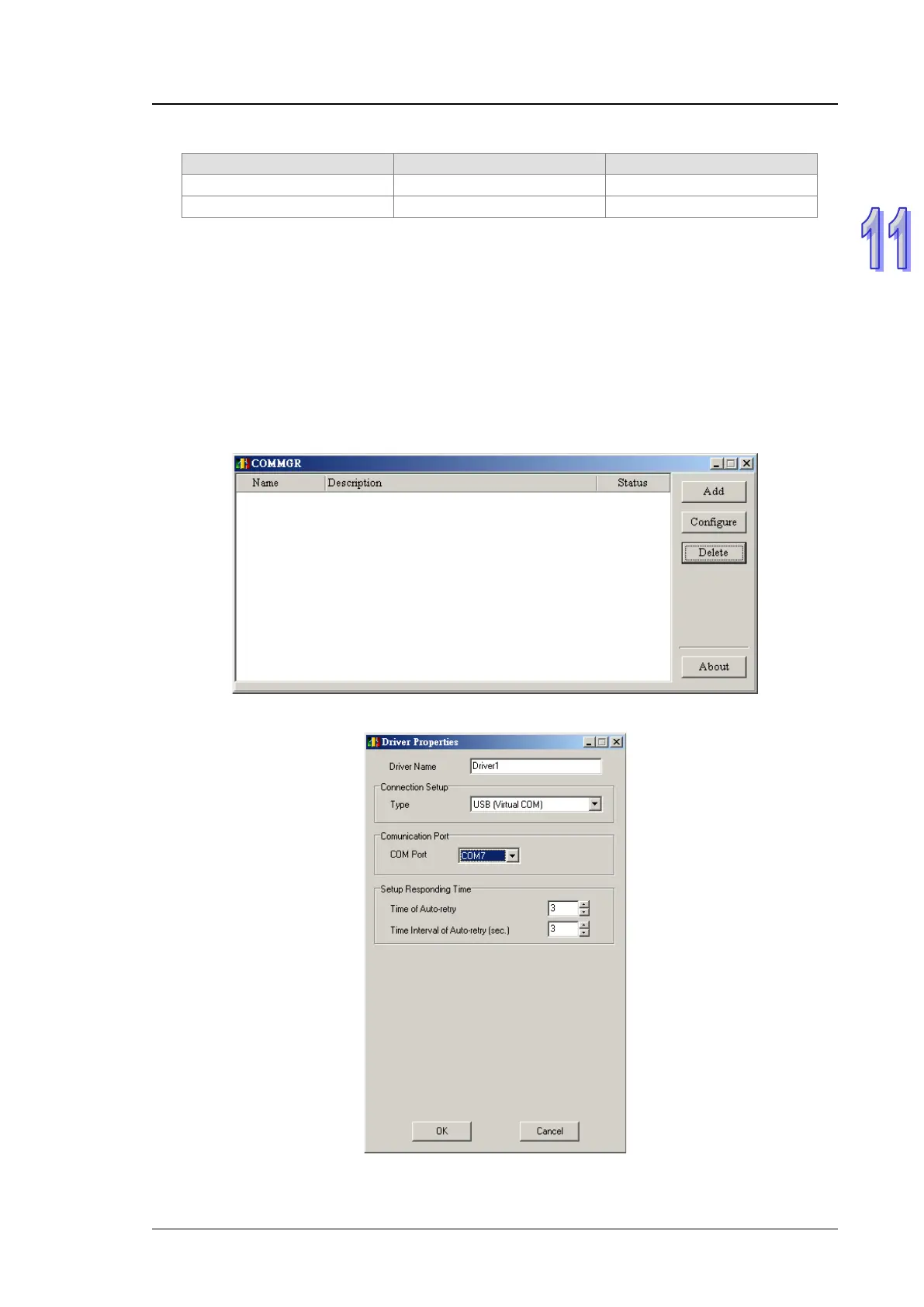

Open COMMGR and the following interface will appear.
Click “Add” button to add a communication channel Driver 1 and set up the channel as follows.
