Delta AH500 User Manual

Chapter 12 Network Module AH10PFBM
12-3

PROFIBUS DP communication
Item
Specification
Message type
Cyclic data exchange
Module name
AH10PFBM-5A
Product ID
0B49
Serial transmission
speed supported (auto-
detection)
9.6kbps; 19.2kbps; 31.25kpbs;45.45kbps;93.75kbps; 187.5kbps;
500kbps; 1.5Mbps; 3Mbps; 6Mbps; 12Mbps

Electrical Specification
Item
Specification
Power supply voltage
5VDC
Insulation voltage
500VDC
Power consumption
2W
Weight
190g

Environment
Item
Specification
Noise immunity
ESD（IEC 61131-2, IEC 61000-4-2）: 8KV Air Discharge
EFT（IEC 61131-2, IEC 61000-4-4）: Power Line:2KV, Digital
I/O: 1KV
Analog & Communication I/O: 1KV
Damped-Oscillatory Wave: Power Line:1KV, Digital I/O: 1KV
RS（IEC 61131-2, IEC 61000-4-3）: 26MHz ~ 1GHz, 10V/m
Operation
0ºC ~ 55ºC（temperature）, 5 ~ 95%（humidity）, pollution
level 2
Storage
-25ºC ~ 70ºC（temperature）, 5 ~ 95%（humidity）
Shock/vibration
immunity
International standards: IEC 61131-2, IEC 68-2-6（TEST Fc）
/IEC 61131-2 & IEC 68-2-27（TEST Ea）
Certificate IEC 61131-2, UL508

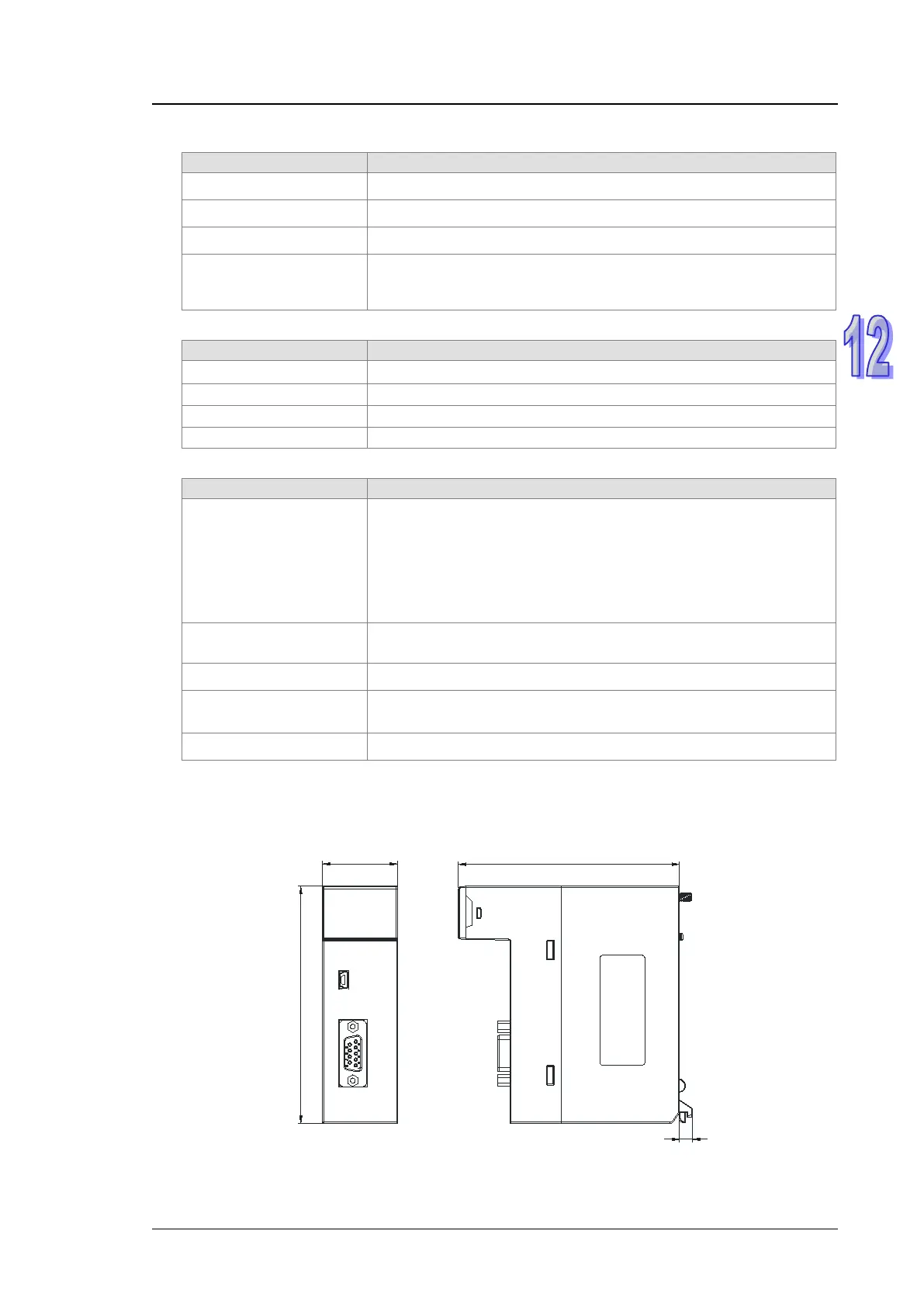

12.2 Profile and Components
12.2.1 Profile and Dimensions
110
35
103
6
Unit: mm
