AH500 Module Manual
5-40
Functional specifications
Analog-to-digital
conversion
Centigrade (°C) Fahrenheit (°F)
Input
impedance
Rated input range
Pt100: -180°C~800°C
Ni100: -80°C~170°C
Pt1000: -180°C~800°C
Ni1000: -80°C~170°C
Pt100: -292°F~1,472°F
Ni100: -112°F~338°F
Pt1000: -292°F~1,472°F
Ni1000: -112°F~338°F
0~300 Ω
Average function
Range: 1~100
Self-diagnosis
Disconnection detection

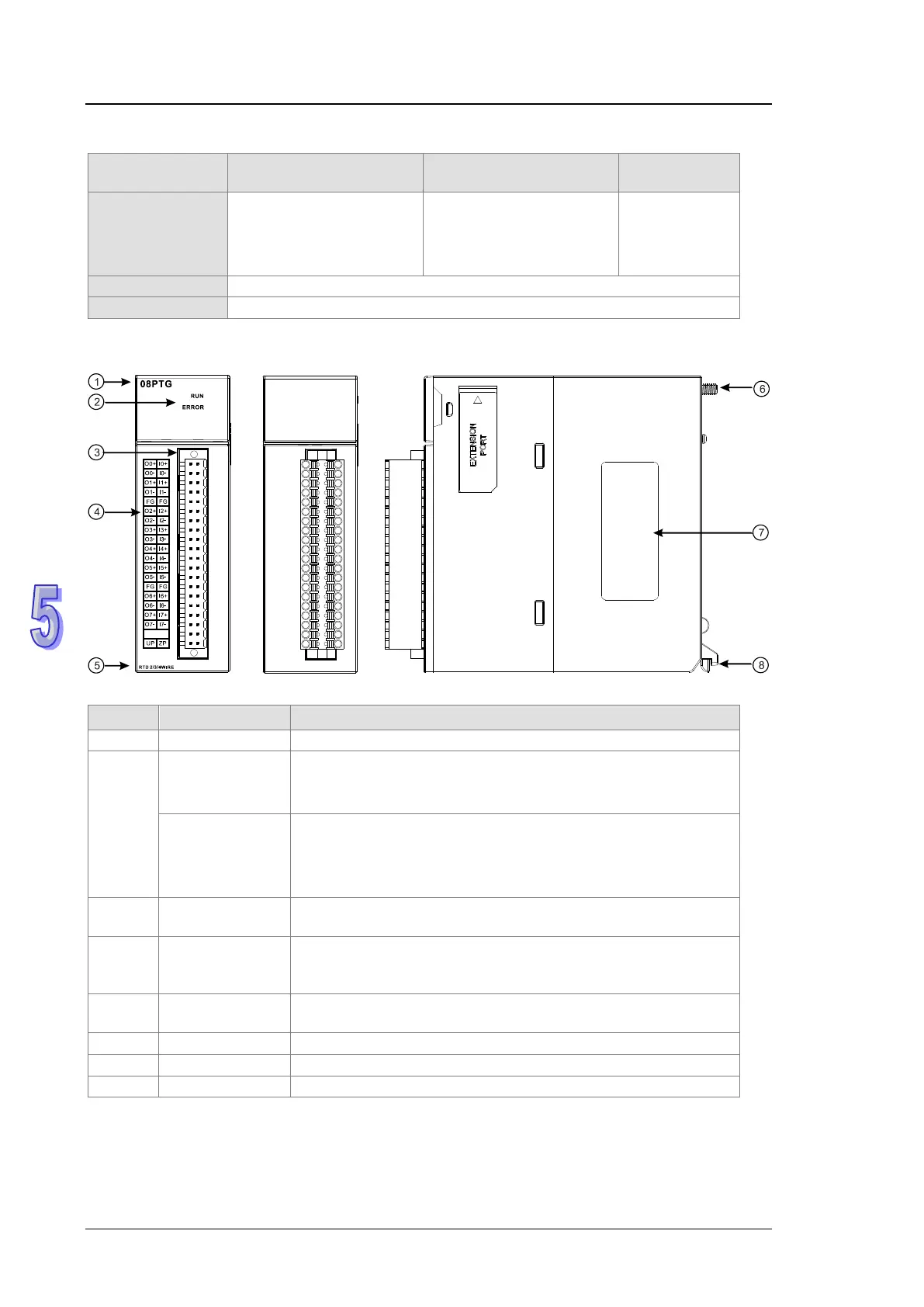

5.2.4 Profile
Number Name Description
1
Model name
Model name of the module
2
RUN LED
indicator
Operating status of the module
ON: The module is running.
OFF: The module stops running.
ERROR LED
indicator
Error status of the module
ON: A serious error occurs in the module.
OFF: The module is normal.
Blink: A slight error occurs in the module.
3
Removable
terminal block
The inputs are connected to sensors.
4
Arrangement of
the input
terminals
Arrangement of the terminals
5
Description of the
inputs
Simple specifications for the module
6
Set screw
Fixing the module
7
Label
Nameplate
8
Projection
Fixing the module
