Delta AH500 User Manual

Chapter 11 DeviceNet Remote I/O Module AHRTU-DNET
11-7

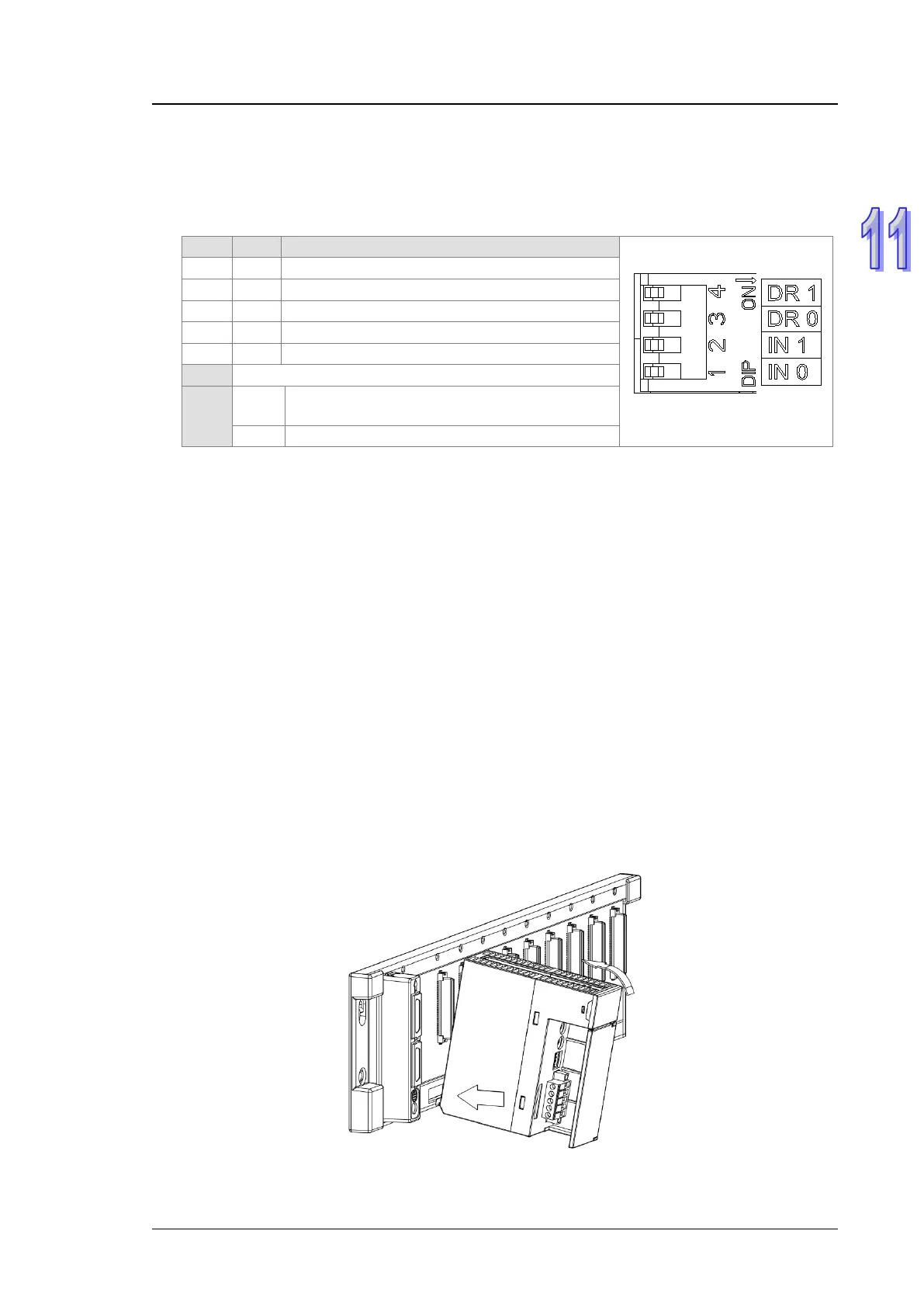

11.2.5 Function Switch
The function switches are used for:
 Setting the data retaining function (IN0)
 Setting DeviceNet baud rate (DR0~DR1)
DR1
DR0
Baud rate
OFF
OFF
125 Kbps
OFF
ON
250 Kbps
ON OFF 500 Kbps
ON
ON
Extended baud rate
IN1
Reserved
IN0
ON
Clear the data in the internal storage in
AHRTU-DNET-5A.
OFF
No action
Note:
 After modifying the setting of the function switch including DR1, DR0 and IN0, the new
setting will be effective after AHRTU-DNET-5A is repowered.
 Supports the extended baud rate such as 10 kbps, 20 kbps, 50 kbps, 125 kbps, 250 kbps,
500 kbps, 800 kbps and 1 Mbps. Set the specific one in the DeviceNet Builder software.
 When IN0 is ON, the I/O output data in AHRTU-DNET-5A will be cleared every time the
connection is disrupted.
 Use slotted screwdriver to rotate the switch carefully in case you scratch the switch.
11.2.6 CPU Interface
The interface is used to connect AHRTU-DNET-5A to the CPU slot of AH500 series rack.
Please note that AHRTU-DNET-5A must be inserted to the CPU slot on the rack in order to prevent
from damaging the module or the rack.
11.3 Basic Installation of AHRTU-DNET-5A
11.3.1 Installing AHRTU-DNET-5A on the Rack
 Insert the projection under the module into the hole in the rack.
 Push the module in the direction indicated by the following arrow to meet the CPU slot of the
rack.
Note: AHRTU-DNET-5A is installed to the CPU slot of the main rack only.
