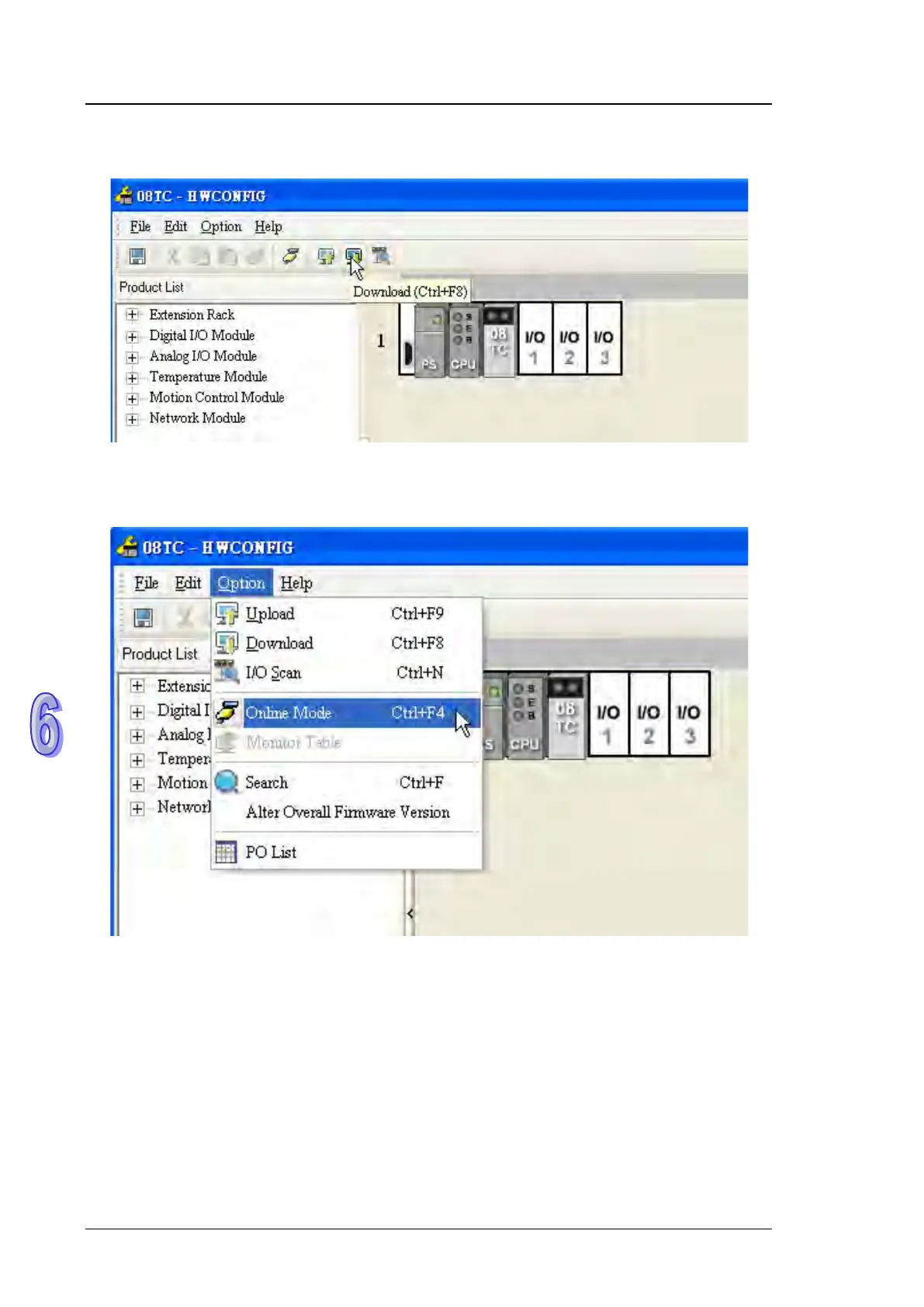

(8) Click Download on the toolbar to download the parameters. (The parameters can not be

downloaded when the CPU module runs.)

6.4.2 Checking the Version of a Module

(1) On the Option menu, click Online Mode.
