Delta AH500 - Extension Baud Rate Setting

AH500 Module Manual
10-40
Meanwhile, the master will automatically assign 50 bytes of registers in the output list to
AH10DNET Slave.
5. Repower AH10DNET-5A after setting is over and then modifying the data length is successful.
10.8.3 Extension Baud Rate Setting
When AH10DNET-5A is in slave mode, its extension baud rate can be set as the following steps.

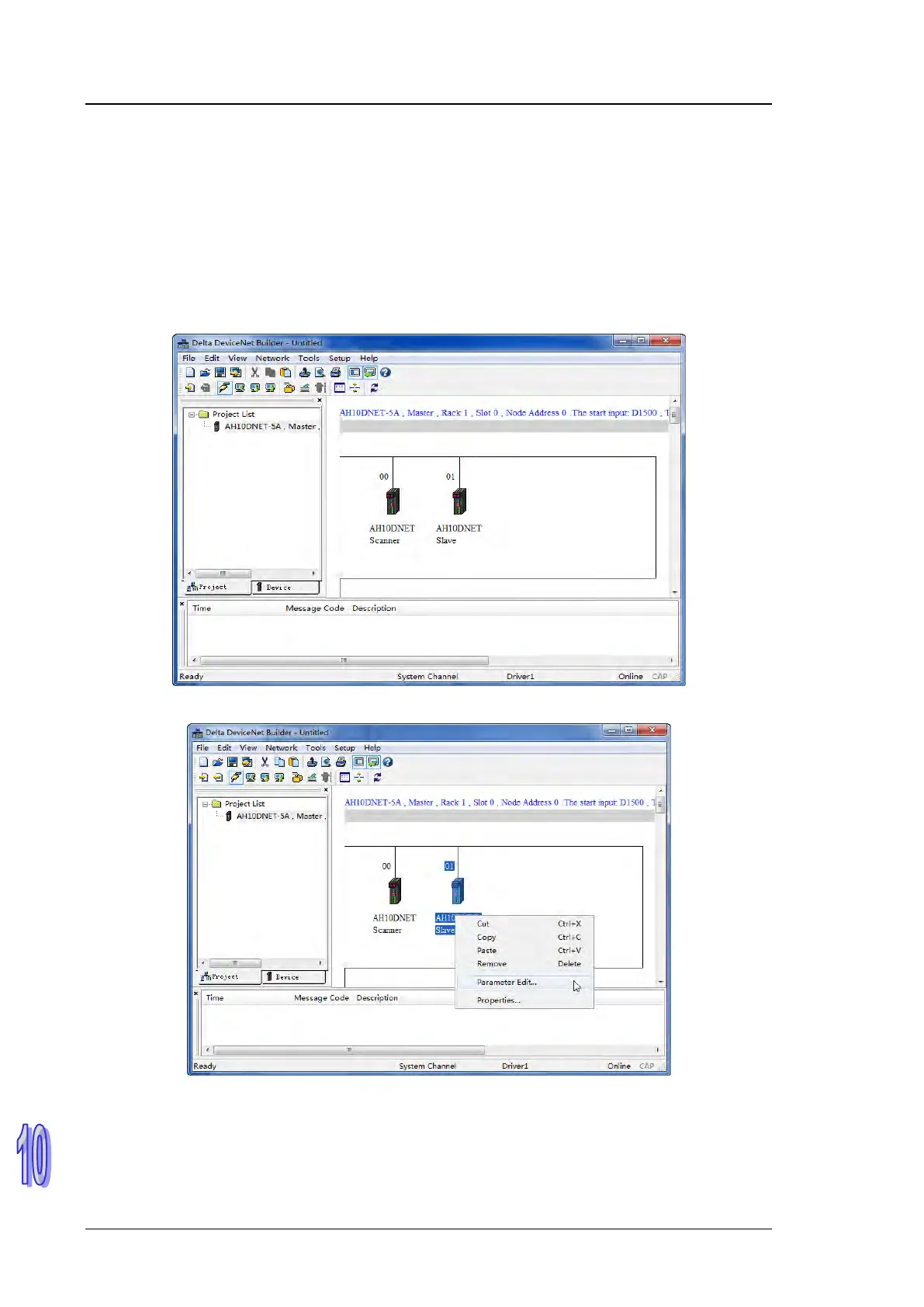

1. Scan AH10DNET-5A in slave mode through the DeviceNet master. “AH10DNET Slave”
represents for AH10DNET-5A module in slave mode and “AH10DNET Scanner” refers to
AH10DNET-5A module in master mode as the following window shows.
2. Right click AH10DNET-5A (Slave) and select “Parameter Edit…” after scanning is successful.
