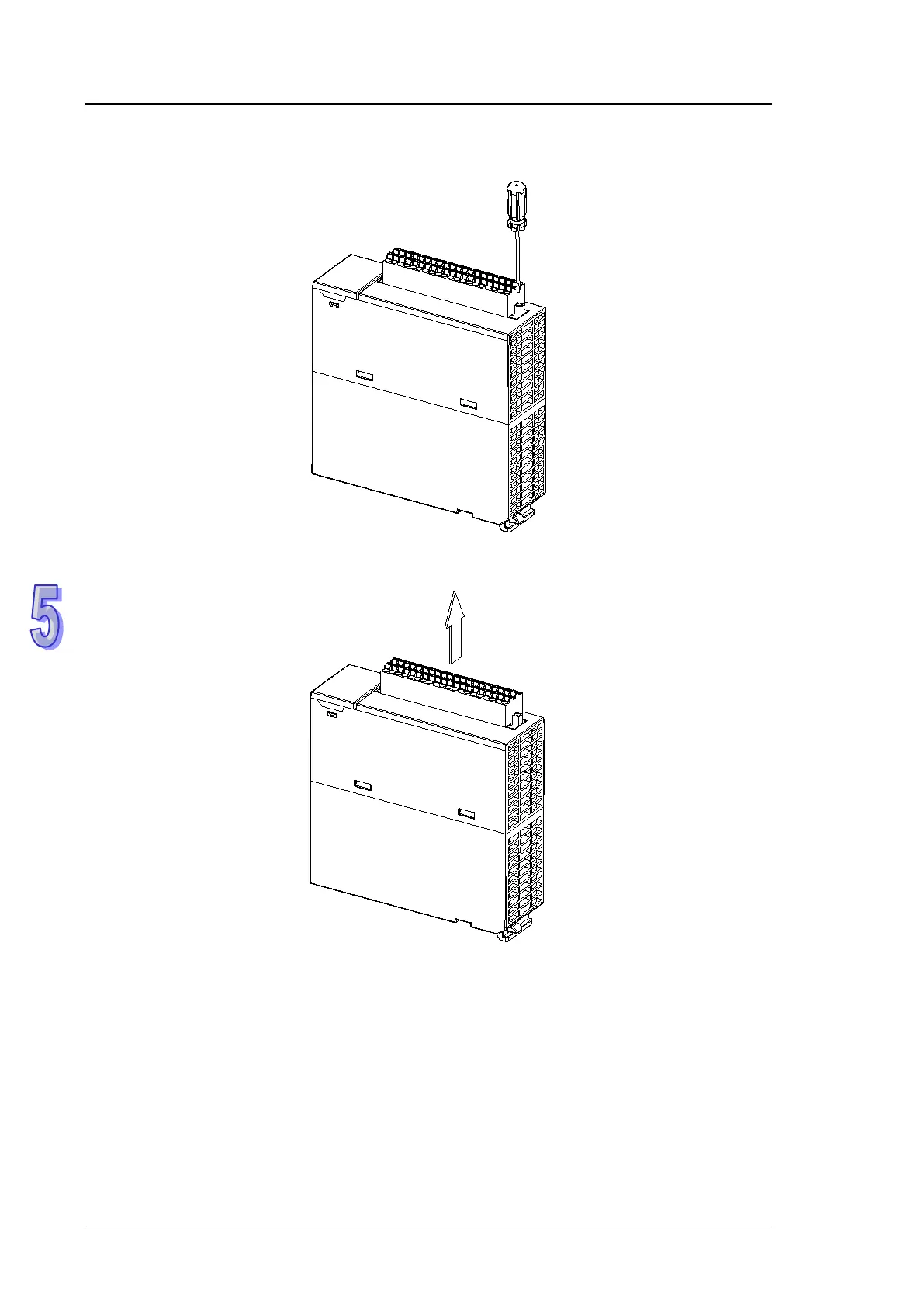

 Removal
1. Loosen the screws on the removable terminal block by means of a screwdriver.
2. Pull up the removable terminal block.
5.2.9 Wiring

Precautions
In order to make the functions of a temperature measurement module perfect and ensure the
reliability of a system at the same time, external wiring which prevents noise is necessary.
Before installing cables, users need to follow the precautions below.
(1) To prevent a surge and induction, an AC cable and input signal cables which are connected
to AH08PTG-5A must be separate cables.
(2) A cable must not be installed near a main circuit, a high-voltage cable, or a cable connected
to a load which is not a PLC. Besides, a cable must not be bound to a main circuit, a
high-voltage cable, or a cable connected to a load which is not a PLC. Otherwise, effects
that noise, induction, and a surge have will increase.
