Delta AH500 User Manual

Chapter 13 PROFIBUS Slave Module AH10PFBS
13-35

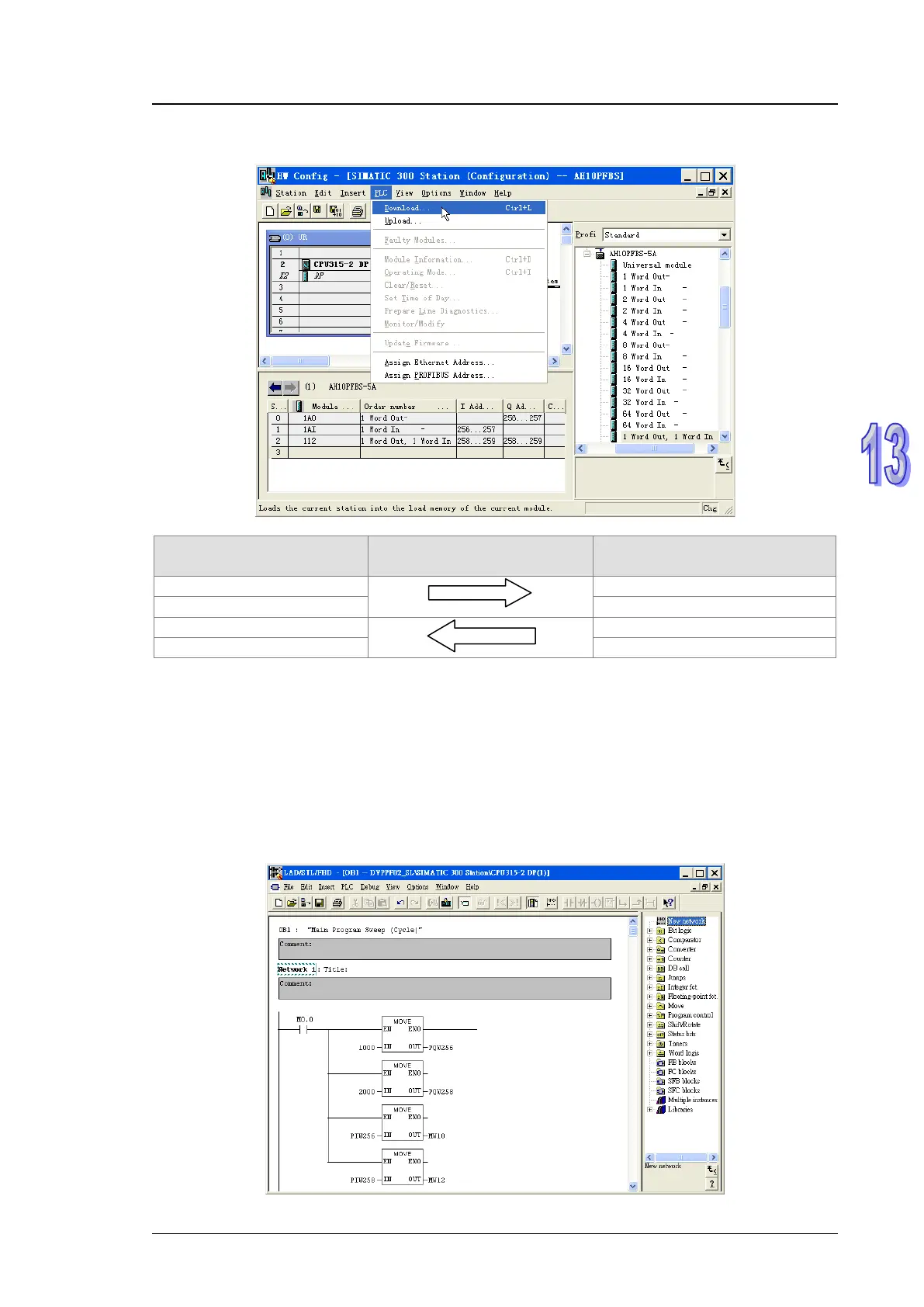

13.9.6 Data Mapping
Data mapping relations in the above parameter configuration are listed as below.
Register in S7-300 master
PROFIBUS-DP network
data transmission direction
Corresponding register in the
AH500 series CPU module
PQW256
D6000
PQW258
D6001
PIW256 D6250
PIW258
D6251
13.9.7 Program Example
 Master program
1. Write the master program inside OB1.
2. When M0.0 is ON, write 1000 to PQW256 and 2000 to PQW258. The master will transmit
the data in PQW256 and PQW258 to D6000 and D6001 in the slave respectively via the
PROFIBUS-DP bus.
3. When M0.0 is ON, write the data in PIW256 to MW10 and PIW258 to MW12. The data in
PIW256 and PIW258 are those in D6250 and D6251 of the slave transmitted to the master
via the PROFIBUS-DP bus.
