Chapter 10 DeviceNet Communication Module AH10DNET
10-23
Note: If “E7” is displayed on AH10DNET-5A, please remove its DeviceNet terminals before
downloading. Otherwise, failure to download will occur.
11. Power off the AH500 series CPU module and then power it on again after downloading is
finished. And at the time, AH10DNET-5A is set to the master mode.
10.7.2 Mapping Areas Setting
When AH10DNET-5A serves as a master, there are two methods of modifying the starting address
of its mapping areas.
Method 1: Modifying the starting address of the mapping areas through ISPSoft and
DeviceNet Builder

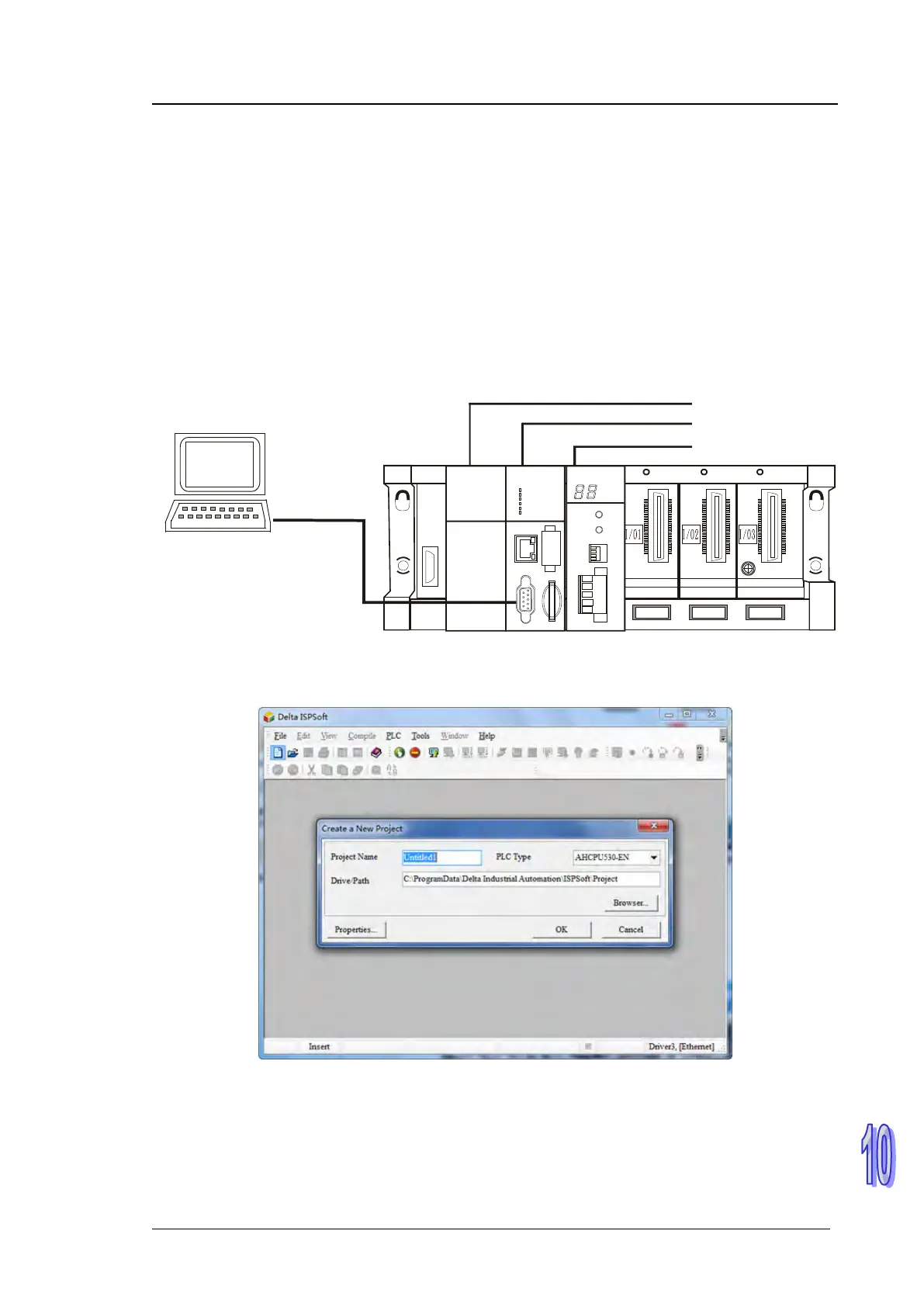

1. PC accesses an AH500 series CPU module via USB after connecting the device according to
the following figure.
RS232
DeviceNet Builder
CPU530-EN
PS05
P 05S
C U530-ENP
10DNET
AH10DNET-5A
Note: The introduction in this section is made in the USB communication method.
2. Open ISPSoft, select File>> New>> Newand then the following dialog box appears where
select the corresponding PLC.
Note: The PLC used in this section is AHCPU530-EN.
