AH500 Module Manual
12-50
12.6.6 PLC Programs Writing
【Control program in master PLC】
Write the program through the ISPsoft software

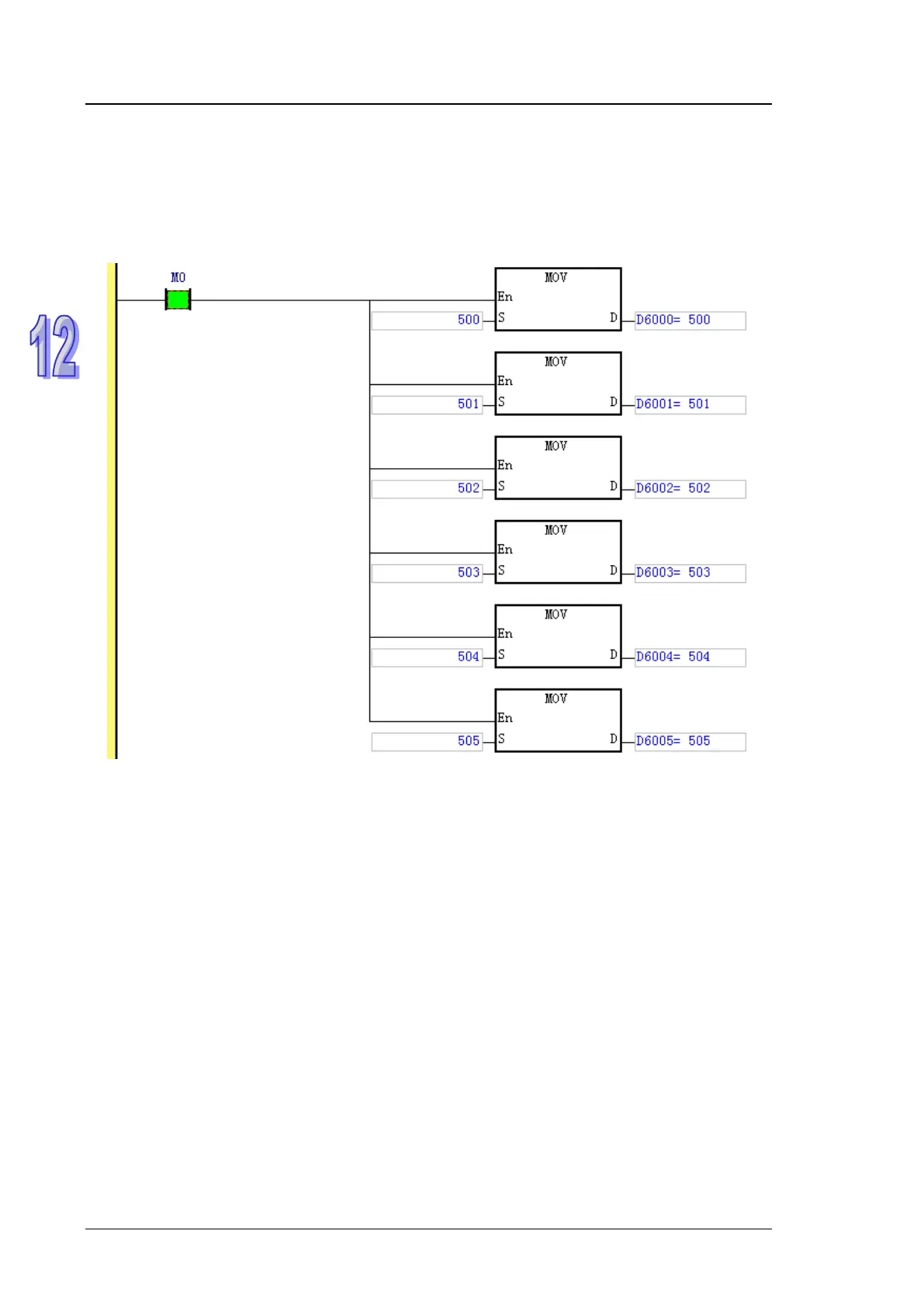

After the master PLC runs and M0 is ON, write 500~505 to the corresponding D6000~D6005 in the
master PLC respectively and the values in D6000~D6005 are sent to the slave through PROFIBUS.
