AH500 Module Manual
15-32
15.5.5 Obtaining the States of the Slave Stations on a CANopen
Network

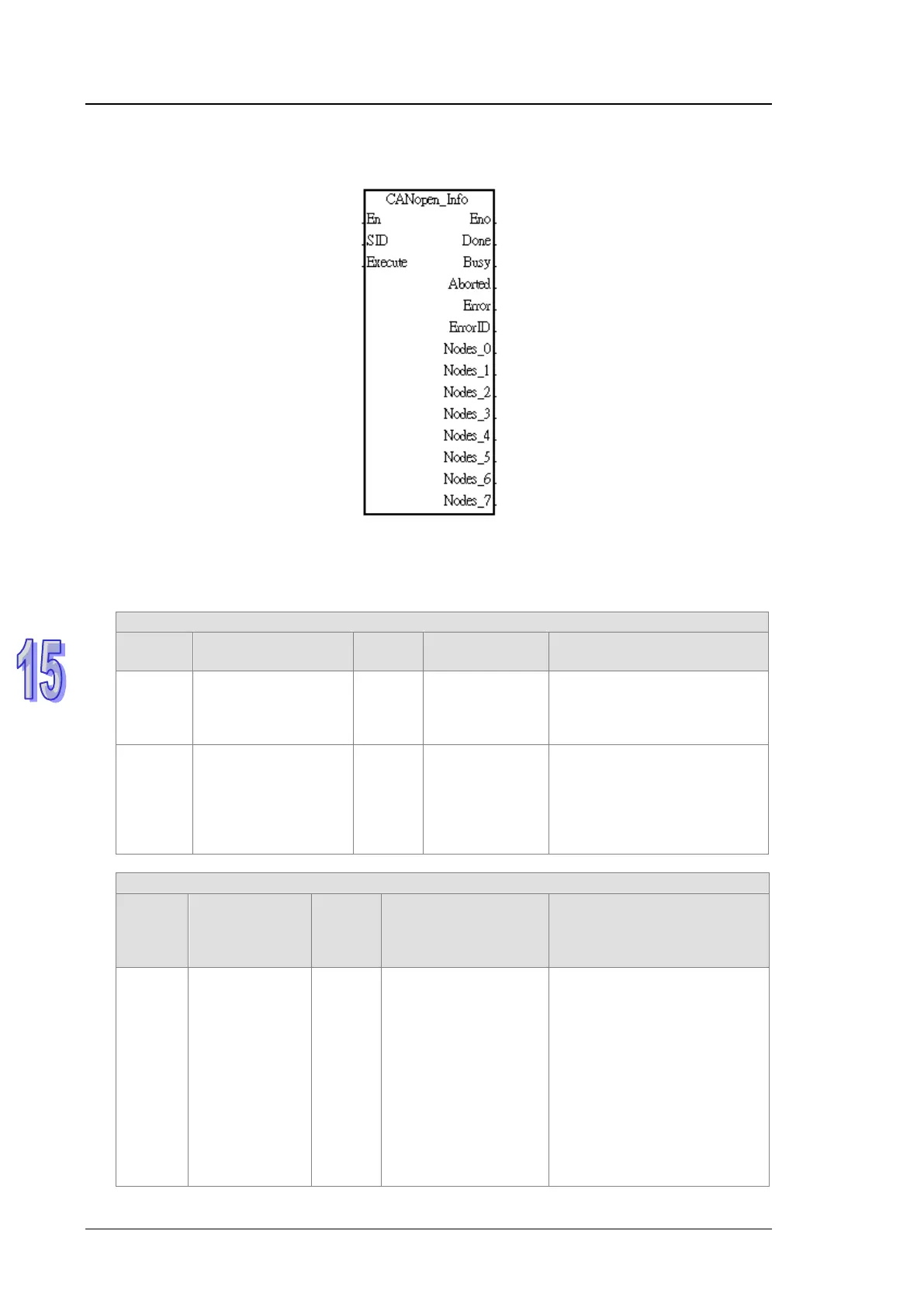

1. Function block
Users can obtain the states of the slave stations on a CANopen network from the
AH10COPM-5A module in a slot on the main backplane used by means of the function block
CANopen_Info.
2. Input pins/Output pins
Input pin
Name Function
Data
type
Setting value Time when a value is valid
SID Slot number WORD K0~K11
The value of the SID input pin
is valid when there is a
transition in the Execute input
pin’s signal from low to high.
Execute
The function block is
executed when there
is a transition in the
Execute input pin’s
signal from low to
high.
BOOL True/False -
Output pin
Name Function
Data
type
Time when there is
a transition in an
output pin’s signal
from low to high
Time when there is a
transition in an output pin’s
signal from high to low
Done
The execution
of the function
block is
complete.
BOOL
 There is a
transition in the
Done output pin’s
signal from low to
high when the
execution of the
function block is
complete.

There is a transition in the
Done output pin’s signal
from high to low when
there is a transition in the
Execute input pin’s signal
from high to low.
 If the Execute input pin is
set to False when the
execution of the function
block is complete, the
Done output pin will be set
to False in the next cycle.
