13-2
13.1 Introduction of AH10PFBS-5A
1. Thank you for choosing Delta AH10PFBS-5A PROFIBUS-DP slave module. To ensure correct
installation and operation of the product, please read this operation manual carefully before
use.
2. This operation manual only provides introductory information on AH10PFBS-5A. Detailed
information about PROFIBUS-DP protocol is not included in this manual. Please refer to
relevant literatures for more information on PROFIBUS-DP protocol.
3. AH10PFBS-5A is a PROFIBUS-DP slave module for connecting Delta’s AH500 series CPU
module to PROFIBUS-DP network. It does not need to be externally connected with the power
supply since its power is supplied by the rack.
4. The power module AHPS05-5A, an AH500 series PLC and the main rack are necessary for
using AH10PFBS-5A.
5. AH10PFBS-5A can only be connected to the I/O slot of the main AH500 series rack instead of
the extension rack.
13.1.1 Functions
 Supports PROFIBUS-DP cyclic data transmission between the master and multiple slaves
 Auto-detects baud rates; supports max. 12 Mbps
 Self-diagnosis
 Supports hot-plugging (The module could be inserted to or removed from the main rack when
the main rack is powered ON.)
 The main rack can connect 8 AH10PFBS-5A modules at most.
 The I/O data of each AH10PFBS-5A supports max. 100 words of data input and 100 words of
data output.
13.2 Product Profile and Outline

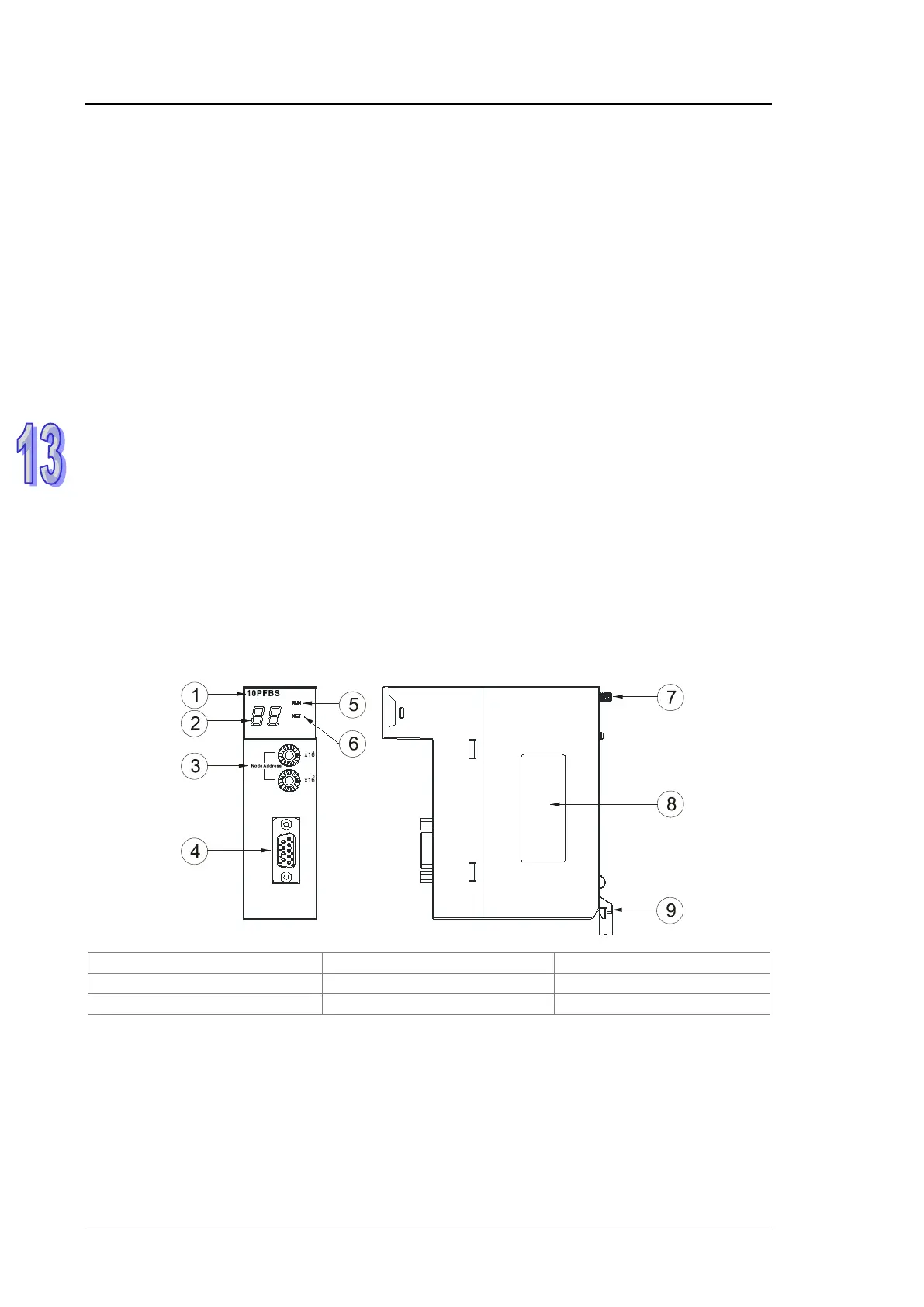

13.2.1 Parts
1. Model Name
2. Digital Displayer
3. Address switch
4. PROFIBUS-DP COM port
5. RUN indicator
6. NET indicator
7. Set screw
8. Nameplate
9. Module fixing projection
