Chapter
7
High-s
peed
Coun
ter
Module
AH02HC/AH0
4HC
7-1
1
(5)

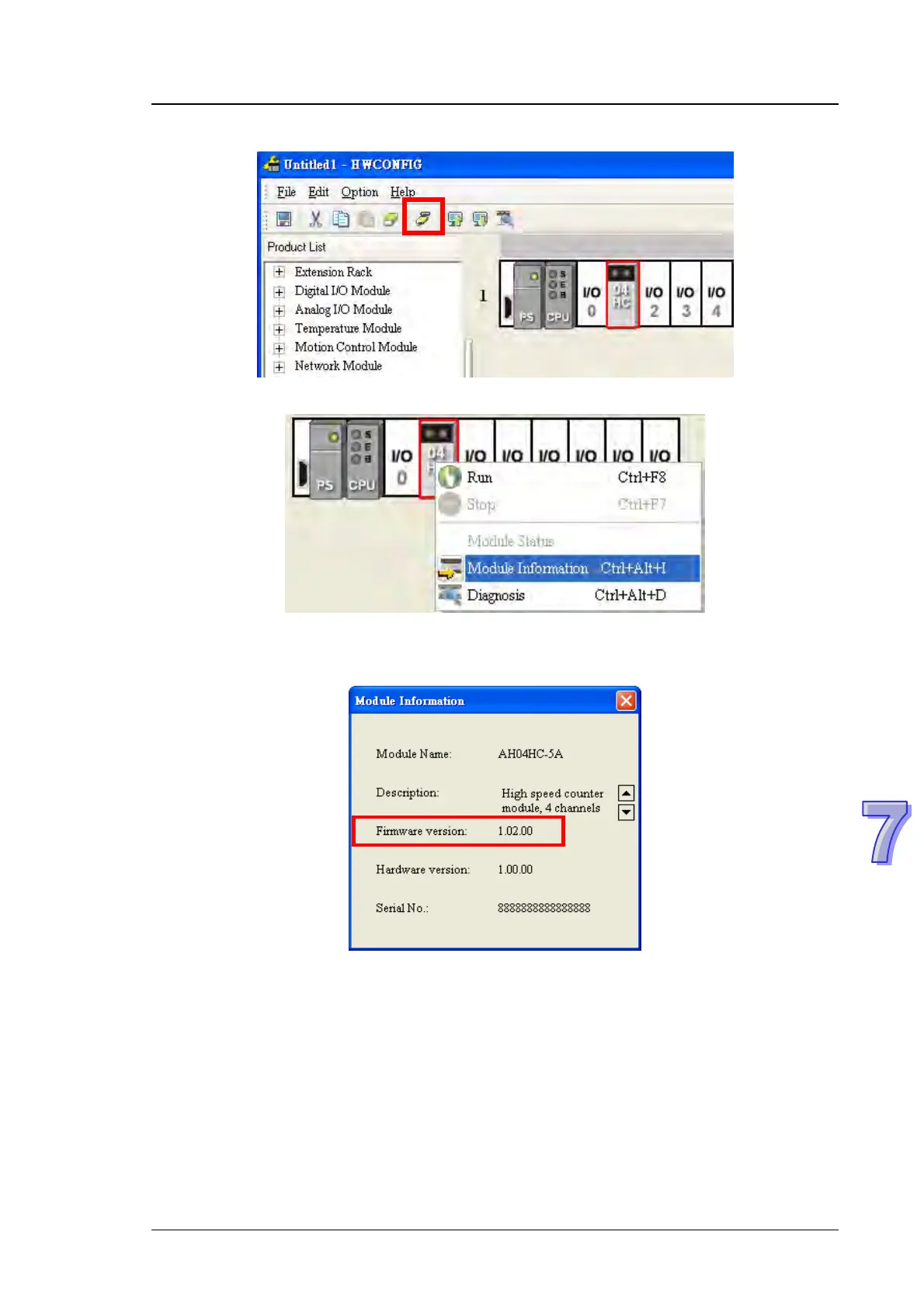

Click
Online Mode
on the toolbar
.
(6)
After the users right-click
the module
AH04HC-5A, a context
menu will appear
.
(7)
After t
he users cli
ck
Module Information
on the context menu, the
Module Information
window will appear
. The firmware version in the red frame in the window belo
w is the firmware
version of the module
AH04HC-5A.
242
244
