Delta AH500 User Manual

AH500 Module Manual
11-52

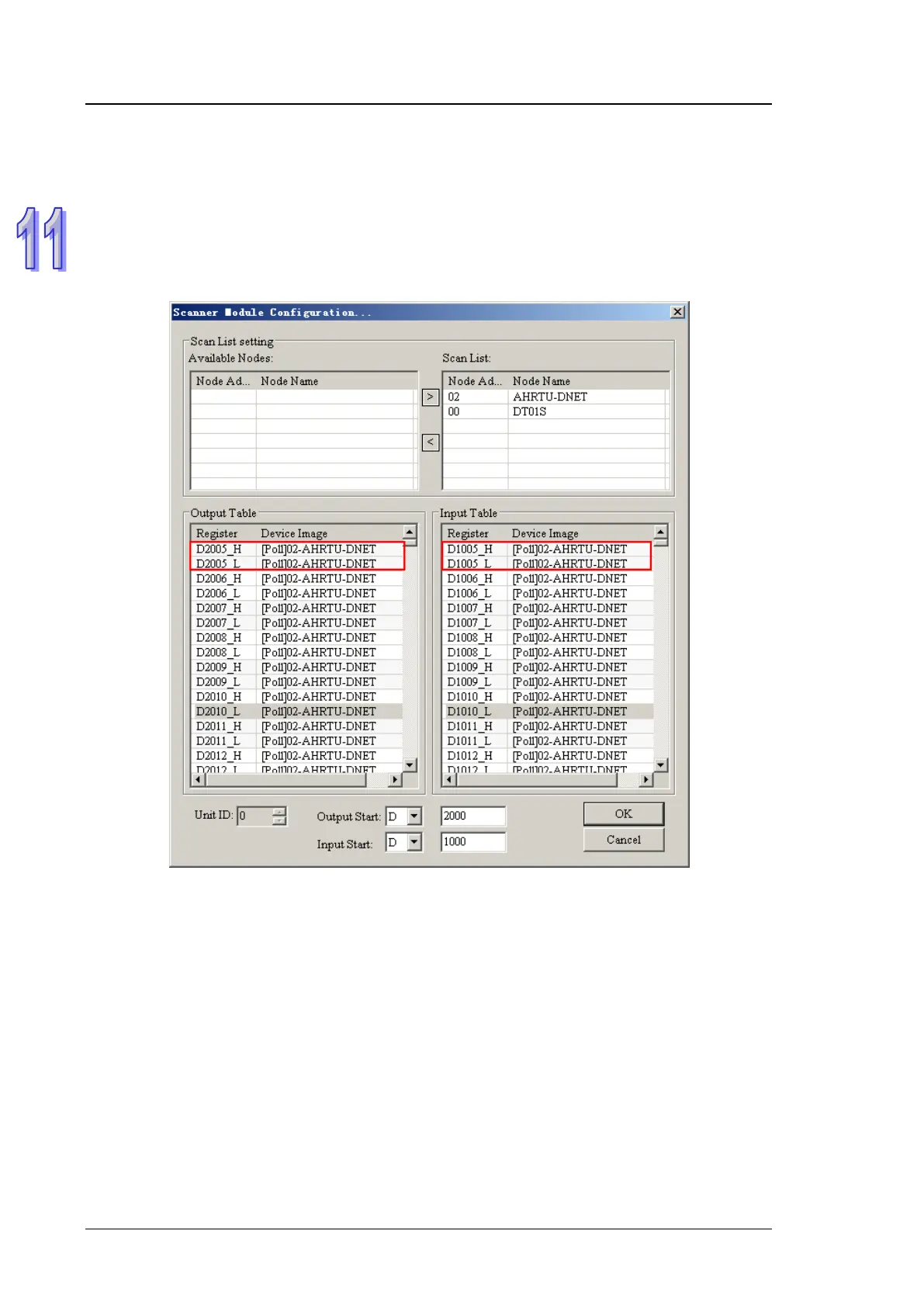

If AHRTU-DNET-5A is added to the master prior to DT01S, the input and output mapping addresses
of AHRTU-DNET-5A are D1005~D1044 and D2005~D2044 respectively and D1005 and D2005 are
its input and output mapping starting addresses respectively.
When AHRTU-DNET-5A is added to the master, its input and output mapping starting addresses are
fixed and defined as the status word and control word of AHRTU-DNET-5A respectively as below.
The registers after the input and output mapping starting addresses are used for mapping the
configuration parameters of the I/O module.

Delta AH500 Specifications

General

Brand	Delta
Model	AH500
Category	Controller
Language	English
