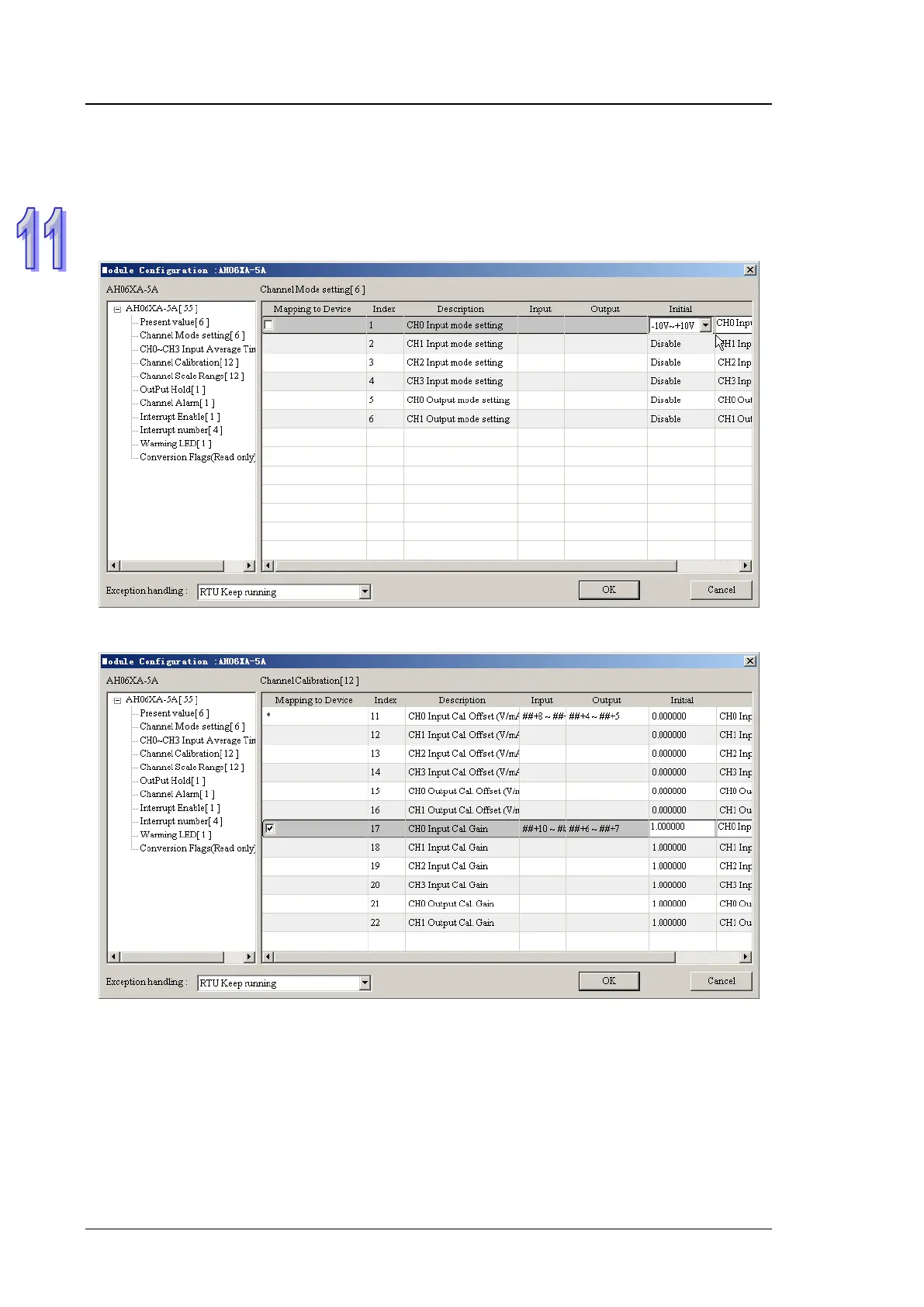

Double click the selected module icons respectively to enter the configuration interface of each
module and select the module parameters which need to be configured. The corresponding module
parameters can be monitored in real time by ticking “Mapping to Device”. Channel 0 input mode of
AH06XA-5A is set to -10 V~+10 V. Tick “Mapping to Device” for Channel 0 input cali. offset and
Channel 0 input cali. Gain respectively.
Set Channel 0 output mode of AH08DA-5B to -10 V~+10 V in the same way. Tick “Mapping to
Device” for Channel 0 cali. offset and Channel 0 cali. Gain respectively.
After configuration of the module is completed, select “Auto Addr” and then all modules will
automatically allocate the parameter addresses according to the arrangement of the modules
inserted on the rack.
