Chapter 11 DeviceNet Remote I/O Module AHRTU-DNET
11-73
After AHRTU-DNET-5A has been added to the AH10DNET-5A master, the mapping starting address
of output and input which the master allocates to AHRTU-DNET-5A are D1005 and D505
respectively and their respective mapping address lengths are 60 bytes and 36 bytes. Therefore,
the input mapping addresses that the master allocates to AHRTU-DNET-5A are D505~D522 and the
allocated output mapping addresses are D1005~D1034.

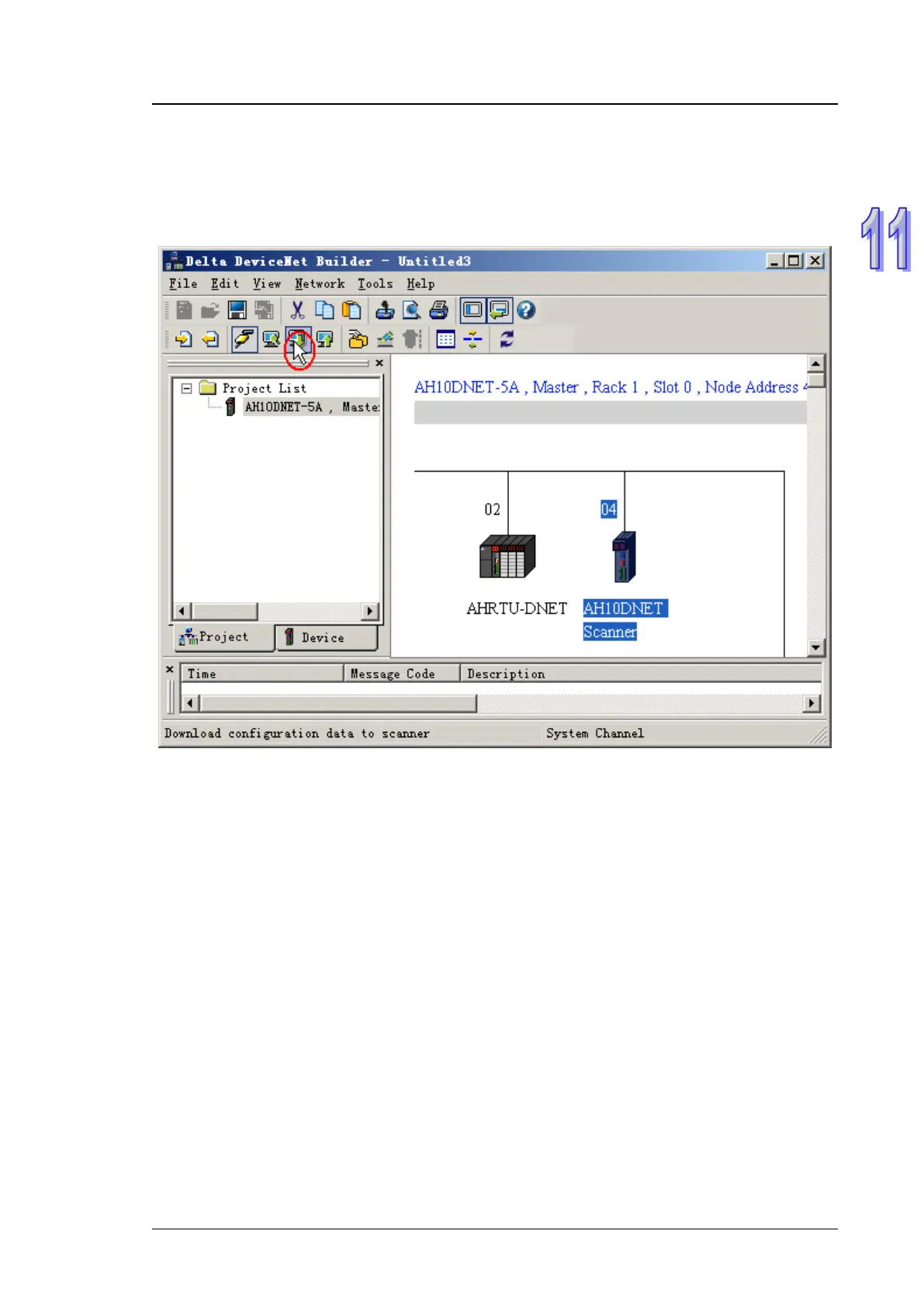

Finally, click “OK” to download the configuration to AH10DNET-5A.
