Chapter 12 Network Module AH10PFBM

12-27

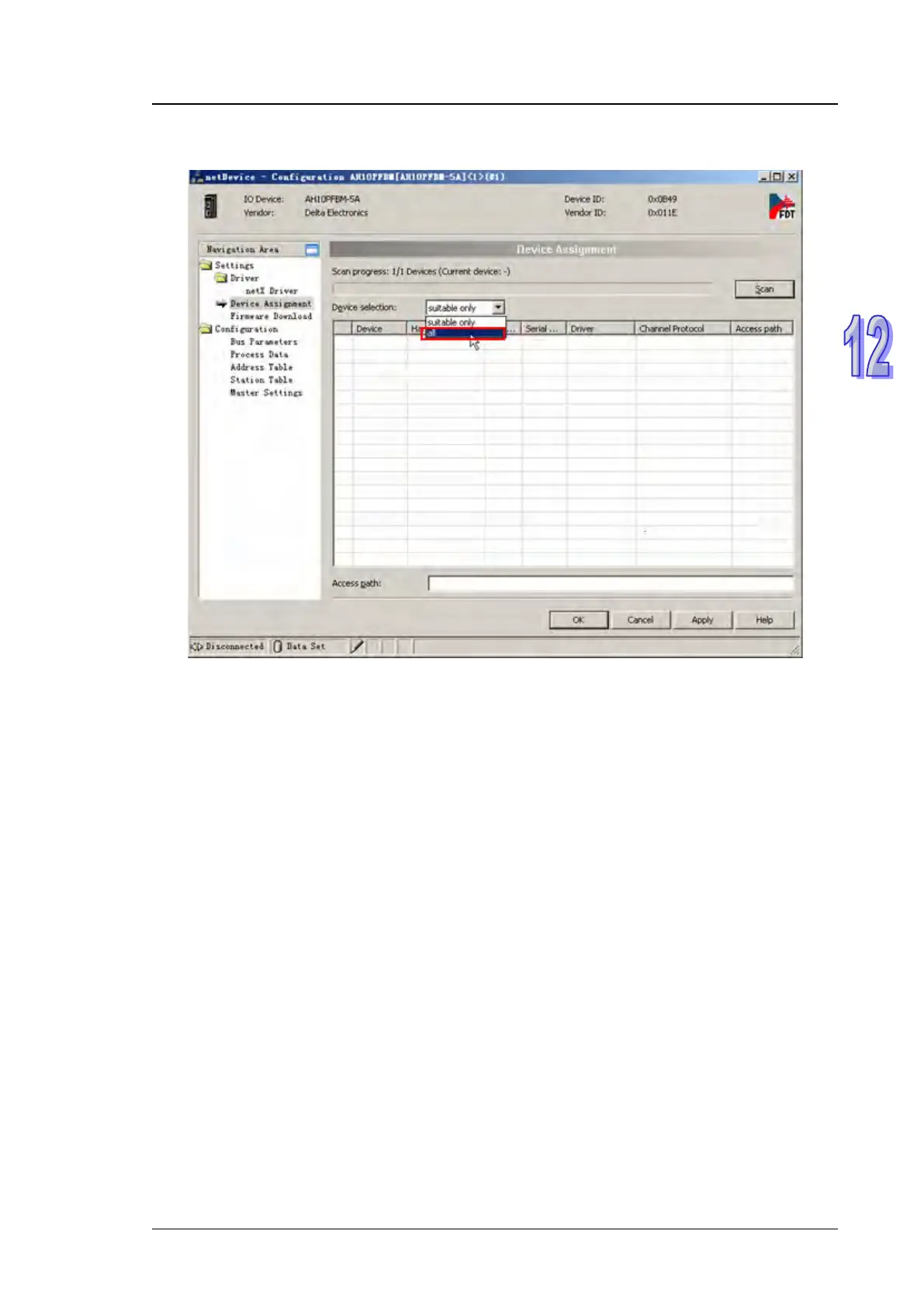

7. Click “Scan” button on the right-side window after clicking “Device Assignment” item on the left-

side window and then select “All” from the Device Selection box on the right-side window.

Main Page
