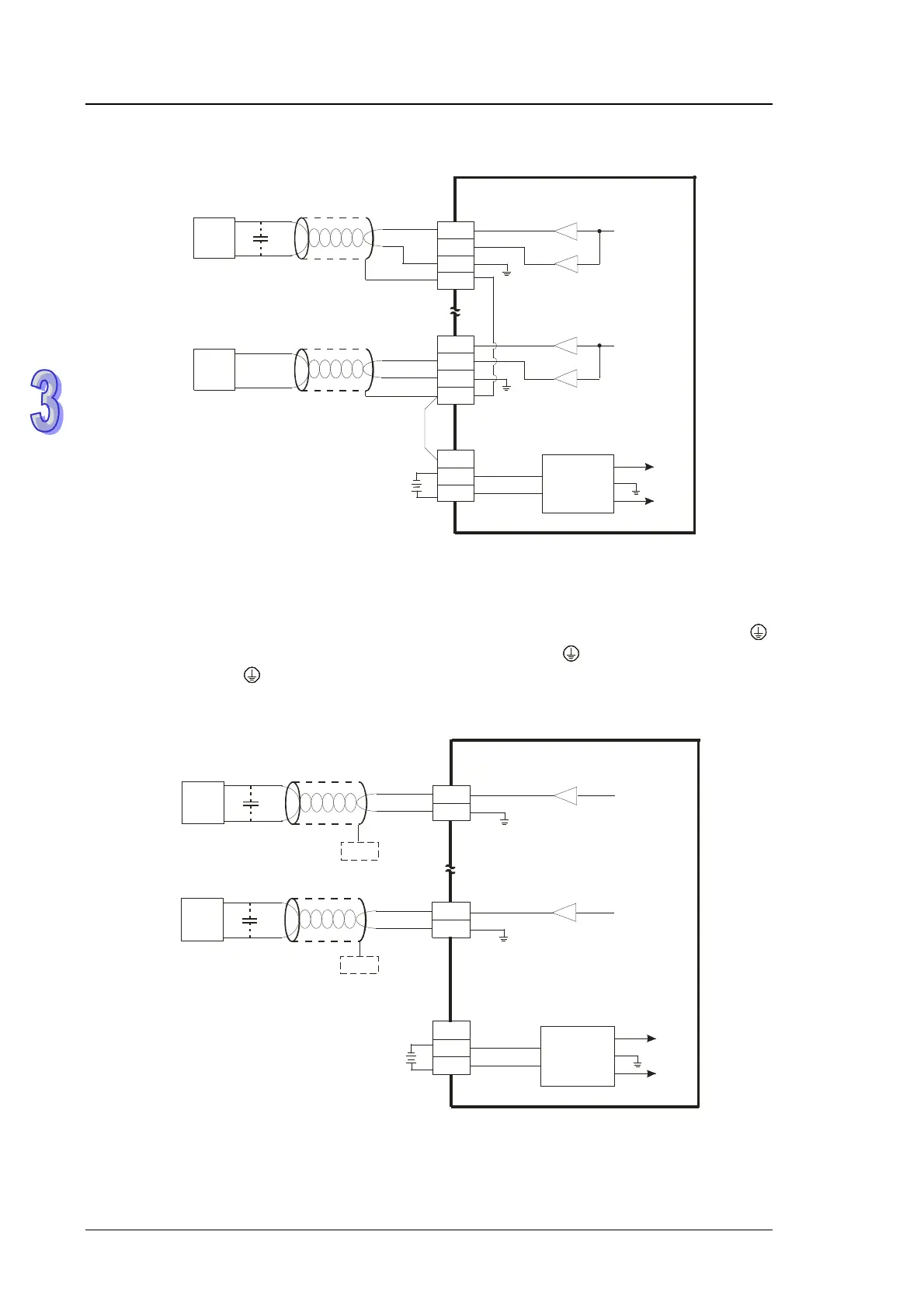

 External wiring
(1) AH04DA-5A/AH08DA-5A
VO3
IO3
A G
CH3
Current output
0mA~20 mA
CH3
AG
VO0
IO0
AG
CH0
Shie lded cable 1*
Voltage outp ut
-10V~+10V
*2
CH0
AG
ZP
UP
24VDC
DC/DC
converter
+1 5V
-15V
AG
SG
SL D
S L D
*3
AC motor dr ive,
, recorder
...prop or tion ing val ve
Shie lded ca ble 1*
AC motor dr ive,
, recorder
...prop or tion ing val ve
*1. Please use a shielded cable as an analog output cable, and isolate the shielded cable from other power
cables.
*2. If the ripple voltage of the input terminal of the load connected is large, and results in interference with
the wiring, please connect a 0.1~0.47 μF and 25 V capacitor.
*3. Please connect the terminal SLD to the terminal SG. Once AH04DA-5A/AH08DA-5A is installed on a
backplane, the connection between the terminal SG on AH04DA-5A/AH08DA-5A and the terminal
on the backplane will be a short circuit. Please connect the terminal
on the backplane to the
ground terminal
.
(2) AH08DA-5B
VO0
A G
CH0
Voltage output
-10V~+10V
*2
CH0
AG
ZP
UP
24VDC
DC/DC
converter
+15V
-15V
AG
SG
VO7
AG
CH7
Voltag e output
-10V~+10V
*2
CH7
AG
*4
*3
*3
S G
S G
AC motor drive,
, recorder
...propor tioning val ve
AC motor drive,
, recorder
...propor tioning val ve
*1. Please use a shielded cable as an analog output cable, and isolate the shielded cable from other power
cables.
*2. If the ripple voltage of the input terminal of the load connected is large, and results in interference with
the wiring, please connect a 0.1~0.47 μF and 25 V capacitor.
