Routine maintenance
- 254 -
Maintenance
4

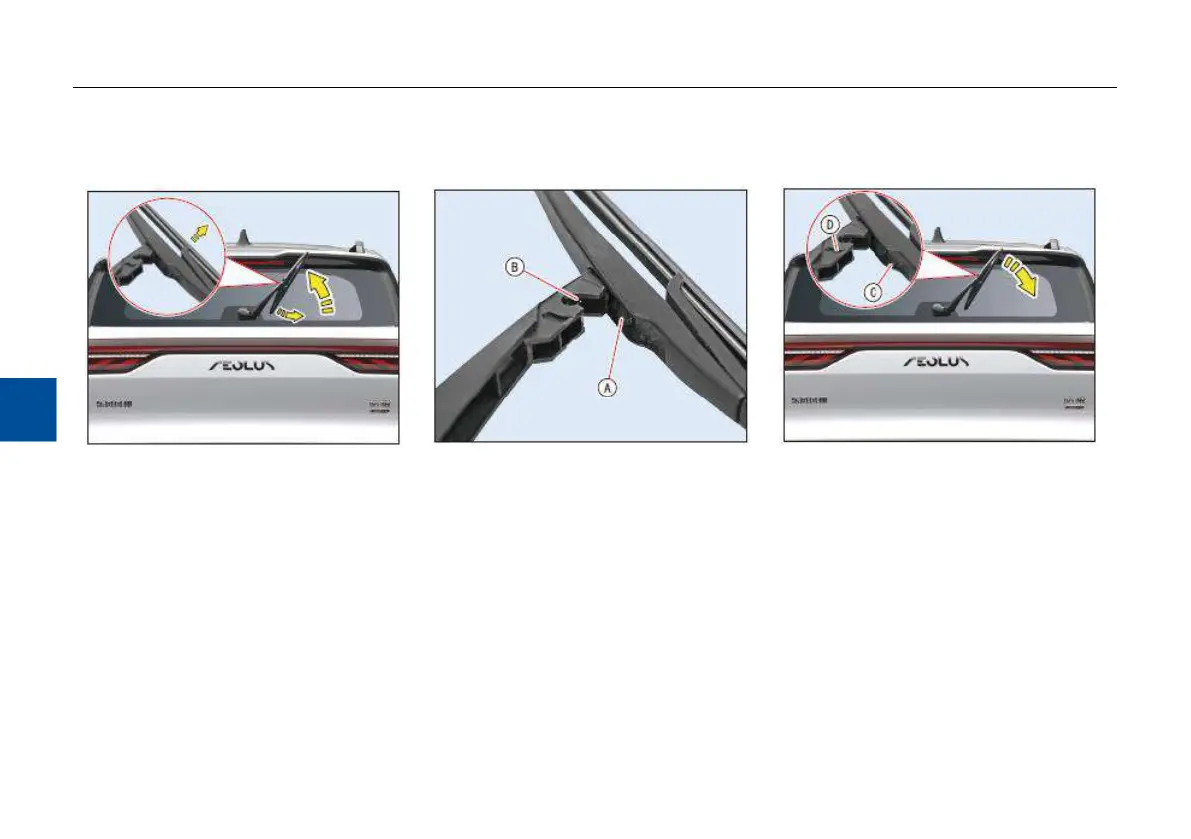

Replacement method of rear windshield
wiper blade
1. Lift the wiper arm away from the windshield.
Place a thick towel at the lower part of the wiper
arm to prevent the wiper arm from accidentally
returning back to damage the windshield;
2. Hold the wiper blade, rotate it
counterclockwise to the limit position, and then
continue to rotate it until a “click” is heard,
indicating that the wiper blade comes out of the
clamping position on the wiper arm;
3. Pull out the wiper blade obliquely upward;
4. Replace with a new wiper blade;
5. Refit the boss ○
A
on the wiper blade into the
groove ○
B
on the wiper arm;
6. Rotate the wiper blade clockwise so that
bosses ○
C
on both ends are refitted into the
grooves ○
D
on both ends on the wiper arm;
7. After refitting, check that the wiper blade is
refitted reliably. Remove the towel and fold the
wiper arm back on the windshield.
