C
HAPTER
5
| Interface Configuration
Port Configuration
– 127 –
WEB INTERFACE
To configure a remote mirror session:
1. Click Interface, RSPAN.
2. Set the Switch Role to None, Source, Intermediate, or Destination.
3. Configure the required settings for each switch participating in the
RSPAN VLAN.
4. Click Apply.

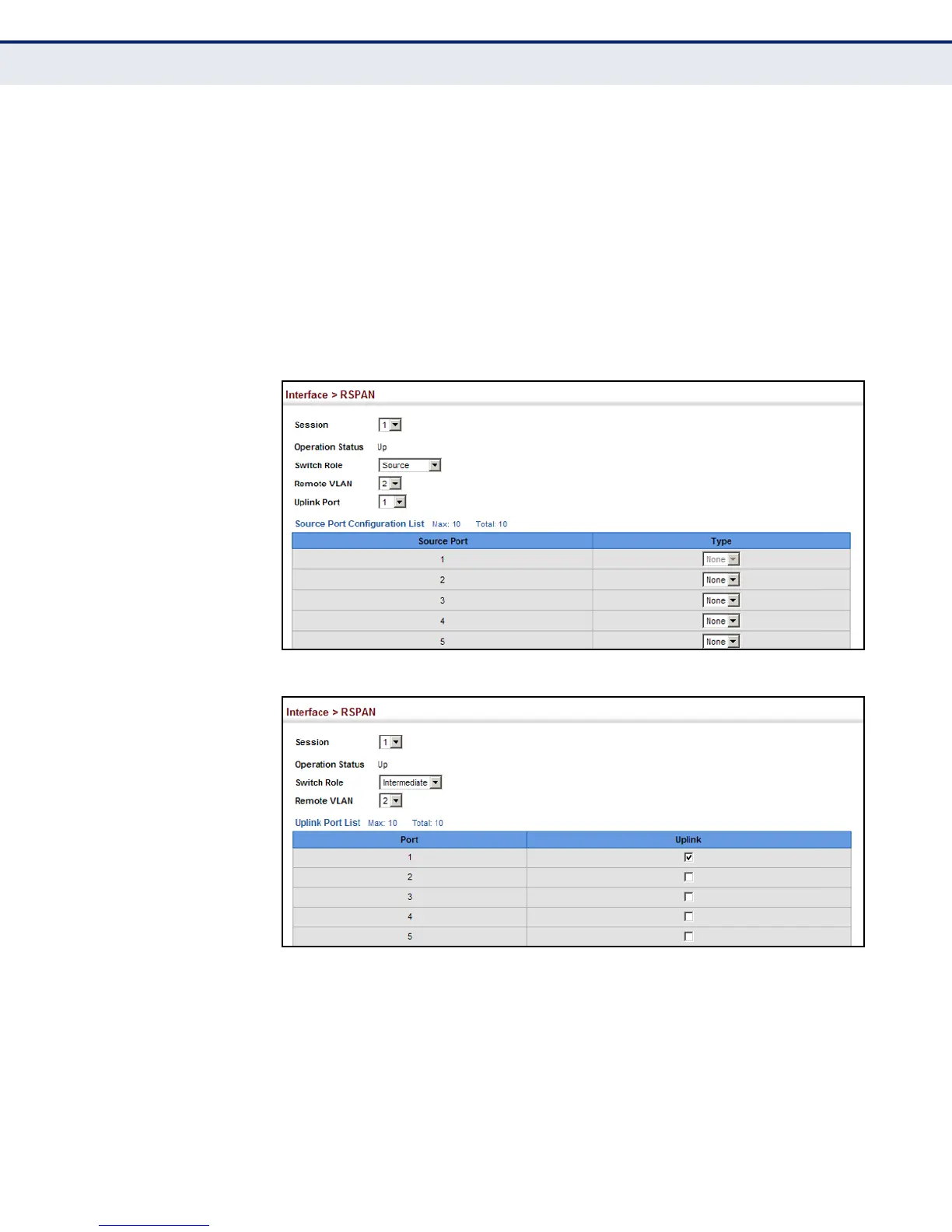

Figure 31: Configuring Remote Port Mirroring (Source)
Figure 32: Configuring Remote Port Mirroring (Intermediate)
