C HAPTER 5 | Interface Configuration
Port Configuration
– 131 –

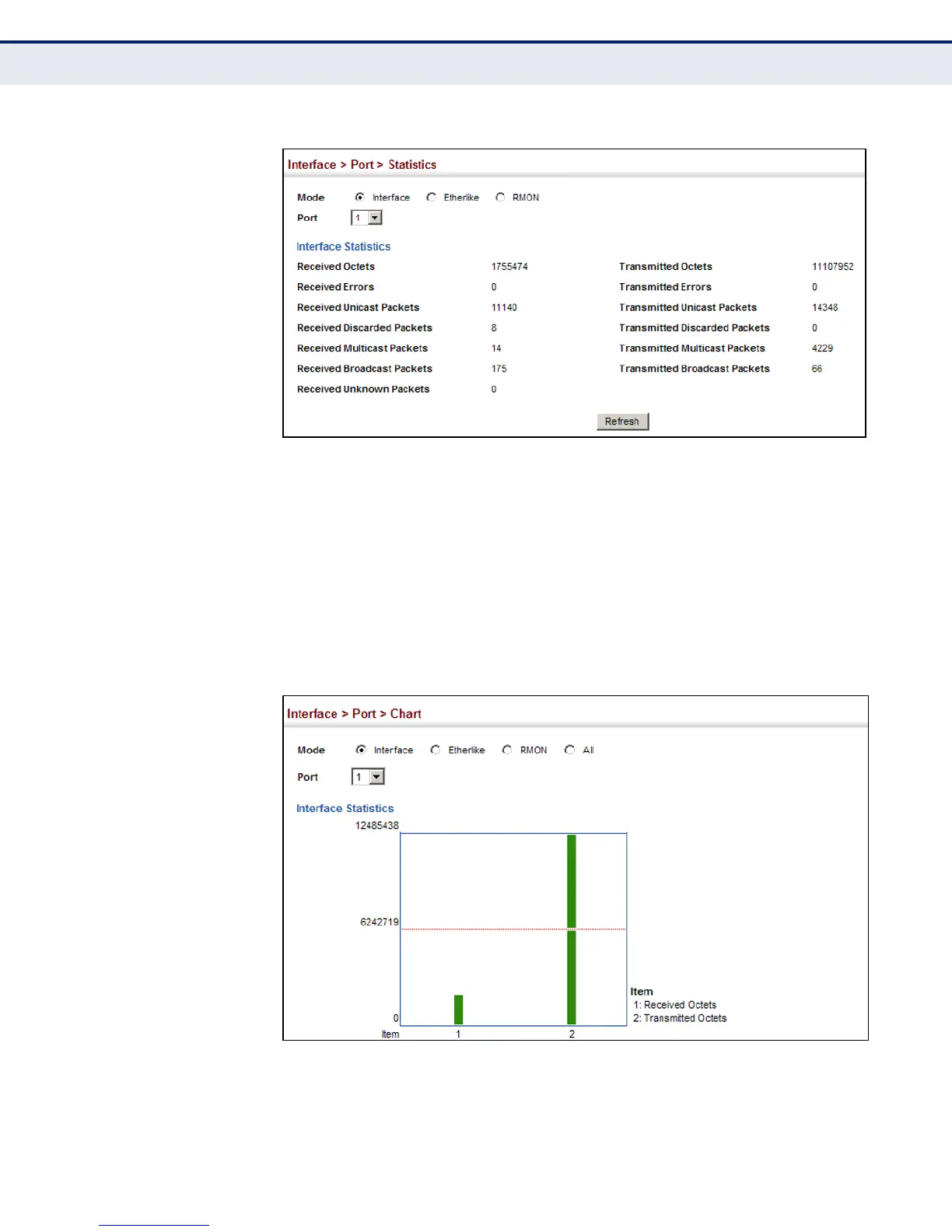

Figure 34: Showing Port Statistics (Table)
To show a chart of port statistics:
1. Click Interface, Port, Chart.
2. Select the statistics mode to display (Interface, Etherlike, RMON or All).
3. If Interface, Etherlike, RMON statistics mode is chosen, select a port
from the drop-down list. If All (ports) statistics mode is chosen, select
the statistics type to display.
Figure 35: Showing Port Statistics (Chart)
