Edge-Core ES3510MA - Page 250

C HAPTER 12 | Quality of Service
Attaching a Policy Map to a Port
– 250 –
WEB INTERFACE
To bind a policy map to a port:
1. Click Traffic, DiffServ.
2. Select Configure Interface from the Step list.
3. Check the box under the Ingress field to enable a policy map for a port.
4. Select a policy map from the scroll-down box.
5. Click Apply.

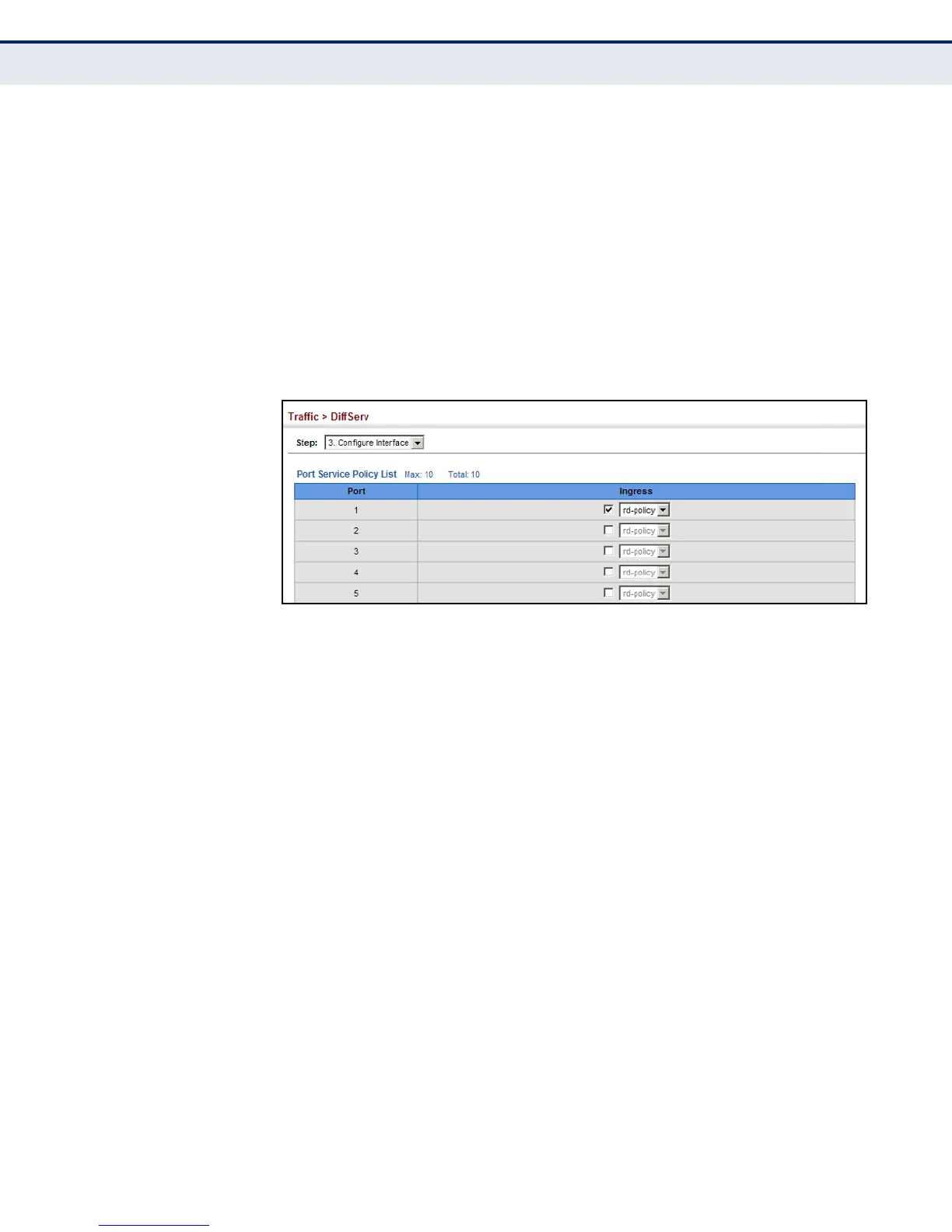

Figure 128: Attaching a Policy Map to a Port
