Edge-Core ES3510MA

C HAPTER 14 | Security Measures
Network Access (MAC Address Authentication)
– 284 –
◆ MAC Address Mask – The filter rule will check for the range of MAC
addresses defined by the MAC bit mask. If you omit the mask, the
system will assign the default mask of an exact match.
(Range: 000000000000 - FFFFFFFFFFFF; Default: FFFFFFFFFFFF)
WEB INTERFACE
To add a MAC address filter for MAC authentication:
1. Click Security, Network Access.
2. Select Configure MAC Filter from the Step list.
3. Select Add from the Action list.
4. Enter a filter ID, MAC address, and optional mask.
5. Click Apply.

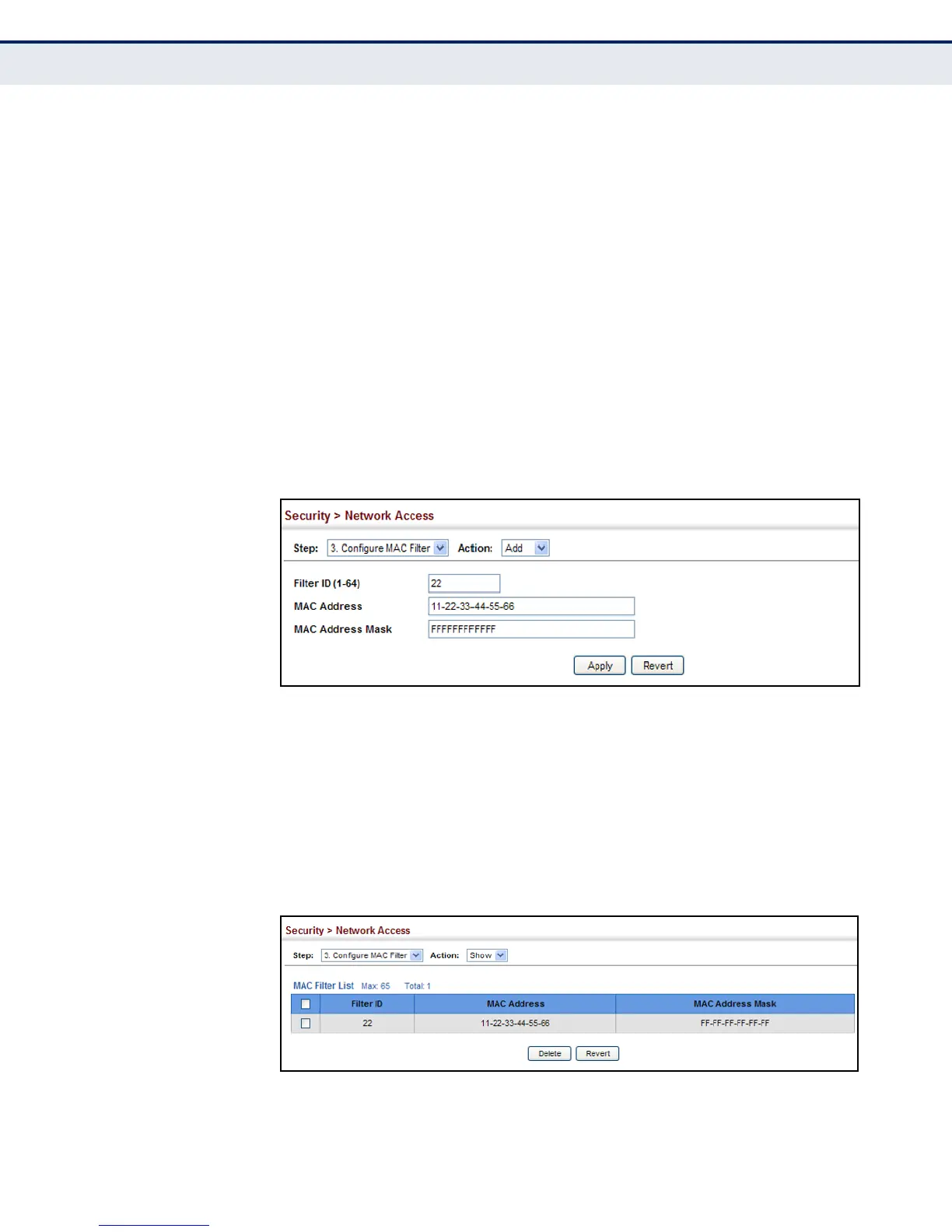

Figure 157: Configuring a MAC Address Filter for Network Access
To show the MAC address filter table for MAC authentication:
1. Click Security, Network Access.
2. Select Configure MAC Filter from the Step list.
3. Select Show from the Action list.
Figure 158: Showing the MAC Address Filter Table for Network Access
