C
HAPTER
14
| Security Measures
Access Control Lists
– 309 –
WEB INTERFACE
To add rules to a MAC ACL:
1. Click Security, ACL.
2. Select Configure ACL from the Step list.
3. Select Add Rule from the Action list.
4. Select MAC from the Type list.
5. Select the name of an ACL from the Name list.
6. Specify the action (i.e., Permit or Deny).
7. Select the address type (Any, Host, or MAC).
8. If you select “Host,” enter a specific address (e.g., 11-22-33-44-55-
66). If you select “MAC,” enter a base address and a hexadecimal bit
mask for an address range.
9. Set any other required criteria, such as VID, Ethernet type, or packet
format.
10. Click Apply.

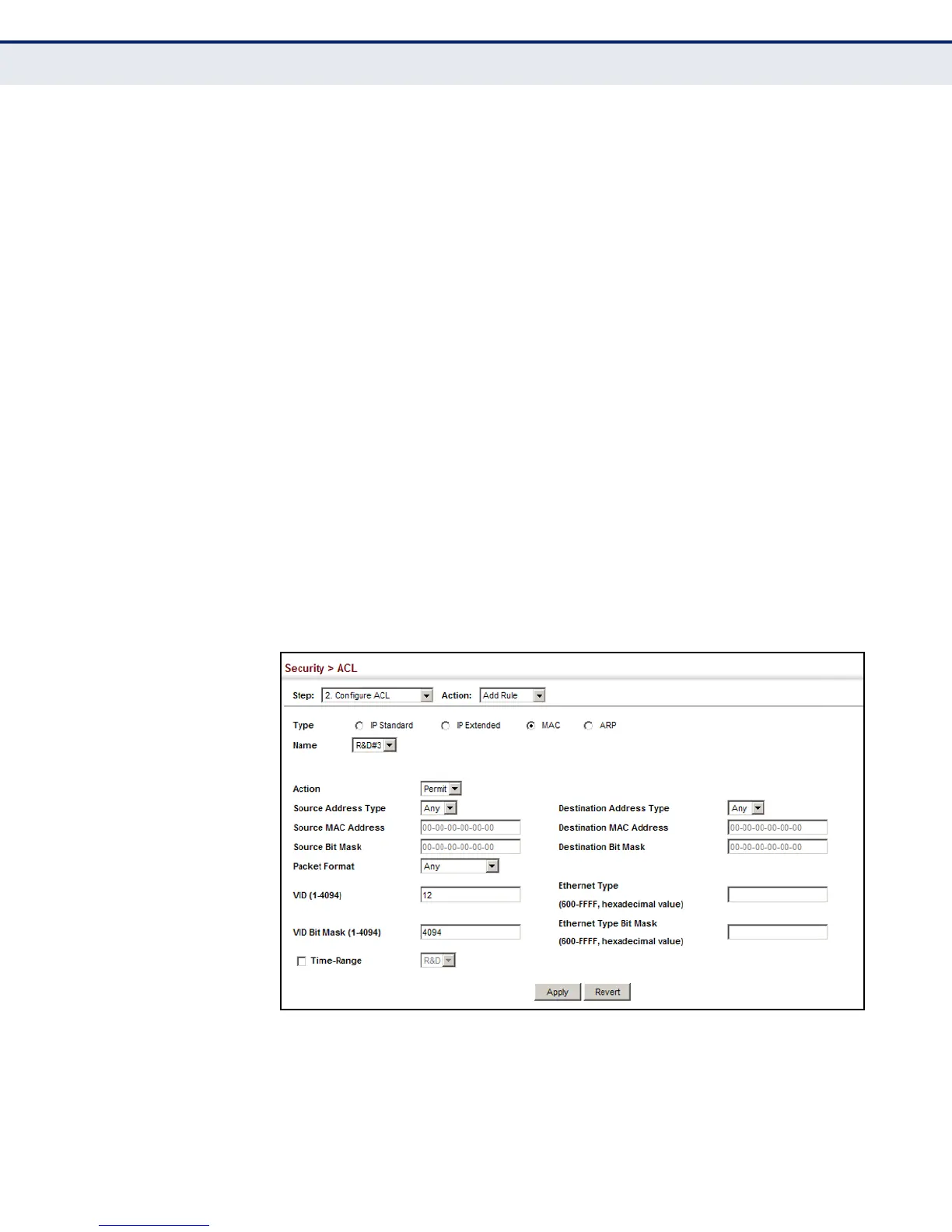

Figure 176: Configuring a MAC ACL
