C
HAPTER
15
| Basic Administration Protocols
Simple Network Management Protocol
– 393 –
WEB INTERFACE
To configure trap managers:
1. Click Administration, SNMP.
2. Select Configure Trap from the Step list.
3. Select Add from the Action list.
4. Fill in the required parameters based on the selected SNMP version.
5. Click Apply

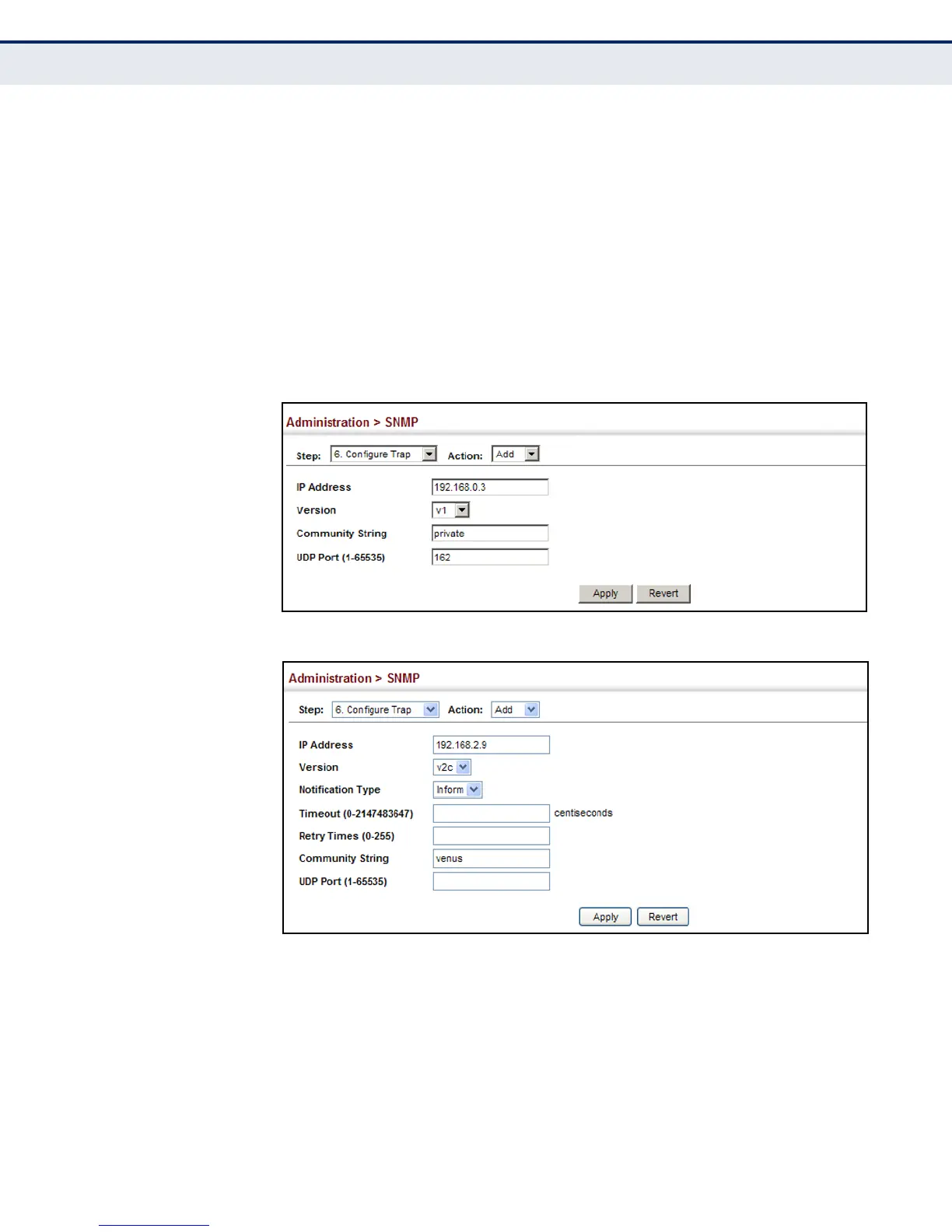

Figure 229: Configuring Trap Managers (SNMPv1)
Figure 230: Configuring Trap Managers (SNMPv2c)
