Specification
(STANDARD)
· If the slip paper is selected:
The dots adjoining each other horizontally cannot be printed.
Only the most upper bit can be printed in the second byte for the vertical
direction.
[Default] The internal character set
[Reference]
ESC %
,
ESC ?
[Example]

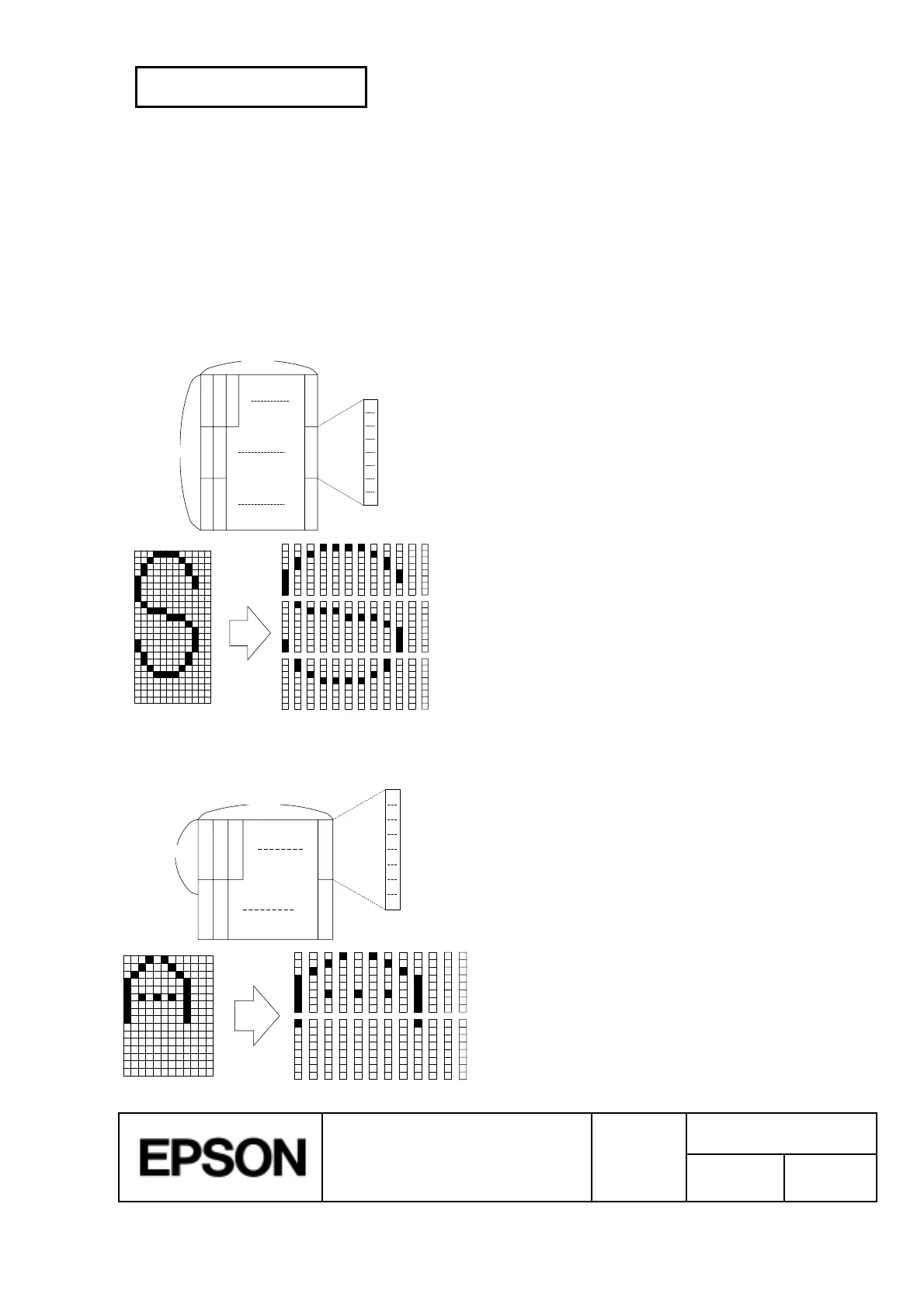

· When receipt paper is selected (font A: 12 ´ 24).
d1= <0F>H d4 = <30>H d7 = <40>H . . . .
d2 = <03>H d5 = <80>H d8 = <40>H . . . .
d3 = <00>H d6 = <00>H d9 = <20>H . . . .
· When slip paper is selected (font A: 9 ´ 9).
d1 = <03>H d4 = <01>H d7 = <02>H . .
d2 = <FF>H d5 = <00>H d8 = <00>H . . .
d3 = <FF>H d6 = <20>H d9 = <10>H . . . .
MSB
d1
LSB
d4 d7 d34
d2 d5 d35
d3 d6 d36
24 dots
12 dots
MSB
d1
LSB
d3 d5 d23
d2 d4 d24
9 dots
12 dots
