1.2.7 Printing and Cutting Positions

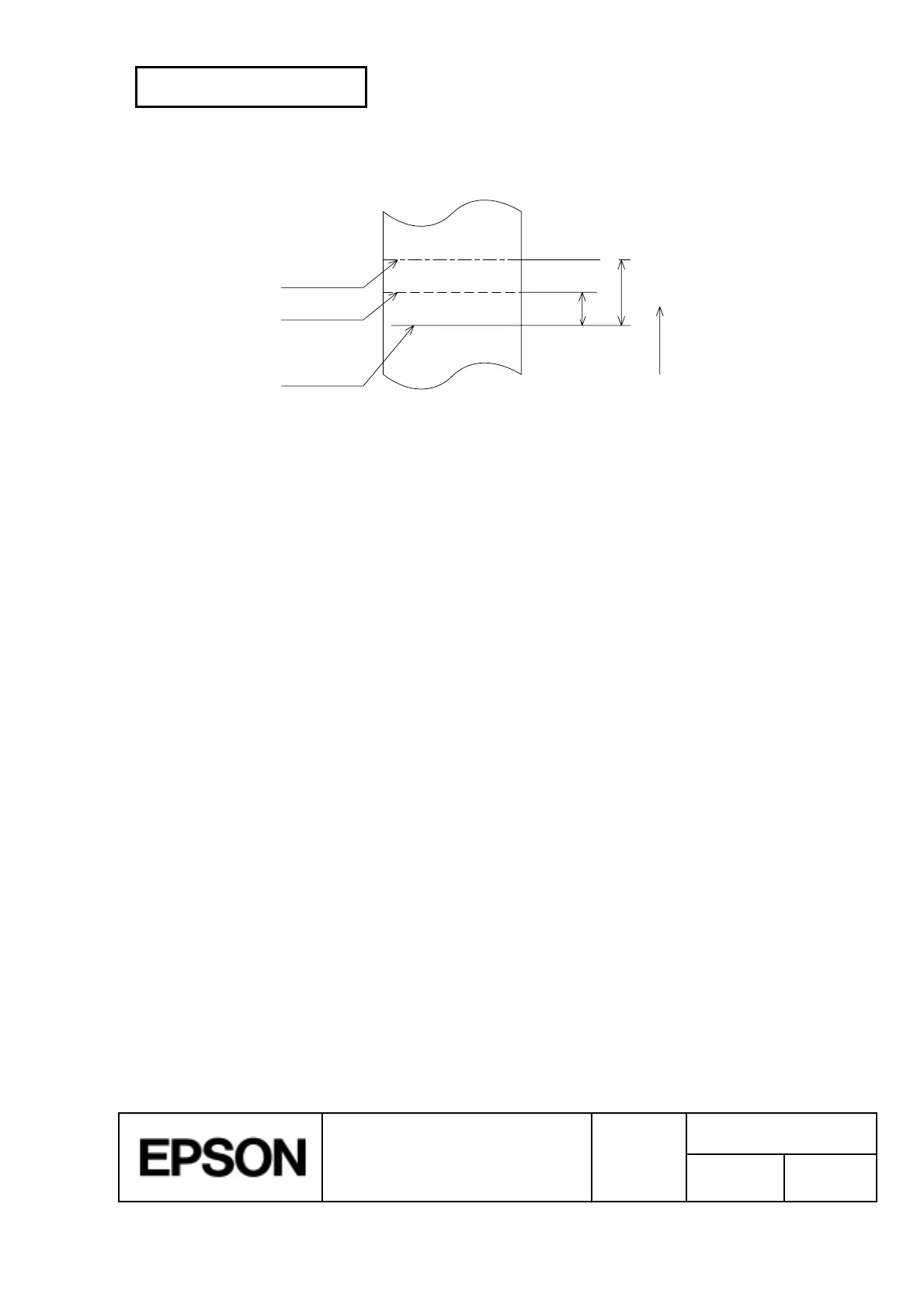

Figure 1.2.3 Printing and Cutting Positions
NOTE:
Numeric values used here are typical values; the values may vary slightly as a result
of paper slack or variations in the paper. Take the notice into account when setting
the cutting position of the auto-cutter.
1.3 General Section (for both receipt and slip)
1.3.1 Internal Buffer
1) Receive buffer selectable as 45 or 4K bytes using the DIP switch.
2) User-defined buffer (both for user-defined characters and user-defined bit images)
Receipt : 12K bytes Slip: 3K bytes
3) Macro buffer 2K bytes
4) NV (non-volatile) bit image buffer 384K bytes
5) User NV (non-volatile) memory 1K byte
Paper feed direction
[ Units: mm (All the numeric values are typical.) ]
Center of the print dotline
Auto-cutter blade position
Manual-cutter position
14.8
26.3
Approx. 29
Approx. 15
