Epson TM-H5000II series User Manual

CONFIDENTIAL
SHEET
38
NO.
SHEET
REVISION
E
TITLE
NEXT
39
TM-H5000
II
IIII
II
series
Specification
(STANDARD)
2.2.3 Drawer Kick-out Connector (Modular Connector)
The pulse specified by
ESC p
or
DLE DC4
is output to this connector. The host can confirm the
status of the input signal by using the
DLE EOT
,
GS r
, or
GS a
(ASB) commands.
1) Pin assignments: Refer to Table 2.2.2
2) Connector model: Printer side: MOLEX 52065-6615 or equivalent
User side: 6-position 6-contact (RJ12 telephone jack)
Table 2.2.2 Drawer Kick-out Connector Pin Assignments
Pin Number Signal Name Direction
1 Frame GND —
2 Drawer Kick-out drive signal 1 Output
3 Drawer open/close signal Input
4 +24 V —
5 Drawer Kick-out drive signal 2 Output
6 Signal GND —
+24 V is output through pin 4 when the power is turned on. However, pin 4 must be used
only for the drawer.

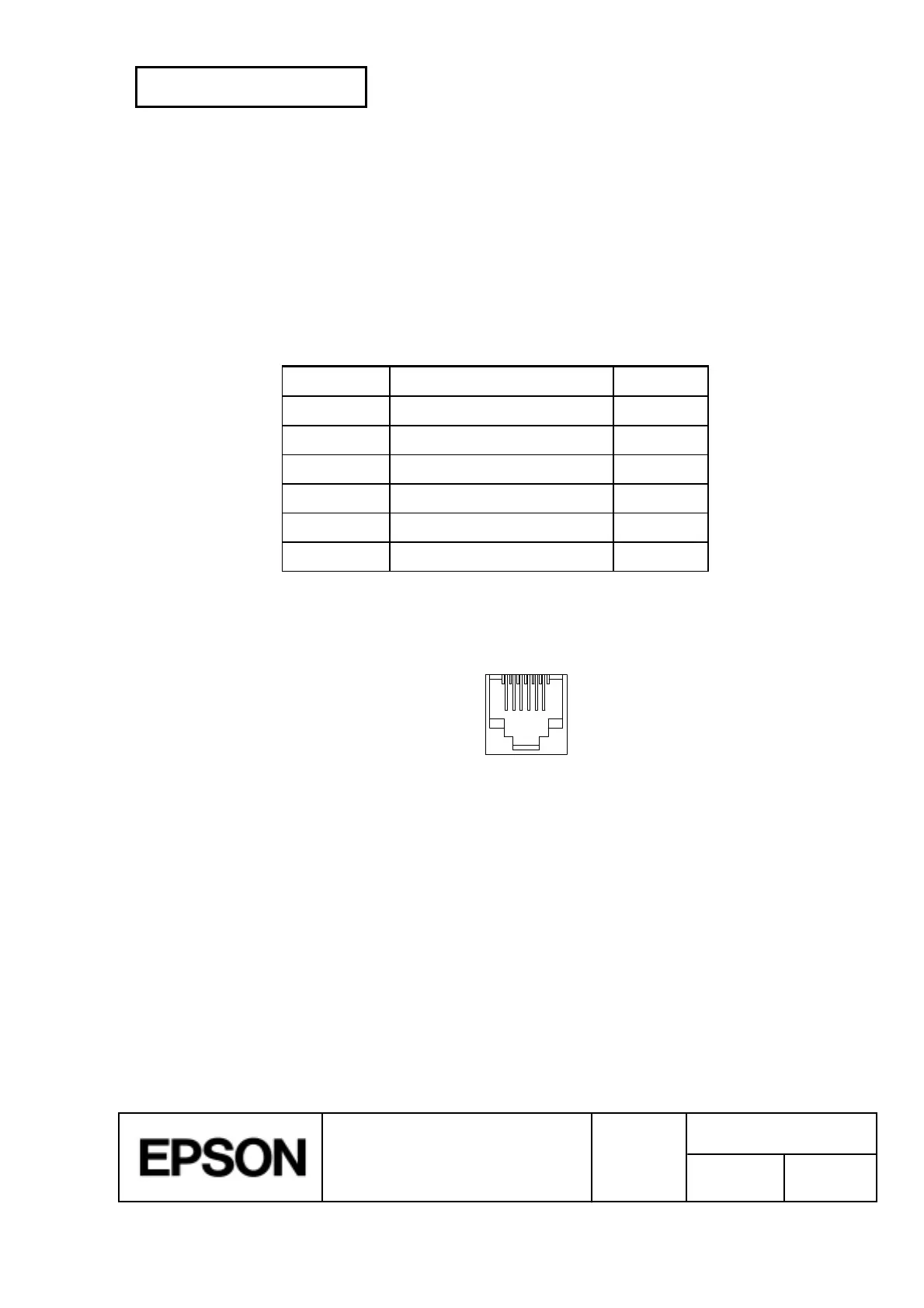

Figure 2.2.4 Drawer Kick-out Connector
3) Drawer kick-out drive signal
Output signal: Output voltage: Approximately 24 V
Output current: 1A or less
CAUTION:
To avoid an overcurrent, the resistance of the drawer kick-out solenoid must be
24 W or more.
Output waveform: Outputs the waveforms in Figure 2.2.5 to the points A and B
in Figure 2.2.6.
t1 (ON time) and t2 (OFF time) are specified by
ESC p
or
DLE DC4
.
.
16
