Epson TM-H5000II series User Manual

CONFIDENTIAL
SHEET
7
NO.
SHEET
REVISION
E
TITLE
TM-H5000
II
IIII
II
series
Specification
(STANDARD)
NEXT
8
[Units: mm (All the numeric values are typical.)]
30.1
8
18.9
38.5
18
39
21.9
1.8
37.2
3.6
Form stopper position
Slip feeding roller
position
TOF sensor
position
Center of the print head
MICR head
Slip side guide
BOF sensor
Paper feed direction

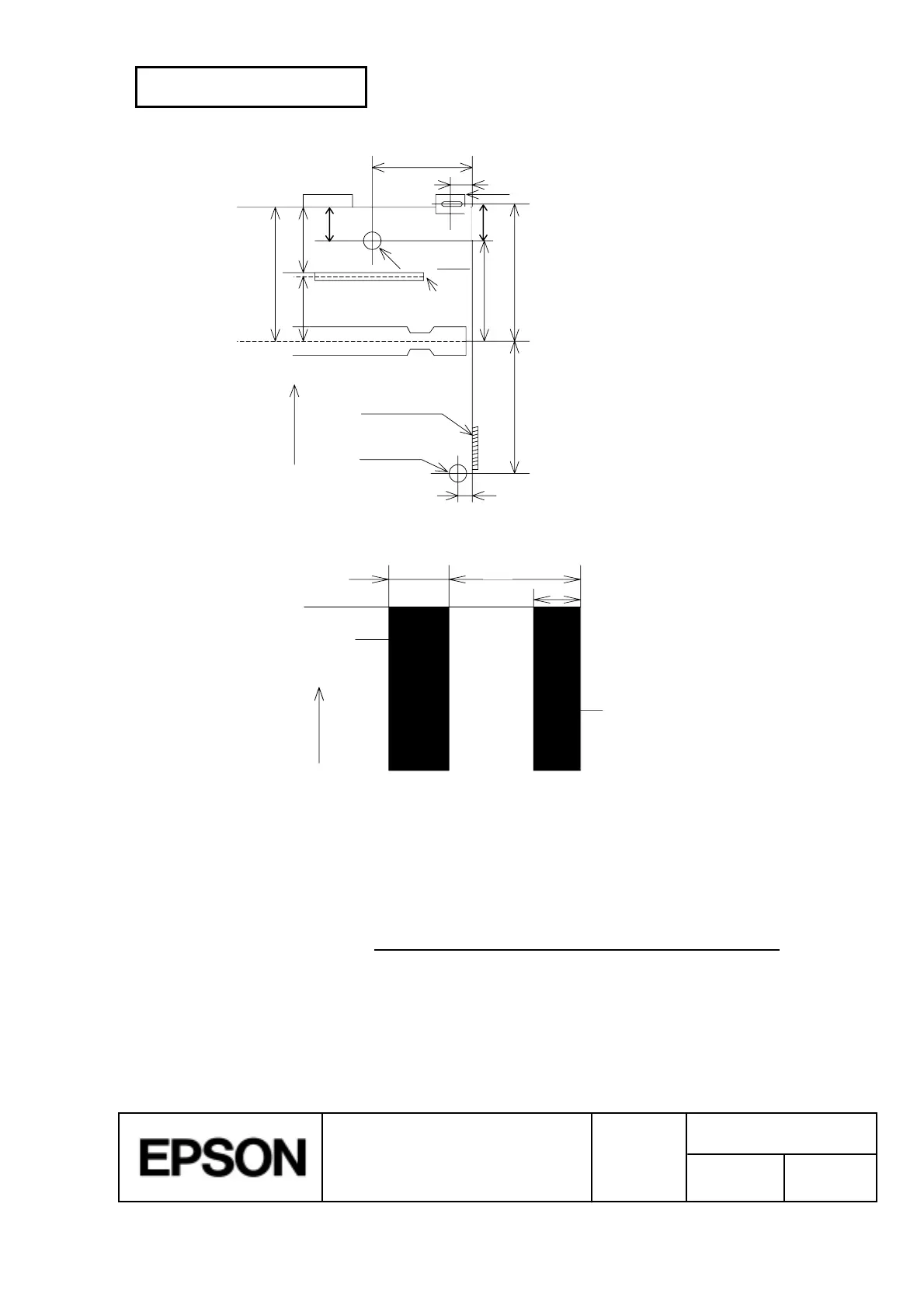

Figure 1.1.4 Slip Sensor Positions
Figure 1.1.5 Paper Holes and Low Reflection Prohibited Area
1.1.6 MICR Reader (when the printer is used with the MICR reader)
1) Reading method: Magnetic bias
2) Recognition rating: 98 % or more (at 25°C)
Recognition rating is defined as follows:
Total number of checks – (number of sheets misread or not identified.)
Recognition rating (%)
=
Total number of checks
´
100
· Check paper used for test is Epson standard check paper.
· Checks must be flat, without curls, folds, or wrinkles.
· The magnet bias method is used for reading.
15 29
10
[ Units: mm (All the numeric values are typical.) ]
Paper feed direction
Area where paper holes are prohibited
and reflection rate for the back of
paper should be 40% or more.
Paper holes and translucence
prohibited area.
24
1.3
31
1.8
