3) Inserting direction and endorsement printing
Insert the check with the surface printed with the magnetic ink downward, following the slip
side guide.
Endorsement printing can be performed. In this case, the print starting position is point A in
the illustration shown below.
• To print endorsements in the specified area (within 38.1 mm [1.5”] from the top), set the
print position for the last line so that it is printed at least 3 mm (0.118”) above the bottom
of the printable area.
"DO NOT SIGN WRITE STAMP BELOW THIS LINE
FOR FINANCIAL INSTITUTION USAGE ONLY"
ENDORSE CHECK HERE :
[Units: mm (All the numeric values are typical.)]
Specified printing area
Inserting direction
38.1

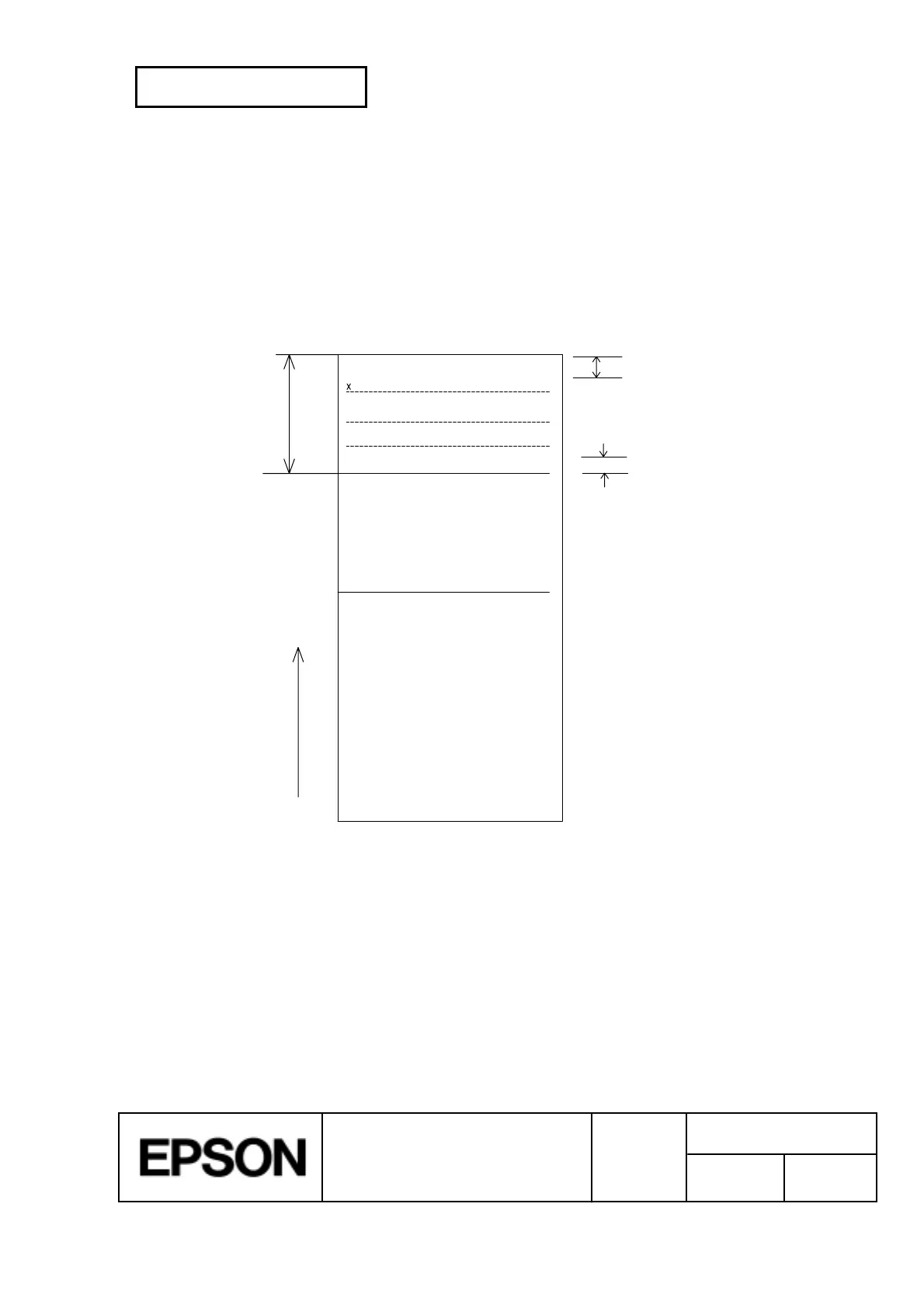

Figure 1.1.6 Endorsement Printing
8.7
A
3
