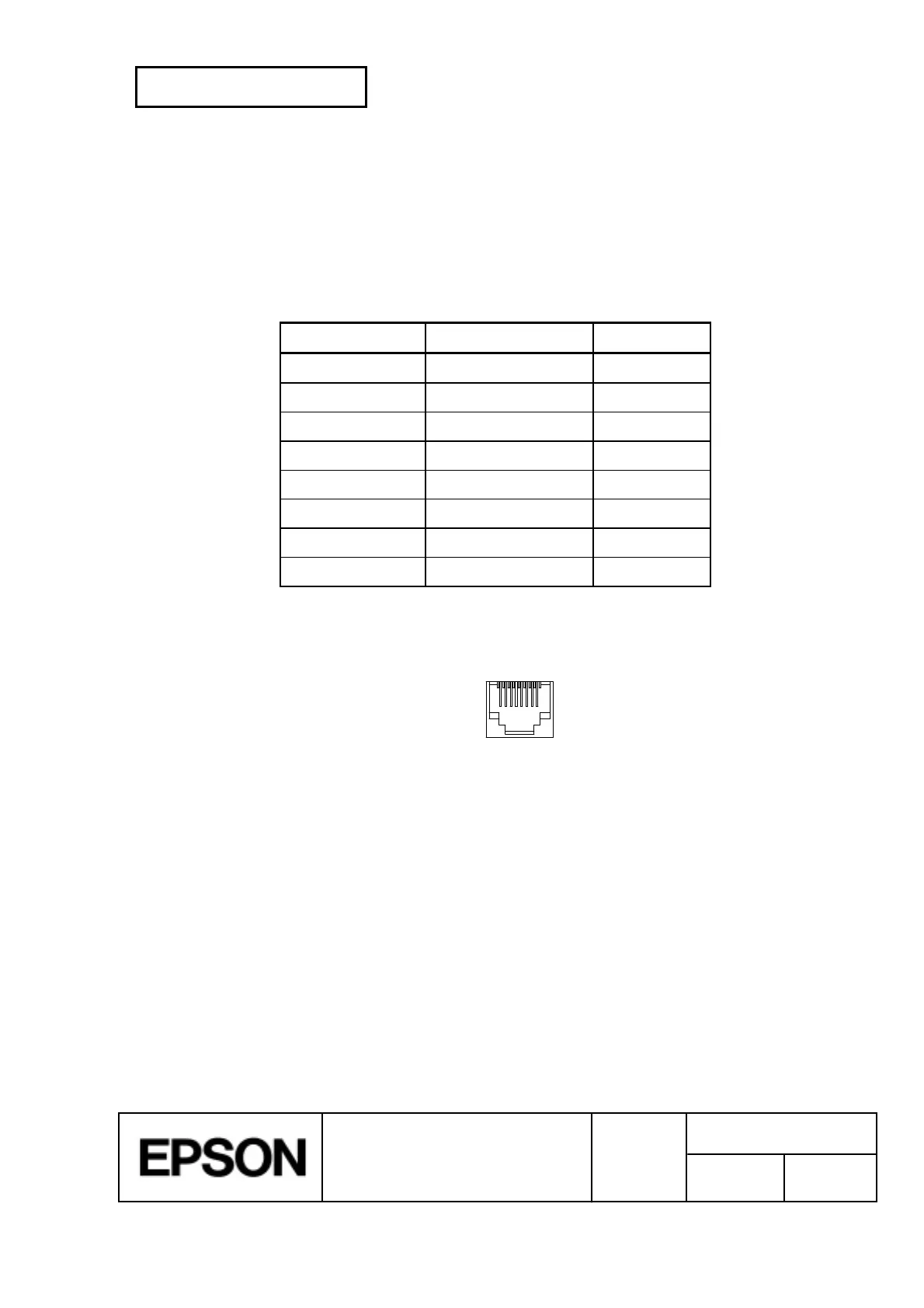

2.2.4 Customer Display Connector (Available only for serial interface model)
1) Model:
Receptacle: MOLEX 52065-8845 or equivalent
2) Pin assignments:
Table 2.2.3 Customer Display Connector Pin Assignments
Pin Number Signal Name Direction
1FG —
2N.C. —
3 TXD Output
4 DTR Output
5 DSR Input
6SG —
7+24 —
8PG —
+24 V is always output through pin 7. The driving capability is 350 mA or less. Be sure not
to use customer displays other than Seiko Epson DM-D series.
Figure 2.2.7 DM-D Connector
