1.2.6 Printable Area
1) Paper roll
The printable area of a paper with width of 79.5 ± 0.5 mm (3.13" ± 0.02") is 72.2 ± 0.2 mm
(2.84" ± 0.008") (512 dots) and the space on the right and left sides are approximately
3.7 ±2 mm (0.15" ± 0.079”).

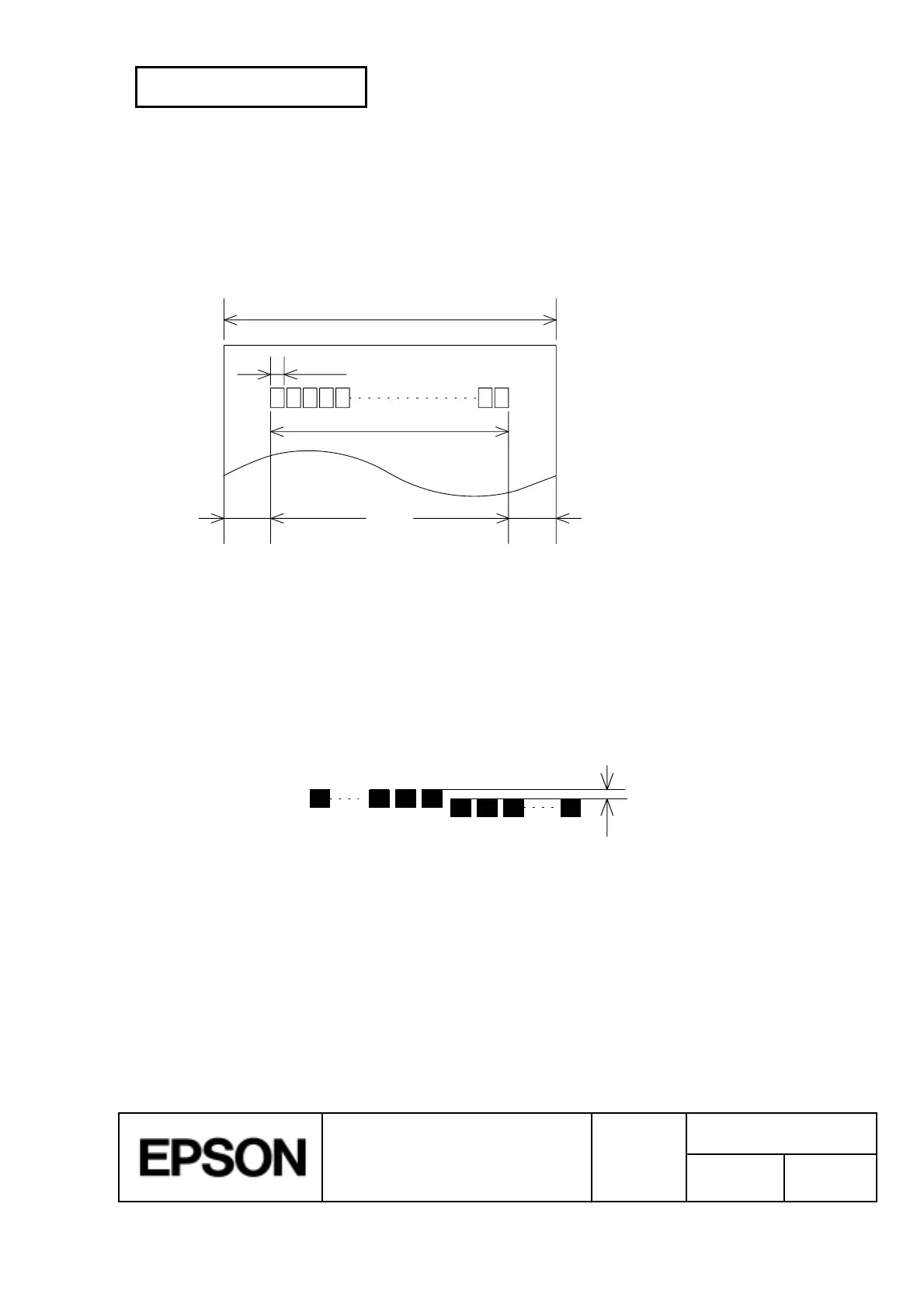

Figure 1.2.1 Paper Roll Printable Area
NOTE:
The print position within the printable area of the thermal elements for dots 257 to 512 is
shifted approximately 0.07 mm (.003") in the paper feed direction from the position for
dots 1 to 256. Be sure not to print a ladder bar code across both printable areas, as this
can cause variations in printing which are difficult to read. However, when the ladder bar
code is printed with level 2 of print density, the difference is only approximately 0.04 ~
0.05 mm (.0015~.0019”).
Figure 1.2.2 Shifting of the Print Position
a = 79.5 ± 0.5 mm (3.13" ± 0.02")
b = 1. 41 mm ± 0.05 mm (.056" ± .002")
c = 72.2 mm ± 0.2 mm (2.84 ± .008")
d = 3.7 ±2 mm (0.15" ± 0.079”).
e = 3.7 ±2 mm (0.15" ± 0.079”).
[All the numeric values are typical.]
a
b
c
de
Approximately 0.07mm (0.0028")
1 256
257 512
