Blinking: Slip removal waiting state / Personal check removal waiting state
(when the printer is used with the MICR reader)
Figure 3.4.3
Blinking: Personal check insertion waiting state (when the printer is used with the
MICR reader)
Figure 3.4.4
3.4.2 Receipt
1) Power (POWER) LED: Green
On: Power is stable.
Off: Power is not stable.
2) Error (ERROR) LED: Red
On: Off line (except during paper feeding using the FEED button and during
test printing.)
Off: Normal condition
Blinking: Error (refer to Section 3.8)
3) Paper roll end (PAPER OUT) LED: Red
On: The paper roll near end or paper end of the receipt is detected.
Off: Paper is loaded (Normal condition)
Blinking: Self-test standby state (refer to Section 3.5.3) or macro standby state
when the macro execution command is used.
ERROR
PAPER
OUT
POWER
FEED

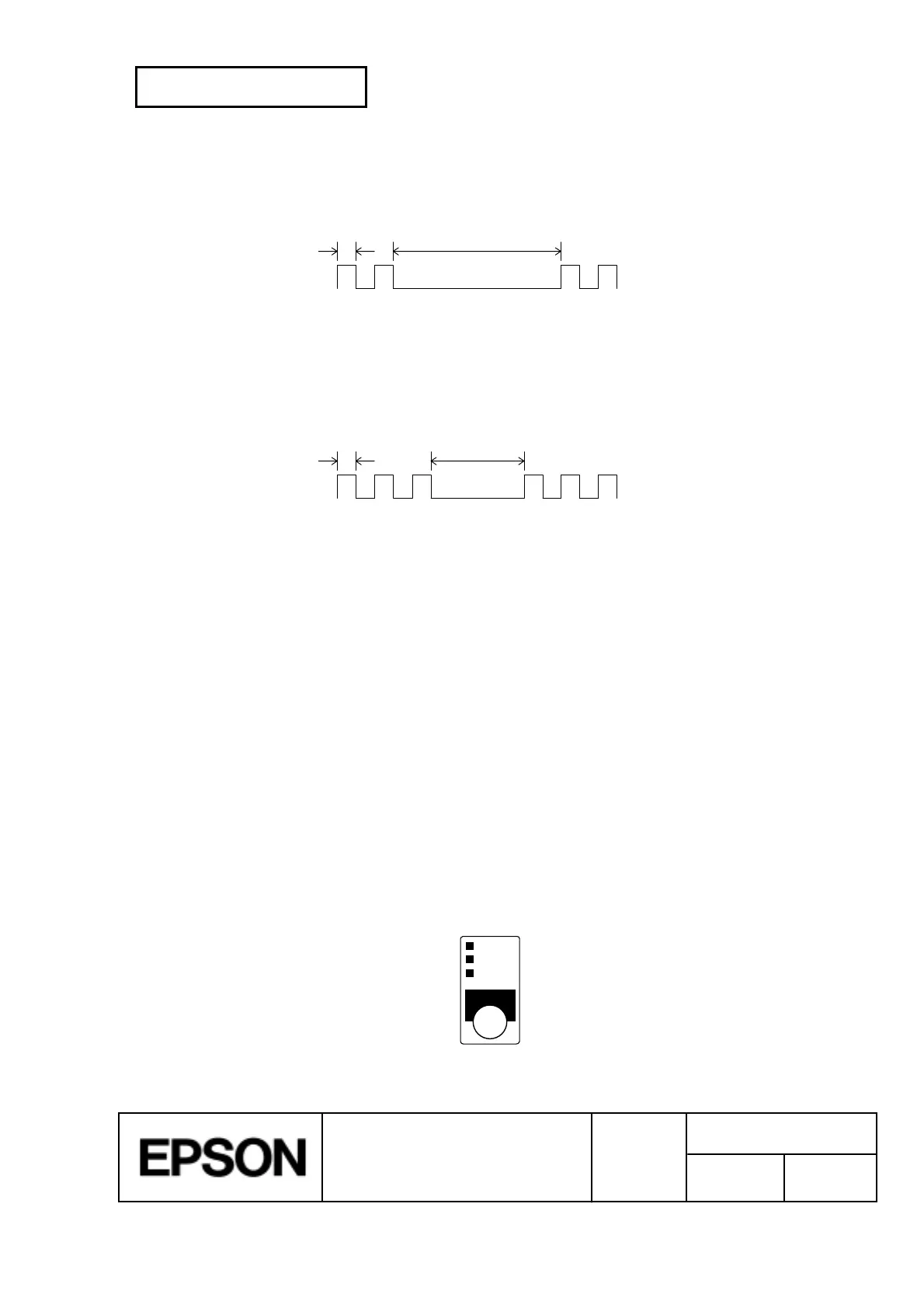

Figure 3.4.5 Panel Switches and Indicators
[Unit: msec]
Approximately 2080Approximately 160
[Unit: msec]
Approximately 1760Approximately 160
